Sweet Mfg Chrome Double U-Joint, 3/4 Inch DD to 1 Inch DD, GM

SAME DAY SHIPPING! Order within the next 2 hours 58 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Steel
Overall Length:
5.62
Sold in Quantity:
Each
Finish:
Chrome
Outside Diameter:
1.54
End #1:
3/4 inch DD
MFG. Part #:
401-91920
Set Screw Included:
Yes
Max Operating Angle:
70

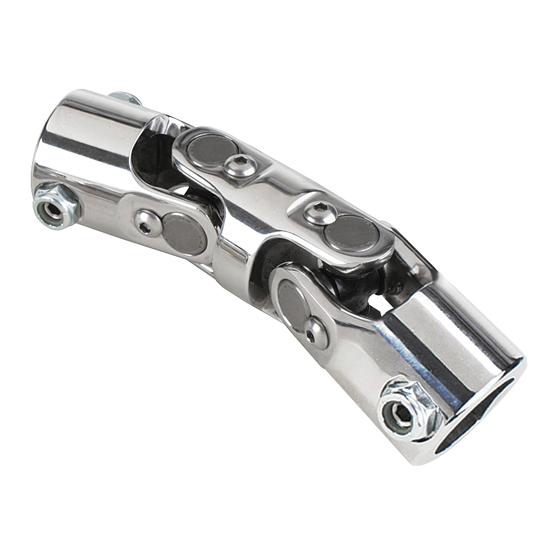

Sweet Mfg Chrome Double U-Joint, 3/4 Inch DD to 1 Inch DD, GM

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Item Details

3/4" Double D to 1" Double D
GM

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

can you tell me the overall length please, thank you

May 02, 2011

can you tell me the overall length please, thank you

Answers

May 10, 2011
Seth
These are 5-3/4" Long.
Page 1 of 1
