Sweet Mfg Chrome Double U-Joint, 9/16 Inch-26 Spline to 3/4 Inch DD

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Overall Length:
5.64
Sold in Quantity:
Each
Finish:
Chrome
Outside Diameter:
1.48
End #1:
3/4 inch DD
End #2:
9/16"-26 spline
Spline OD:
.600
Spline Count:
26
Spline End:
9/16"-26
MFG. Part #:
401-91319
Set Screw Included:
Yes
Max Operating Angle:
70

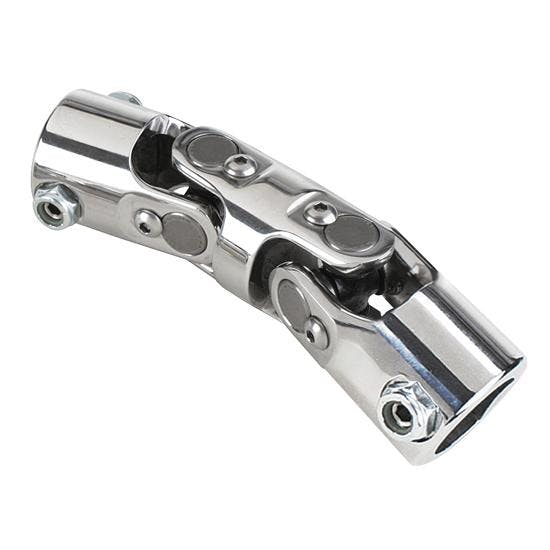

Sweet Mfg Chrome Double U-Joint, 9/16 Inch-26 Spline to 3/4 Inch DD
Sweet Mfg Chrome Double U-Joint, 9/16 Inch-26 Spline to 3/4 Inch DD

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1

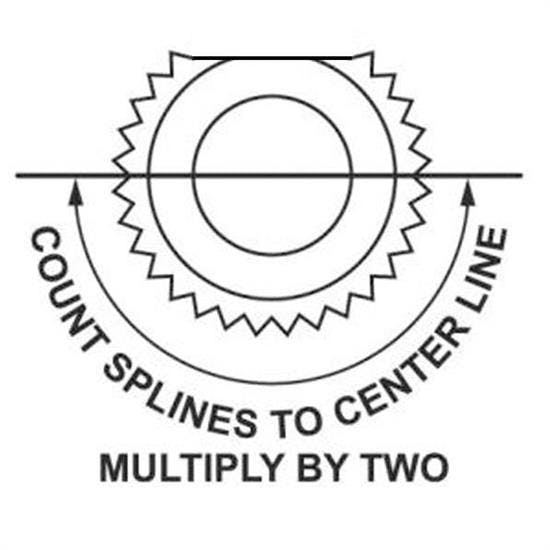

Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the u-joint for your specific application.

Item Details

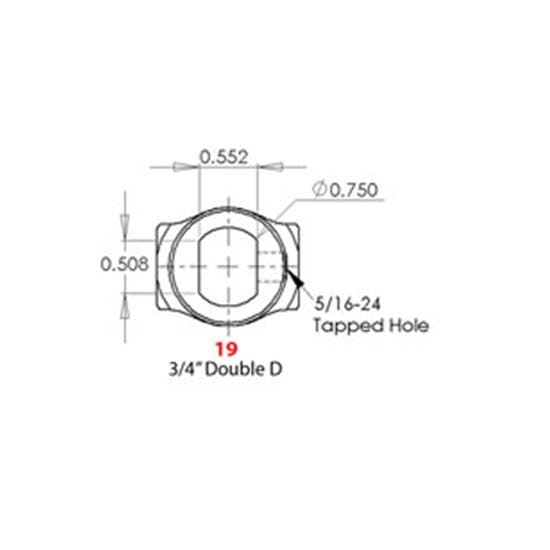

9/16"-26 Spline to 3/4" Double D

You may also be interested in:

Sweet Mfg U-Joint, 9/16 In 26-Spline to 3/4 Round, Mustang II Manual
SKU-91032237


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints have 3/4 weld-on ends.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg. Double Steering U-Joint, 9/16In-26 Spline to 3-4 In DD, MII
SKU-9103247


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.  5-5/8" overall length.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Steering Shaft Aluminum Heim Joint Rod Ends, 3/4-16 RH Male, .757 Hole
SKU-1750759
                        3/4" heim for steering shaft.  Has .757 ball hole. Slides right over standard 3/4" steering shaft. 3/4" NF right hand threads. Jam nut sold separately.

Polished Stainless Steel 3/4 O.D. Double D Shaft
SKU-91032377


Steering shafts that are just plain looking look kind of silly with those shiny stainless steel U-joints. Our polished, stainless steel, double D steering shaft would be more compatible. We offer steering shafts in 18", 22", and 36" cut to fit lengths.



Unisteer 8050230 Steering U-Joint, 9/16 Inch-26 Spline to 3/4 Inch DD
SKU-910230


These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation. These universal joints are 3-3/4 inch in length and have a 1.650 inch outside diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length

This size of spline works with Unisteer's Cross Steer Rack & Pinion, Prostock Rack, and Manual Camaro Rack & Pinion and is also the size of manual Mustang Style Rack & Pinions.

Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Sweet Mfg Chrome U-Joint, 9/16-26 Spline, 3/4 DD, Mustang II Manual
SKU-9106131


Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints feature a double D end to make use of the double D shaft.

  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
  • 9/16"-26 Spline
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Chrome Double U-Joint, 3/4 Inch DD to 1 Inch DD, GM
SKU-9109120


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg. 401-91919 Chrome Double U-Joint, 3/4 Inch DD to 3/4 Inch DD
SKU-9109191


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-5/8" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Double U-Joint, 3/4 In DD to 1 In DD, IDIDIT/Flaming River
SKU-9109192


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Chrome Double U-Joint, 5/8 Inch-36 Spline to 3/4 Inch DD
SKU-9109193


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Chrome Double U-Joint, 3/4 Inch-30 Spline to 3/4 Inch DD
SKU-9109151


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Chrome Double U-Joint, 1 Inch-48 Spline to 3/4 Inch DD
SKU-9109181


Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long

Steering U-Joints and Couplers Application Chart (GIF)

Steering Box/Rack/Spline Chart (Link)

Spline Size (Link)

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Steering Shaft, Fully Machined Double D Shaft, Raw 22 Inch
SKU-91001850


 Speedway now offers a steering shaft that is 3/4" DD machined the entire length of the shaft. This makes it easier to set up your steering. The carbon steel steering shaft come in 22".



Steering Shaft, Fully Machined Double D Shaft, Raw 36 Inch
SKU-91001851


Speedway now offers a steering shaft which is 3/4" DD machined the entire length of the steering shaft. This makes it easier to set up your steering.The carbon steel steering shaft come in 36".



Flat Heim Joint Rod End Support Bracket
SKU-91000256
                        Overall length of 3 1/2 inches long.  Offered with a 3/4 clearances hole for steering heim with a slotted adjustment of 1 7/8 inch long. Bracket is 3/16 thick steel.

Steel Heim Joint Rod Ends for Steering Shaft, 3/4-16 RH Male .757 Hole
SKU-1750757
                        3/4" heim for steering shaft.  Has .757 ball hole. Slides right over standard 3/4" steering shaft. 3/4" NF right hand threads. Jam nut sold separately.


Firewall Mount Steering Flange Sleeve, 3/4 Inch Shaft
SKU-91032375-750
                        This firewall mount allows up to 30° of mis-alignment. Includes ball with two pressed steel flanges with 5/16" square mounting holes.

Choose 3/4" (750) or 1" (1000) shaft size.

91032375-1000

  • Height: .74"
  • Length: 3.00"
  • Width: 1.90"
  • Mount C to C: 2.26"
91032375-750
  • Height: .87"
  • Length: 3.00"
  • Width: 1.90"
  • Mount C to C: 2.26"
Firewall Mount Steering Shaft Bearing, 3/4 Inch Shaft Size
SKU-910102


These bearings have a .757" ID to slip over your 3/4" steering shaft and are in a lightweight aluminum bracket to allow easy installation of your firewall.

From center of bearing to center of mounting hole is 1.456" or approximately 1-1/2". This produces about a 3" mounting circle for the 3 mounting holes.
