Sweet Mfg Chrome Double U-Joint, 5/8 Inch-36 Spline to 3/4 Inch DD

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Chrome
Spline Count:
36
End #1:
3/4 inch DD
End #2:
0.620"-36 Spline
MFG. Part #:
401-91930
Set Screw Included:
Yes
Overall Length:
5.75
Spline OD:
.625
Max Operating Angle:
70

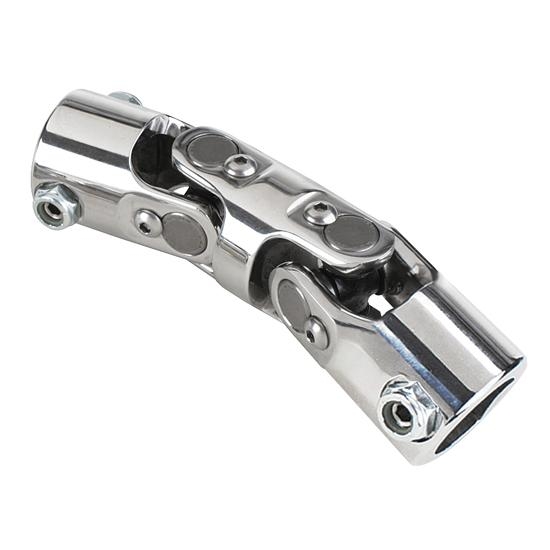

Sweet Mfg Chrome Double U-Joint, 5/8 Inch-36 Spline to 3/4 Inch DD

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints.

  • These are 5-3/4" Long
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Item Details

5/8"-36 Spline to 3/4" Double D

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the u-joint for your specific application.
