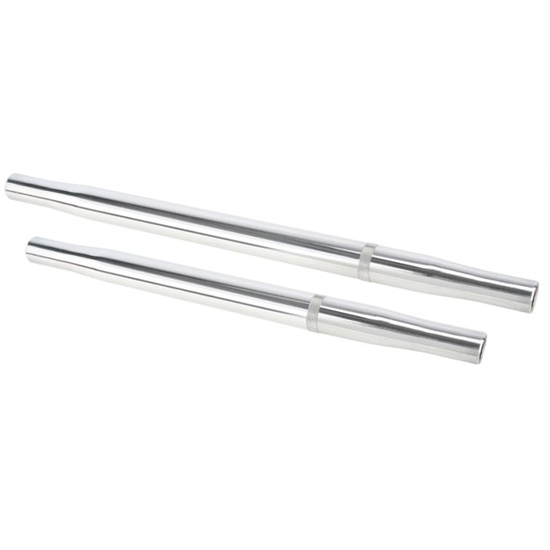

Swedged 6061 Aluminum Radius Rod for 5/8 Inch Heim

Price: $10.99 - $12.99
Item #:
910354
Swedged 6061 Aluminum Radius Rod for 5/8 Inch Heim
Click image to enlarge Click image to enlarge
No video at this time.

Swedged 6061 aluminum steering, panhard and radius rods. 1" O.D., 5/8" NF threads. LH threads on one end. RH threads on the other end.



  • 910354-16
    Overall Length
    16.000"
    Outside Diameter
    1.000"
    Thread Pitch
    5/8"-18 RH Female
    Thread Pitch (2)
    5/8"-18 LH Female
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 910354-19
    Overall Length
    19.000"
    Outside Diameter
    1.000"
    Thread Pitch
    5/8"-18 RH Female
    Thread Pitch (2)
    5/8"-18 LH Female
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 910354-20
    Overall Length
    20.000"
    Outside Diameter
    1.000"
    Thread Pitch
    5/8"-18 RH Female
    Thread Pitch (2)
    5/8"-18 LH Female
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 910354-21
    Overall Length
    21.000"
    Outside Diameter
    1.000"
    Thread Pitch
    5/8"-18 RH Female
    Thread Pitch (2)
    5/8"-18 LH Female
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 910354-21.5
    Overall Length
    21.500" (21 1/2")
    Outside Diameter
    1.000"
    Thread Pitch
    5/8"-18 RH Female
    Thread Pitch (2)
    5/8"-18 LH Female
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 910354-22
    Overall Length
    22.000"
    Outside Diameter
    1.000"
    Thread Pitch
    5/8"-18 RH Female
    Thread Pitch (2)
    5/8"-18 LH Female
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 910354-23
    Overall Length
    23.000"
    Outside Diameter
    1.000"
    Thread Pitch
    5/8"-18 RH Female
    Thread Pitch (2)
    5/8"-18 LH Female
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
  • 910354-23.5
    Overall Length
    23.500" (23 1/2")
    Outside Diameter
    1.000"
    Thread Pitch
    5/8"-18 RH Female
    Thread Pitch (2)
    5/8"-18 LH Female
    Material Type
    Aluminum
    Finish
    Polished
    Sold in Quantity
    Each
Tech Tip: When assembling a tube, each heim end adds approximately 1.5" to the overall length (assuming the heim is screwed into the tube half way.) If you have a heim on each end of the tube, the tube will be approximately three inches longer overall.
