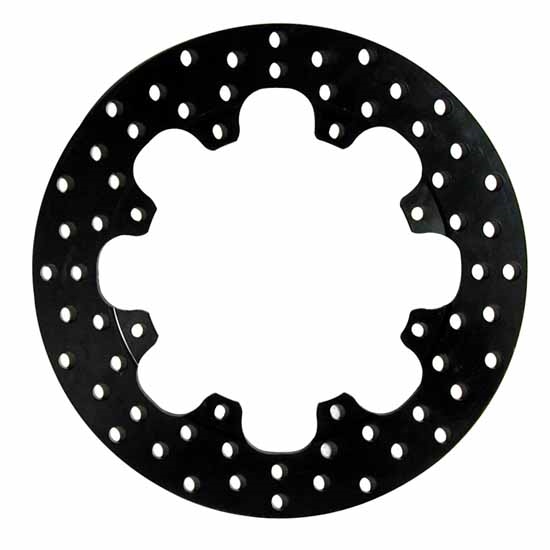

Wilwood 160-0525 Superlite Drilled Rotor, 12.00 Inch x .35 Inch

SAME DAY SHIPPING! Order within the next 11 hours 5 minutes and receive same day shipping

Specs
Material Type:
Steel
Weight:
5.00
Sold in Quantity:
Each
Finish:
Black E-Coat
Rotor Diameter:
12.00
MFG. Part #:
160-0525
Rotor Thickness:
0.35
Rotor Construction:
Solid
Rotor Hat Bolt Pattern:
8 x 7.00"
Garage Sale:
No
Rotor Location:
Rear
Rotor Shape:
Round
Drilled:
Yes
Slotted:
No
Wilwood 160-0525 Superlite Drilled Rotor, 12.00 Inch x .35 Inch
Wilwood 160-0525 Superlite Drilled Rotor, 12.00 Inch x .35 Inch

Click image to enlarge

Speeday Motors Logo
X
Wilwood 160-0525 Superlite Drilled Rotor, 12.00 Inch x .35 Inch

Details

Reviews

Q & A

What's in the Box

Wilwood Superlite Drilled Brake Rotor, 12.00 Inch x .35 Inch, 8 on 7 Thru

Drilled Rotors Application Chart

Notes

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Specs

  • Thickness: .35"
  • Outside diameter: 12.00"
  • # Holes: 8
  • Bolt Circle: 7.00"
  • Thread: Thru
  • Weight: 5.0 lbs

Click Here for Rotor Dimensions Diagram
