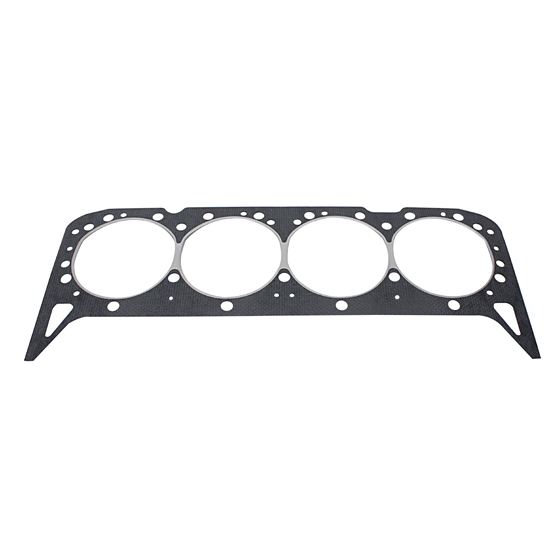

Speedway Small Block Chevy 283-350 Head Gaskets, 4.0 Inch Bore

SAME DAY SHIPPING! Order within the next 10 hours 45 minutes and receive same day shipping

Specs
Sold in Quantity:
Each
Material Type:
Gasket Material
Garage Sale:
No
Overall Thickness:
.065
Gasket Bore:
4.090
Notes
Not for use with 400 block. 4.090" is the MAXIMUM bore size.
Speedway Small Block Chevy 283-350 Head Gaskets, 4.0 Inch Bore

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Speedway Small Block Chevy (SBC) composite head gaskets use premium materials to ensure a positive seal on any race or street engine.

Sold as each.

Item Details

4.0" bore (.065" thick)

Customer Reviews

Rated 5 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Camaro man
Verified Purchaser
Omaha Ne

Single gasket

July 31, 2015
Decent quality for the price just remember to order two. They are not sold as a set
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

horrible
Verified Purchaser

just what we needed

April 01, 2015
needed lower the compression on our sbc. these were just the ticket.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

RANDY56
Verified Purchaser
Roseville, CA, USA

Excellent value product.

August 29, 2013
Had a slight issue with one of the gaskets not being stamped correctly but Speedway Motors made it a non issue with their Excellent customer service.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

5 questions : 5 answers

1 answers

compatible with fast burn vortec type heads?

mikey17
wi
January 03, 2015

compatible with fast burn vortec type heads?

Answers

January 05, 2015
EricM
These gaskets were designed for use on the older heads but we have not had any reported issues with these on the later model Vortec heads either.
1 answers

Will these fit a 350 chevy bored .060 over?

Trouble722
September 10, 2013

Will these fit a 350 chevy bored .060 over?

Answers

September 11, 2013
Jason
Yes, this SuperSeal gasket has a bore of 4.090". A standard 350 has a 4.000" bore. This gasket is not for use with 400 blocks.
1 answers

what is the compressed thickness?

milesw35
September 06, 2013

what is the compressed thickness?

Answers

September 06, 2013
Jason
The compressed thickness of the SuperSeal small block chevy head gasket is .063".
1 answers

are the superseal gaskets coated with anything like the teflon on the felpros ,do they reqiure re torqueing and are the steel shim gaskets embossed?

DJG
van nuys ca
April 18, 2011

are the superseal gaskets coated with anything like the teflon on the felpros ,do they reqiure re torqueing and are the steel shim gaskets embossed?

Answers

April 19, 2011
John H.
The shim style gaskets are typically an embossed item, PN # 91010226 is .024 thickness. The PN # 5501130 is .030 thickness.
1 answers

will these work on aluminum heads

wallie
kalamazoo mi 49009
May 17, 2015

will these work on aluminum heads

Answers

May 18, 2015
Eric
Expert
Yes these head gaskets will work fine on aluminum heads.
Page 1 of 1

You may also be interested in:

Speedway 1955-76 Small Block Chevy Head Gasket Set
(Part #5501130)


Speedway Small Block Chevy (SBC) composite head gaskets use premium materials to ensure a positive seal on any race or street engine. This gasket is sold in pairs.

  • Sold in Pairs
  • 4.0" bore steel shim (.016")
  • Small Block Chevy
  • 1957-1976 Only

NOTE: Only fits 1957-1976 Chevy blocks and heads (they will leak at the bottom of later heads). Will NOT fit 1996-1999 GM "Vortec" 906 heads and 062 heads, or RHS Vortec heads.

Fel-Pro P1003 S/B Chevy 265-400 Steel Ring Head Gasket 4.166 Inch Bore
(Part #3441003)


These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.

  • Gaskets are sold each
  • Pre-flattened steel wire
  • Nominal compression thickness: .041"
  • Compressed volume: 9.1 cc
  • 4.166" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer
  • When using aluminum heads, we recommend gaskets with soft copper wire rings (such as 344-1010). This ensures that the aluminum head is not "scarred" by the combustion seal. Shim style 344-1094 will also work well with aluminum heads.

Head Gasket Application (JPEG)

Speedy Tip for Proper Head Gasket Seal (GIF)

Item Details

4.166" bore, .041" thick, 9.1 cc volume
Fel-Pro P1010 S/B Chevy 265-400 Copper Ring Head Gasket 4.166 In. Bore
(Part #3441010)


These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.

  • Gaskets are sold each
  • Pre-flattened copper wire
  • Nominal compression thickness: .039"
  • Compressed volume: 8.9 cc
  • Recommended for 86-91 Corvette aluminum heads. Max 4.155" bore.
  • 4.166" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer.
  • When using aluminum heads, we recommend gaskets with soft copper wire rings (such as 344-1010). This ensures that the aluminum head is not "scarred" by the combustion seal. Shim style 344-1094 will also work well with aluminum heads.

Head Gasket Application (JPEG)

Speedy Tip for Proper Head Gasket Seal (GIF)

Item Details

4.166" bore, .039" thick, 8.9 cc volume
Speedway Small Block Chevy 305 Head Gaskets, 3.736 Inch Bore
(Part #91010203)


Speedway Small Block Chevy (SBC) composite head gaskets use premium materials to ensure a positive seal on any race or street engine.

Sold as each.

Item Details

3.736" bore (.038)
Speedway S/B Chevy 400 Head Gaskets, 4.125 In Bore w/Steam Holes
(Part #91010202)


Speedway Small Block Chevy (SBC) composite head gaskets use premium materials to ensure a positive seal on any race or street engine.

Sold as each.

Item Details

4.125" bore with steam holes (.038)
Speedway S/B Chevy 400 Head Gaskets, 4.125 Bore w/o Steam Holes
(Part #91010201)


Speedway Small Block Chevy (SBC) composite head gaskets use premium materials to ensure a positive seal on any race or street engine.

  • 4.125" bore without steam holes (.045)
  • Sold Individually
Speedway Small Block Chevy 400 Head Gaskets, 4.165 Inch Bore
(Part #91010226)


Speedway Small Block Chevy (SBC) composite head gaskets use premium materials to ensure a positive seal on any race or street engine.

Sold as each.

Item Details

4.165" bore steel shim (.024)
