Super Glide Quarter Elliptical Springs

SAME DAY SHIPPING! Order within the next 6 hours 38 minutes and receive same day shipping

Specs
Sold in Quantity:
Each
Garage Sale:
No
Super Glide    Quarter Elliptical Springs

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

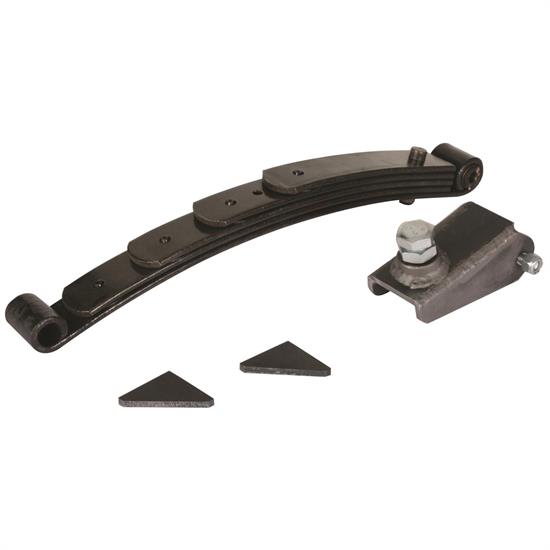

Super Glide™ quarter elliptic springs feature a five leaf, 1-3/4" wide spring design. The ends of the spring leaves of a Super Glide™ spring have a unique nylon insert. This insert works as a dry lubricant, significantly reducing leaf-to-leaf friction. This reduction of friction lets the spring move more easily, thereby giving a smoother, quieter ride.

  • 1-3/4" wide
  • 20" long
  • Sold each, two required

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Number1carguy
Verified Purchaser
Louisville, KY, USA
Product Rating

Surprising strength with a smooth ride.

October 15, 2014
This was my first encounter with quarter elliptical springs, and I was pleasantly surprised at the ease of installation and the amount of weight that they can handle. Nice smooth action in the spring makes for a really nice ride.
Cons:
  • should come with bushings in both ends.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91033125

Product Q&A

7 questions : 7 answers

1 answers

if springs are to sriff could leafs be removed to soften them? Looking at these springs for a light weight street rod with a mid mounted 2.3 4 cylinder.Vehicle overall weight is 1700 lbs.don't have room for coil overs but think I could bet these mounted below frame rails and maintain ride height but would be concerned about a harsh ride

EmptyPocketsGarage
Prescott Valley Az
March 04, 2014

if springs are to sriff could leafs be removed to soften them? Looking at these springs for a light weight street rod with a mid mounted 2.3 4 cylinder.Vehicle overall weight is 1700 lbs.don't have room for coil overs but think I could bet these mounted below frame rails and maintain ride height but would be concerned about a harsh ride

Answers

March 04, 2014
EricM
On a 1700 pound vehicle you will definitely have to remove a leaf or more to get a comfortable ride. The number of leaves you will need to remove is up to personal preference for ride quality.
1 answers

how long are the springs. eye to eye?

JiI1971
March 02, 2014

how long are the springs. eye to eye?

Answers

March 03, 2014
EricM
These springs are 20" long eye to eye.
1 answers

do the mounting brackets come with this? or is it just the spring.

Craigme
Maine, USA
November 10, 2012

do the mounting brackets come with this? or is it just the spring.

Answers

November 12, 2012
Jason
This spring also comes with an adjustable height'weld-on' bracket for mounting the spring to the frame.
1 answers

when you say 1450 pounds for weight limit..do you mean total vehicle weight?or the weight that would be actually on the front springs

Craigme
Maine, USA
November 07, 2012

when you say 1450 pounds for weight limit..do you mean total vehicle weight?or the weight that would be actually on the front springs

Answers

November 07, 2012
Jason
The weight rating would be for the front end suspended weight and not the entire vehicle weight. These are a heavy duty set and will handle the front end weight of most hot rods weighing up to 2800-3000 pounds total weight
1 answers

what is the load range(allowable vehicle weight) of these springs?

May 02, 2011

what is the load range(allowable vehicle weight) of these springs?

Answers

May 04, 2011
Pat
I don’t have an exact load range for this spring I would say 1450 lbs max for these springs
1 answers

What is the spring rate on these? How much will these deflect on the front of a Chevy 350 powered Model A Ford? 2000-2500 lbs total weight. Trying to figure out how to mount these with appropriate 45* shackle angle when finished.

mason
October 09, 2012

What is the spring rate on these? How much will these deflect on the front of a Chevy 350 powered Model A Ford? 2000-2500 lbs total weight. Trying to figure out how to mount these with appropriate 45* shackle angle when finished.

Answers

October 10, 2012
Jason
The manufacturer does not list a specific spring rate and testing a quarter elliptic is not a simple process without construction of specific fixtures. These springs are used on our Low-Boy with overall weight in the 2200 pound range for comparison to your needs. Depending on your front end weight these springs are normally for rear applications and may possibly be too light a rate. Our shop suggested a spring rate in the 225-250 range for these springs.
1 answers

What is arch height (measured from parallel lines through the spring upper eye and the lower eye)

senginc
B'ham, AL
May 21, 2015

What is arch height (measured from parallel lines through the spring upper eye and the lower eye)

Answers

May 22, 2015
Eric
Expert
The arch of this spring is 3/4" as measure from the center line of the eyes to the bottom of the main leaf. Also the arch measures 2 1/8" from the center line of the eyes to the top of the leaf stack.
Page 1 of 1
