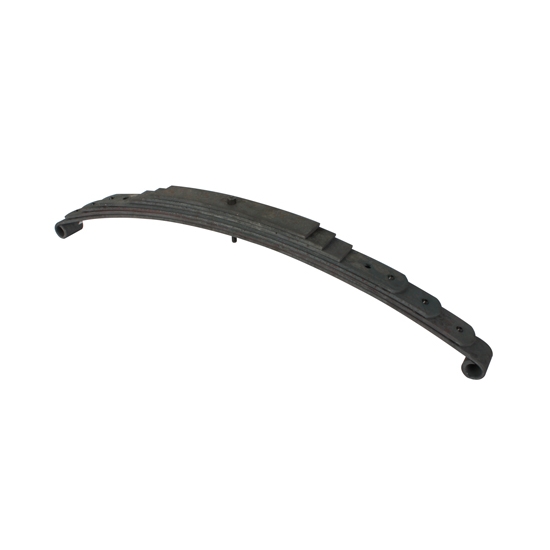

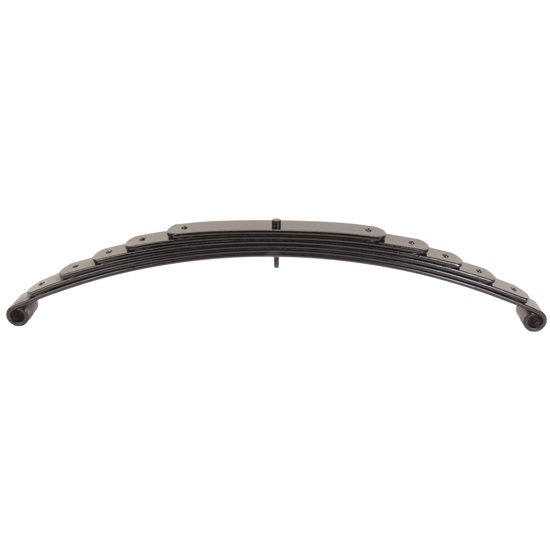

Super Glide Front Spring, 46 Inch Axle, Standard Eye, Plain

Specs
Material Type:
Steel
Overall Height:
6.00
Overall Width:
1.75
Sold in Quantity:
Each
Finish:
Natural
Number of Leafs:
6
Spring Height (Underside):
4.75
Length Eye to Eye:
29.00
Spring Eye I.D.:
0.75
Garage Sale:
No
Leaf Spring Eye Type:
Standard Eye
Spring Location:
Front
Super Glide    Front Spring, 46 Inch Axle, Standard Eye, Plain
Super Glide    Front Spring, 46 Inch Axle, Standard Eye, Plain
Super Glide    Front Spring, 46 Inch Axle, Standard Eye, Plain

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Achieve a smoother, more comfortable ride with Speedway Super Glide™ springs for your 1928-1934 Ford front end! The ends of the spring leaves of a Super Glide™ spring have a unique nylon button which works as a dry lubricant to significantly reduce leaf-to-leaf friction. This allows the spring to move more easily, thereby giving a softer, quieter ride.

Leaf Spring Measuring Guide (Link)

Item Details

29" Eye-to-Eye

Customer Reviews

Rated 4.8 out of 5 by 8 reviewers.
RATING BREAKDOWN
8 reviews
5 Stars
7
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

birdman1
Verified Purchaser
Iowa, USA
Product Rating

nice looking spring

March 11, 2015
I got the spring very fast. checked the dimensions and was spot-on. there needs to be a spring rateing chart to help determine spring use for us dummeys.
Pros:
  • Well Made
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dyno Dave
Verified Purchaser
Pa.
Product Rating

spring fit like a glove and worked well

May 09, 2012
Fits as discibed, very easy to install
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jerry
Verified Purchaser
Falling Waters WV
Product Rating

Great item

October 10, 2010
[...] when it got here, a little hard to get on, but, man is it nice, Thanks again speedway. Great item
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Action
Verified Purchaser
Prescott Valley Arizona
Product Rating

Too much whiz not enough bang

April 29, 2012
I think you should show the spring rate to help the customer select the proper spring per application. Not everyone wants to run a small block Chevy . A big block requires alot more spring on the front. I had to add 5 leafs to your spring to make it work.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Drive Em
Verified Purchaser
Coshocton OH
Product Rating

Improved ride of my fenderless coupe

August 27, 2010
Perfect fit thanks to measurement chart in catalog
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

hotrod28
Verified Purchaser
Product Rating

great product

October 11, 2014
I replaced the front spring on my 1928 model a from a reverse eye to the standard eye the ride is so much better on long drives and handeling great
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

birdman1
Verified Purchaser
Iowa, USA
Product Rating

nice looking spring

March 11, 2015
I got the spring very fast. checked the dimensions and was spot-on. there needs to be a spring rateing chart to help determine spring use for us dummeys.
Pros:
  • Well Made
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

condor1961
Verified Purchaser
Frankfurt, Germany
Product Rating

Good quality, works well !

March 30, 2015
I swiched from a reverse eye leafspring to this standard leafspring on my 1934 ford highboy roadster. The reason was to get a higher stance and more smooth ride comfort. I also changed my shocks all around to rebound adjustable coil overs and changed the tires from bias-ply to radials in the same size.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0
