Stud Kit for Flathead Head Mount Generator Brackets

SAME DAY SHIPPING! Order within the next 4 hours 26 minutes and receive same day shipping

Stud Kit for Flathead Head Mount Generator Brackets
Stud Kit for Flathead Head Mount Generator Brackets

Click image to enlarge

Speeday Motors Logo
X
Stud Kit for Flathead Head Mount Generator Brackets

Details

Reviews

Q & A

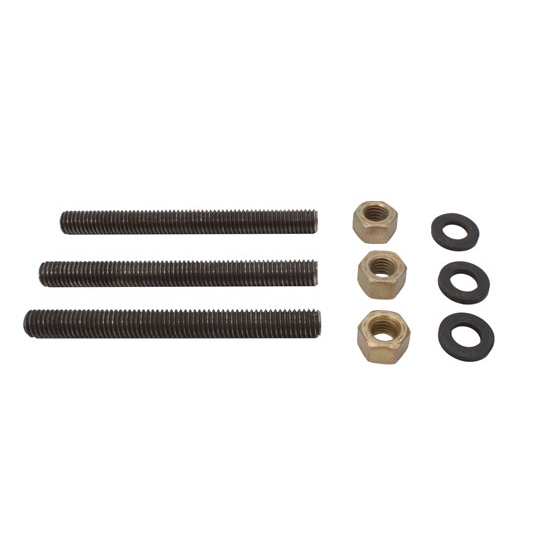

What's in the Box

  • Required for Offenhauser brackets 560-1093 and 560-1094
  • (3) ea 7/16"-14 x 4-1/2" USS Grade 8 all thread
  • (3) ea 7/16"-14 USS Coarse Grade 8 nut
  • (3) ea washer

You may also be interested in:

Offenhauser 1093 37-48 Flathead Drve Side Head Mount Generator Bracket


These cast aluminum brackets for 1937-1948 Flathead Ford V-8 relocate your generator above the cylinder head to make room for multi-carb manifolds, air cleaners, etc. Must be used with stud kit 916-67912.



  • Bolt Boss Thickness:  1-1/4"
  • Inside Width:  2-1/2"
Note: This bracket is designed to mount an original stock 6V generator, but it could also be used with a bracket such as 916-67908 or 916-67907 to mount a GM 1-wire alternator.

Cylinder Head Mount Chart (Link)



Offenhauser 1094 37-48 Flathead Head Mount Generator Bracket-Pass Side


These cast aluminum brackets for 1937-1948 Flathead Ford V-8 relocate your generator above the cylinder head to make room for multi-carb manifolds, air cleaners, etc. Must be used with stud kit 916-67912.



  • Bolt Boss Thickness:  1-1/4"
  • Inside Width:  2-1/2"
Note: This bracket is designed to mount an original stock 6V generator, but it could also be used with a bracket such as 916-67908 or 916-67907 to mount a GM 1-wire alternator.

Cylinder Head Mount Chart (Link)
