Professional Products 10102 Street Rod Fuel Filter

SAME DAY SHIPPING! Order within the next 6 hours 30 minutes and receive same day shipping

Specs
Centerline of Holes:
2.00
Material Type:
Aluminum
Overall Height:
5.38
Overall Length:
4.86
Sold in Quantity:
Each
Finish:
Chrome
Overall Diameter:
3.25
Outside Diameter:
2.48
Outlet Fitting:
3/8" NPT
Flow Rating:
90 GPH @ 7 PSI
MFG. Part #:
10102
Garage Sale:
No
Filter Element Type:
Paper
Notes
Intended for carburated systems only. Element filters particles down to 10 microns.
Professional Products 10102 Street Rod Fuel Filter

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

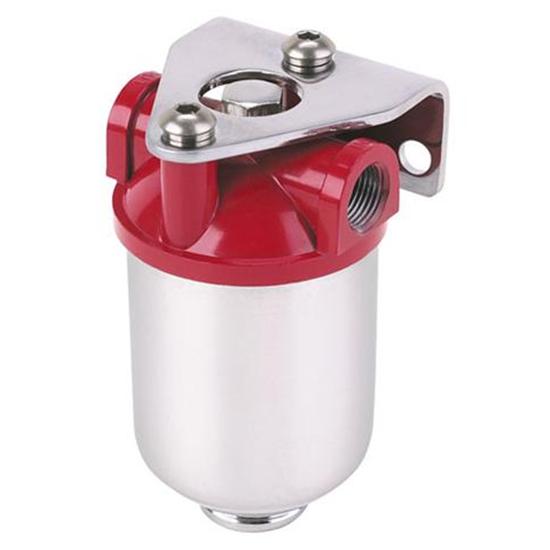

This deluxe fuel filter features a replaceable paper filter, an aluminum painted top and a chrome filter housing. It is 5-3/8" tall by 3-1/4" diameter and has 3/8" NPT inlet and outlet.

For carbureted systems only. Flows up to 90 GPH @ 7 PSI and filters particles down to 10 microns.

910-11770 Instructions (PDF)

Customer Reviews

Rated 3.8 out of 5 by 10 reviewers.
RATING BREAKDOWN
10 reviews
5 Stars
5
4 Stars
2
3 Stars
1
2 Stars
0
1 Star
2
RECOMMEND THIS PRODUCT:

32 Enthusiast
Verified Purchaser
Vancouver, Wa.
Product Rating

Street Rod Fuel Filter

July 13, 2012
This is the second fuel filter...both were the same. The first was purchased and installed by the builder of the car and the filter leaked fuel from the top center bolt even after it was tightened. The second leaked out the threads on the engine side of the filter. I threw both away and purchased a metal inline fuel filter. There have been no further problems.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

waynerd
Verified Purchaser
Bend, OR.
Product Rating

Looks good on the outside

April 04, 2012
The fuel filter looked good from the outside. I had trouble installing the fuel fittings and I had to run a tap into the housing to clean up the threads. After doing this I opened the filter to make sure no shavings had got inside the filter. That is when I found the inside of the housing full of dirt and junk that was left over from the plating process. If you purchase this filter, make sure you take it apart and inspect it before you install it.
Pros:
  • Easy To Install
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Swise1
Verified Purchaser
So Cal
Product Rating

NIce Product

March 12, 2011
A nice solid addition to a street rod.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Tom from Colorado
Berthoud, CO
Product Rating

Impossible to seal from leaking.

July 11, 2011
Impossible to get a seal due to low grade gasket material. It appears that modern fuels cause swelling and eventual failure of the gasket. Cannot get this to stay sealed over winter as a result. If the replacement filters came with quality gaskets, then we would have a winner. Forced to go with a Fram canister from elsewhere that uses the superior Wix (NAPA) filter element and gaskets.
Pros:
  • Easy To Install
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

fuzzy
Verified Purchaser
colorado springs
Product Rating

a real man's filter!

July 06, 2011
excellent maintenance addition, no more problems w/fuel delivery. just plug in and forget
Pros:
  • Durable
  • Easy To Install
  • Lightweight
  • Improves Engine Efficiency
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

laughing Jack
Verified Purchaser
Price, Utah
Product Rating

Nice filter well constructed

March 24, 2011
Well constructed easy to use
Pros:
  • Easy To Install
  • Improves Engine Efficiency
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Miller Lite (MCW Rods & Kustoms)
Plantation, FL
Product Rating

Great product !!!

April 30, 2010
Will use it again, it is a great choice when the need for a good looking filter.
Pros:
  • Great looks
  • Great performance
  • Easy to mount
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Faster Pastor
Verified Purchaser
Charlottesville, VA
Product Rating

STREET ROD FUEL FILTER Style #: 91011770

July 31, 2012
Speedway is a great place to get your stuff!!!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Faster Pastor
Verified Purchaser
Charlottesville, VA
Product Rating

STREET ROD FUEL FILTER Style #: 91011770

July 31, 2012
Speedway is a great place to get your stuff!!!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

old school
Verified Purchaser
melbourne fl
Product Rating

always run your filter before tje pump

May 11, 2015
I couldn't find a single fitting to hard line the filter, had to use rubber connections
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91011770

Product Q&A

4 questions : 5 answers

1 answers

PLease list the replacment filter part number.

Barack
May 28, 2014

PLease list the replacment filter part number.

Answers

May 29, 2014
EricM
The replacement filter is part number 91011771
1 answers

does it come with a filter

Linda
merced
July 15, 2011

does it come with a filter

Answers

July 18, 2011
Jason
Yes, filter is included
1 answers

will this filter work on a car that only puts out 3 lbs. of fuel pressure

bill
calif
January 23, 2012

will this filter work on a car that only puts out 3 lbs. of fuel pressure

Answers

January 24, 2012
John
Part number 91011770 These filters do not list a minimum fuel pressure and are commonly used on low pressure systems such as the early flathead V8’s. Not recommended for high pressure injection systems.
2 answers

Can this filter be placed on the input side of an electric fuel pump?

Chuck
October 05, 2012

Can this filter be placed on the input side of an electric fuel pump?

Answers

October 17, 2012
JeffB
I have it mounted ahead of my Carter P4594 electric with no problems.
October 05, 2012
Jason
This filter is intended for carburated fuel systems only. It will flow 90 GPH at 7 PSI. It may work with some electric pumps depending on flow.
Page 1 of 1
