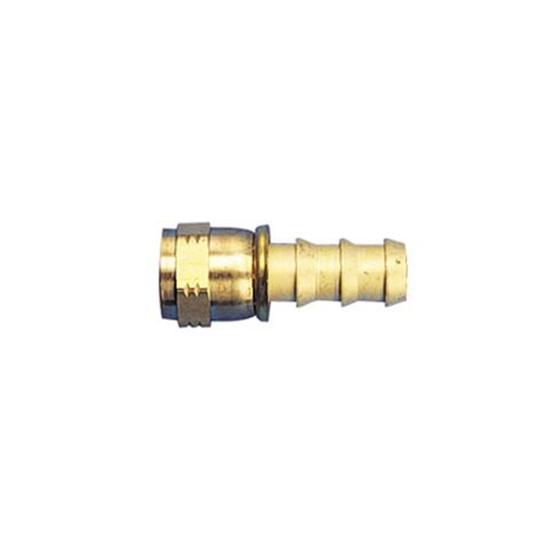

Straight Socketless Reuseable Push-On Hose End for -6 AN Fitting

Specs
Sold in Quantity:
Each
Angle:
Straight
Finish:
Natural
Material Type:
Brass
MFG. Part #:
4741-6B
Garage Sale:
No
Inside Diameter:
.30
Straight Socketless Reuseable Push-On Hose End for -6 AN Fitting

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Push-on straight brass hose ends for use with AN fittings. Special construction assures a tight, leak-proof connection with maximum operating pressures up to 350 psi. Covers a wide variety of automotive fluid conveying applications, including air, water, gasoline, and fuel and lubricating oils.

Socketless Push-On Application Chart (GIF)

Socketless Push-On Assembly (GIF)

Fitting Thread Size Guide (GIF)

NPT Thread Size Chart (GIF)

Notes

  1. Not recommended for hydraulic impulse applications.
  2. Not approved for air brake applications.

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.

You may also be interested in:

Socketless Reusable Push-On Hose End for -6 AN Fitting, 45 Degree
(Part #1061439)


45° push-on style steel hose ends for use with AN fittings. Special construction assures a tight, leak-proof connection with maximum operating pressures up to 350 psi. Covers a wide variety of automotive fluid conveying applications, including air, water, gasoline, and fuel and lubricating oils.

Socketless Push-On Application Chart (GIF)

Socketless Push-On Assembly (GIF)

AN Thread Size Guide (GIF)

Fitting Thread Size Guide (GIF)

Socketless Reusable Push-On Hose End for -6 AN Fitting, 90 Degree
(Part #1061242)


Push-on style with 90° steel hose ends for use with AN fittings. Special construction assures a tight, leak-proof connection with maximum operating pressures up to 350 psi. Covers a wide variety of automotive fluid conveying applications, including air, water, gasoline, and fuel and lubricating oils.

Socketless Push-On Application Chart (GIF)

Socketless Push-On Assembly (GIF)

Aluminum Socketless Reusable Push-On Hose Barb Ends for AN Fittings
(Part #47223)


These lightweight socketless fittings are machined from aluminum alloy and anodized red and blue with a luster finish, the ultimate in professional appearance. Precision machine work ensures a positive seal when coupling Full Flow™ hose ends to your carburetor. They are ideal for use as fuel line connectors or adapters.

  • AN to hose barb
  • Choose straight, 45°, 90°, 120° or 180°. Then choose -6, -8, -10 or -12 AN size.
  • Use with Aeroquip Special Application blue hose
  • For use with 37° AN style fittings

Socketless Fitting Application Chart (GIF)

AN Thread Size Guide (GIF)

Fitting Thread Size Guide (GIF)

Aeroquip FBV0600 Special Application Socketless AN Hose, Blue
(Part #106332-6)

  • Textile braid reinforcement
  • Low pressure design for use with socketless reuseable fittings only
  • No hose clamp necessary
  • Ideal hose for fuel line applications
  • 50,000 ft of hose in stock!

    Construction: AQP elastomer tube, textile braid reinforcement, blue AQP elastomer cover.

    Application: For gasoline, fuel and lubricating oils, air and water. Not recommended for hydraulic impulse applications and is not approved for air brake, hydraulic brake or power steering applications.

    Operating Range: Max Operating pressure: 250 PSI. Minimum burst pressure: 1000 PSI. Operating Temperature Range -40°F to 300°F. Air not to exceed +250°F and water not to exceed +180°F. Reduced pressure operation allows for temperatures up to 300°F.

    Aeroquip Hose Sizing Guide (GIF)

  • Hose Fitting Sizing Chart (GIF)

    Aeroquip FBM3553 Push-On Hose Fitting Lube
    (Part #6173553)


    Aeroquip Hose Assembly Lube is a specially formulated lubricant for use in hose assembly work. Makes hose assembly a snap.

    Available in pint containers. Use for either hand or machine assembly.

    Learn why using assembly lube is so important in our tech article, Installing New Hardware.

    Aeroquip FBM3632 Push On Fitting Tool for AN4, AN6, AN8
    (Part #6173632)


    It's a pain to push that blue hose onto a fitting! With this tool you don't need a vise or any other tools. Simply lube the inside of the hose, clamp the hose and give the lever a pull!

    For AN 4, 6, 8 straight push-on fittings only.
