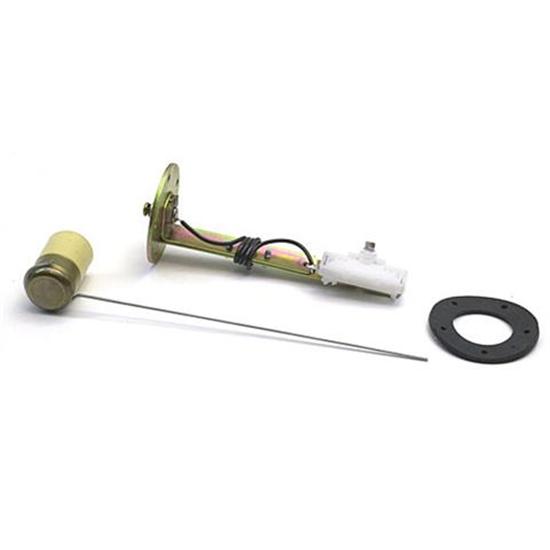

Stewart Warner 391B-F R Swing 10-15 Fuel Level Sending Unit-240/33 Ohm

SAME DAY SHIPPING! Order within the next 10 hours 5 minutes and receive same day shipping

Stewart Warner 391B-F R Swing 10-15 Fuel Level Sending Unit-240/33 Ohm
Stewart Warner 391B-F R Swing 10-15 Fuel Level Sending Unit-240/33 Ohm
Stewart Warner 391B-F R Swing 10-15 Fuel Level Sending Unit-240/33 Ohm

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

What brand of gauge will you use?
This Stewart Warner brand fuel sender is compatible with all Stewart Warner and Classic Instruments fuel gauges.

How deep is your tank?
Measure the depth of your tank where the fuel sender arm will be located. Choose the sender with an operating range which includes that dimension.

Right or Left-swing arm?
Most fuel gauge senders attach with a 5-screw pattern. Two of these screws are farther apart than the other three. Position yourself such that the 2 wider-spaced holes are closest to your chest; a right side sender will have the arm (or "float") extending to your right, and a left side sender will have the arm extending to your left. This only matters when replacing an existing sender. A first-time installation can use either one, just drill the mounting holes accordingly.

LH/RH Swing Guide (Link)

OHM
The OEMs used several different resistance ranges for fuel level indication over the years. However, some of the aftermarket gauge manufacturers follow the common Stewart Warner values (240 ohm empty, 33 ohm full). The gauges and senders that we carry (385 & 391’s) use these standard Stewart Warner values.

Ohms Chart (Link)
Installation Instructions (PDF)

Item Details

Requires a 1-7/16" hole in the tank for minimum/maximum of 1-5/8".

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Junkman55
Verified Purchaser
Easton, MD 21601, USA

great product

September 03, 2014
Great product, great company. Parts were shipped fast hope to do more business with Speedway.
Pros:
  • speedway has a lot of parts
Cons:
  • have not found any yet.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Link X
Verified Purchaser
St Paul,MN

Nice unit, good instructions

September 28, 2010
esy to install but I could have used a templet to mark the holes for drilling & tapping for the screws. Looks like a good unit, I havent hooked it up yet but did install in my tank.
Pros:
  • Clear Instructions
  • Easy To Set Up
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 2 answers

2 answers

WHAT OHMS IS THIS SENDER

June 27, 2011

WHAT OHMS IS THIS SENDER

Answers

September 04, 2014
Junkman55
240
June 28, 2011
Jason
This sender has an OHM rating of 240 OHM empty and 33 OHM full
Page 1 of 1
