Stewart Warner 385B-F L Swing 6-12 Fuel Level Sending Unit 240/33 Ohm

Specs
Overall Length:
12.00
Sold in Quantity:
Each
Overall Diameter:
2.61
Bolt Hole Pattern:
5 on 2.20"
Ohm Range:
240 empty, 33 full
MFG. Part #:
385B-F
Garage Sale:
No
Notes
Can be shortened to 6.00"

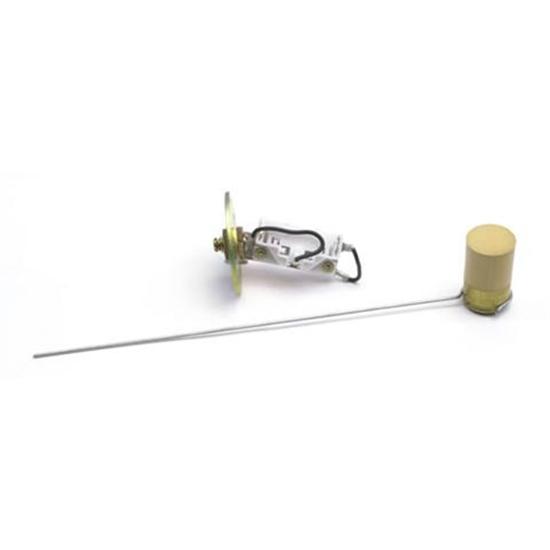

Stewart Warner 385B-F L Swing 6-12 Fuel Level Sending Unit 240/33 Ohm

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Choosing a fuel level sender:

What brand of gauge will you use?
Speedway carries the excellent Stewart Warner brand of fuel senders. They are compatible with all Stewart Warner and Classic Instruments fuel gauges.

How deep is your tank?
Measure the depth of your tank where the fuel sender arm will be located. Choose the sender with an operating range which includes that dimension.

Right or left-swing arm?
Most fuel gauge senders attach with a 5-screw pattern. 2 of these screws are farther apart than the other 3. Position yourself such that the 2 wider-spaced holes are closest to your chest; a right side sender will have the arm (or "float") extending to your right, and a left side sender will have the arm extending to your left. This only matters when replacing an existing sender. A first-time installation can use either one, just drill the mounting holes accordingly.

LH/RH Swing Guide (Link)

OHM
The OEM’s used several different resistance ranges for fuel level indication over the years. However, some of the aftermarket gauge manufacturers follow the common Stewart Warner values (240 ohm empty – 33 ohm full). The gauges and senders that we carry (385 & 391’s) use these standard Stewart Warner values.

Ohms Chart (GIF)

Customer Reviews

Rated 4.4 out of 5 by 8 reviewers.
RATING BREAKDOWN
8 reviews
5 Stars
5
4 Stars
2
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

Glen1
Homosassa, FL, USA
Product Rating

Difficult to assemble

September 21, 2014
While trying to attach the float arm to the sending unit, I broke the rheostat. The sending arm must be bent at a PERFECT 90 degree bend. And flattened at the bend. very difficult to accomplish. Got it right with the second unit.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

YellowSea2
Verified Purchaser
Lynn Haven, FL, USA
Product Rating

No problems experienced .

September 05, 2014
No problems with installing. It fit the tank perfectly and as to this date is working just as it should.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

moondoggy
Verified Purchaser
Champaign, IL, USA
Product Rating

Perfect replacement

May 03, 2013
FIxed my Stewart Warner Fuel Gauge problem of inaccurate reading. Measured the ohm's on my old one and realized it was out of range (440 ohms) Slipped this one in (easy) and back to correct readings again. Only adjustment was cutting the float rod to correct length.
Pros:
  • Easy Install
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Beaver
Bellevue, NE
Product Rating

Perfect conversion

January 22, 2010
Quick and easy to install, and 100% compatible with existing fuel tank port, electrical connection, and gauge. Very nice! I recommend purchasing the new seal along with this in case your old hardware is damaged in the swap.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

pedro
derby, ks
Product Rating

installing the sending unit

February 14, 2010
the sending unit interfears with pickup tube on 32 ford poly tank. it will need to be bent before it is cut to length.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Yesteryears Custom Classics
Verified Purchaser
Glendale AZ
Product Rating

FUEL LEVEL SENDER, 6"-12" LH

December 23, 2011
Fit exactly as the old.
Pros:
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

teamcow
Verified Purchaser
topeka, ks
Product Rating

Great......

November 12, 2011
Many applications.......
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Onbrake
Verified Purchaser
Product Rating

Quality

August 16, 2014
Pretty easy to install, the only grey area is the instructions. After a quick study, I made the necessary, mods and presto I'm done.
Pros:
  • Quality
Cons:
  • vague instructions
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 4 answers

my guage reads 40 to 250 ohms--will this sender work replica with classic restoration guage--67 vw tank

2 answers
dantad
July 27, 2014

my guage reads 40 to 250 ohms--will this sender work replica with classic restoration guage--67 vw tank

Answers

September 22, 2014
Glen1
Not sure. Would not recommend
July 29, 2014
Travisp
The 33-240 sender is as close as we have listed to your 40-250 gauge. If your 250 is empty reading and the sender putting out 240 empty your gauge would never get to empty before you ran out of fuel.

does this sender come with a gasket?

1 answers
jhenry
November 01, 2012

does this sender come with a gasket?

Answers

November 01, 2012
Jason
Yes, a gasket is included

Is this 12 volt or 6 volt? and what size hole dose it fit. 2-1/2 or 3 1/2

1 answers
Jim
Westminster, Md
November 08, 2011

Is this 12 volt or 6 volt? and what size hole dose it fit. 2-1/2 or 3 1/2

Answers

November 09, 2011
John
Part number 665366LP These senders are 12 volt and require a 1 5/8” diameter hole. Mounting flange is approximate 2 ¾” O.D.
Page 1 of 1
