Stewart Warner 82623B GM Sender for Wings Electronic Speedometer

Stewart Warner 82623B GM Sender for Wings Electronic Speedometer
Stewart Warner 82623B GM Sender for Wings Electronic Speedometer
Stewart Warner 82623B GM Sender for Wings Electronic Speedometer

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

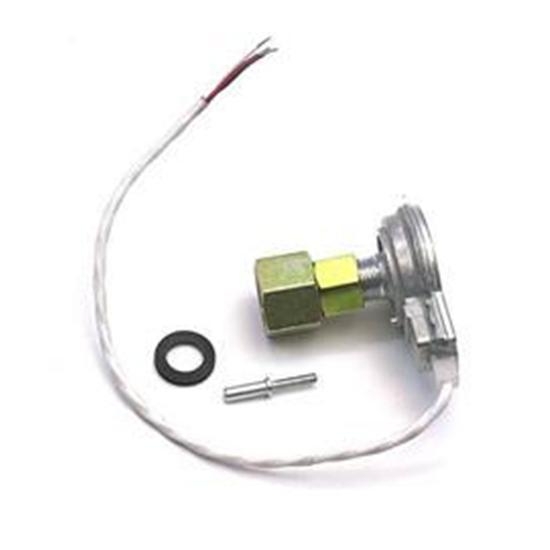

This sending unit for electronic speedometers has a .894" (7/8”) female attachment nut to attach it to the transmission or out-drive unit.  This is similar to the female threaded ring on mechanical speedometer cables. Most customers will need to purchase part number 66582629, square drive tip, to attach this sender to a GM transmission.

Customer Reviews

This product has no reviews.

Product Q&A

6 questions : 6 answers

1 answers

when the sening unit is bolted to the trans. should it move around.. like swing left and right or should noy move at all? when I am under the trans if you put your hand on the sending unit it will swivel. Should that not do that or does it swing freely? It's bolted to the trans., but you can move the sending unit and the wires are attached. It's a GM 350 trans. Thank you Hwyharv

hwyharv
Los Angeles
February 28, 2015

when the sening unit is bolted to the trans. should it move around.. like swing left and right or should noy move at all? when I am under the trans if you put your hand on the sending unit it will swivel. Should that not do that or does it swing freely? It's bolted to the trans., but you can move the sending unit and the wires are attached. It's a GM 350 trans. Thank you Hwyharv

Answers

March 02, 2015
EricM
The GM sender for the electronic speedometer installs like the original speedometer cable does. The assembly has a gasket and when tightened down could still turn unless it is not tightened securely. It may be possible that the drive tip is too long and bottoming out. The sender does not have to be tightened to the point that it is takes a long wrench to torque in place.
1 answers

Manual speedometer to electric transmission I have a wings manual speedometer but I have a 700r4 transmission, which I was told needs electronic speedometer. Do you have an adapter?

Wannabe
November 29, 2014

Manual speedometer to electric transmission I have a wings manual speedometer but I have a 700r4 transmission, which I was told needs electronic speedometer. Do you have an adapter?

Answers

December 01, 2014
EricM
Sorry we do not offer any way to connect a mechanical speedometer to a transmission that has an electronic speedometer sender.
1 answers

Will this sender provide the necessary signal for a Rostra cruise control? I want to eliminate my current mechanical speedometer and replace it with a Wings electric speedometer. I will need to use a sender such as this one to drive the new electric speedometer. Can this one sender drive the electric speedometer and a Rostra cruise control?

marebb
Leitchfield, KY, USA
August 06, 2013

Will this sender provide the necessary signal for a Rostra cruise control? I want to eliminate my current mechanical speedometer and replace it with a Wings electric speedometer. I will need to use a sender such as this one to drive the new electric speedometer. Can this one sender drive the electric speedometer and a Rostra cruise control?

Answers

August 06, 2013
Jason
Most electronic senders for the speedometers do not include the cruise option. You may want to consider to simplify things Classic instruments Sky Drive with cruise under part #2751023. Many of the senders require a separate sender for the cruise control.
1 answers

how do you hook up the sender to the gauge I lost my installation manual for the hook up. where do the red black and white wires go on the back of the gauge?

dennyB
South Bend, IN, USA
April 22, 2013

how do you hook up the sender to the gauge I lost my installation manual for the hook up. where do the red black and white wires go on the back of the gauge?

Answers

April 23, 2013
Jason
On the Stewart Warner GM sender the red wire is positive, black is negative and white goes to "S" terminal or refer to your instructions for the gauge for proper connection.
1 answers

will this fit on a 1948 ford three speed trans

ben
oregon
February 25, 2011

will this fit on a 1948 ford three speed trans

Answers

March 08, 2011
Waymon
Thank you for your interest in our, Senders for Wings Electronic Speedometer. Unfortunately these sending units are for automatic transmissions. If your 1948 ford has an automatic transmission then read the following description. The Senders for Wings Electronic Speedometer, item # 665-82623B. This sending unit for electronic speedometers has a .894 or 7/8” female attachment nut to attach it to the transmission or out-drive unit. This is similar to the female threaded ring on mechanical speedometer cables. NOTE: Our adapter #665-366ADB is necessary when using an electric speedometer with a Ford automatic transmission.
1 answers

Will this fit a chevy Th350 automatick transmission

T.D.
Norway
July 29, 2011

Will this fit a chevy Th350 automatick transmission

Answers

August 04, 2011
John
This pulse generator is for the newer transmissions with the threaded 7/8” male boss that the speedo cable attached to. The early Ford transmission speedo cables were retained by a lock ring and spring clip and utilized a cable with a bigger diameter drive tip than the later years. We are unaware that a pulse generator is manufactured for the early transmissions but with some of the original drive cable it may be possible for a builder to fabricate the necessary parts, or you may want to contact the gauge manufacturers to see if such a generator is produced and if so the nearest vendor.
Page 1 of 1
