Stewart Warner 366LP-F Fuel Level Sender Installation Kits



                                                        What brand of gauge will you use?
These Stewart Warner brand fuel senders are compatible with all Stewart Warner and Classic Instruments fuel gauges.
How deep is your tank?
Measure the depth of your tank where the fuel sender arm will be located. Choose the sender with an operating range which includes that dimension.
Right or Left-swing arm?
Most fuel gauge senders attach with a 5-screw pattern. Two of these screws are farther apart than the other three. Position yourself such that the 2 wider-spaced holes are closest to your chest; a right side sender will have the arm (or "float") extending to your right, and a left side sender will have the arm extending to your left. This only matters when replacing an existing sender. A first-time installation can use either one, just drill the mounting holes accordingly.
LH/RH Swing Guide (Link)

OHM
The OEMs used several different resistance ranges for fuel level indication over the years. However, some of the aftermarket gauge manufacturers follow the common Stewart Warner values (240 ohm empty, 33 ohm full). The gauges and senders that we carry (385 & 391) use these standard Stewart Warner values.
Ohms Chart (Link)

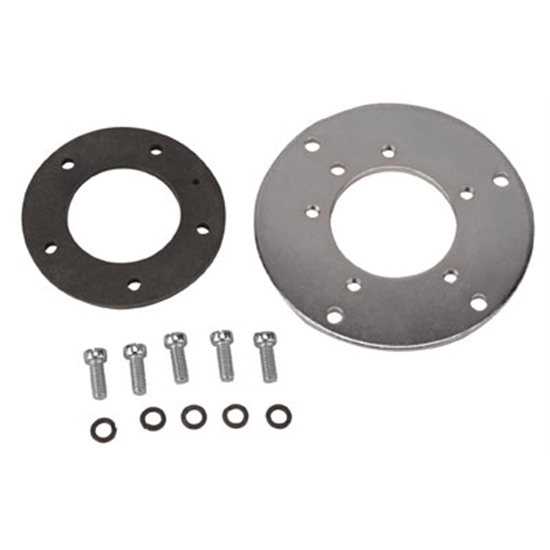

If you have a 1935-1956 Ford car or pickup with a big 6 hole fuel sending unit, how do you put an aftermarket 5 hole sending unit in your tank? Simple. Use this adapter plate. Hardware included.






                                                        Choosing a Fuel Level Sender;
What brand of gauge will you use?
Speedway carries the excellent Stewart Warner brand of fuel senders. They are compatible with all Stewart Warner and Classic Instruments fuel gauges.
How deep is your tank?
Measure the depth of your tank where the fuel sender arm will be located. Choose the sender with an operating range which includes that dimension.
Right or left-swing arm?
Most fuel gauge senders attach with a 5-screw pattern. 2 of these screws are farther apart than the other 3. Position yourself such that the 2 wider-spaced holes are closest to your chest; a right side sender will have the arm (or "float") extending to your right, and a left side sender will have the arm extending to your left. This only matters when replacing an existing sender. A first-time installation can use either one, just drill the mounting holes accordingly.
LH/RH Swing Guide (Link)
OHM
The OEM’s used several different resistance ranges for fuel level indication over the years. However, some of the aftermarket gauge manufacturers follow the common Stewart Warner values (240 ohm empty – 33 ohm full). The gauges and senders that we carry (385 & 391’s) use these standard Stewart Warner values.
Ohms Chart  (GIF)
