Stewart Components 12103 Small Block Chevy Stage 1 Water Pump, Short

SAME DAY SHIPPING! Order within the next 14 hours 20 minutes and receive same day shipping

Specs
Material Type:
Cast Iron
Weight:
10.30
Sold in Quantity:
Each
Finish:
Natural
Shaft Diameter:
0.63
Mounted Length:
6.13
Shaft Length:
0.54
Hose ID:
1.81
Gasket(s) Included:
Yes
Hardware Included:
No
Heater Inlet Size:
3/4" NPT on the top and 1/2" NPT
MFG. Part #:
12103
Water Pump Style:
Short
Notes
Clearance from back of pump to engine block mount is .88"

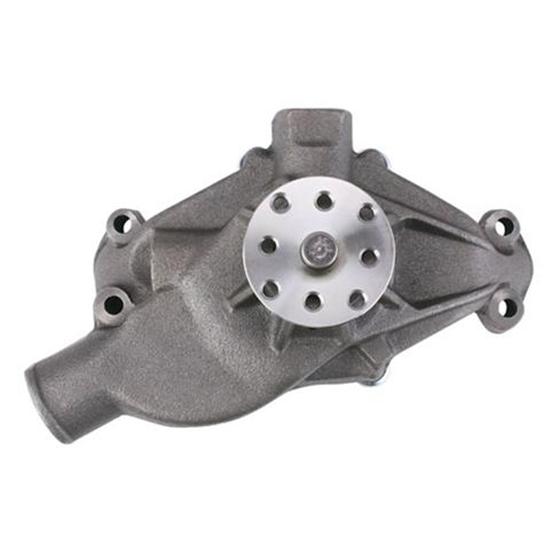

Stewart Components 12103 Small Block Chevy Stage 1 Water Pump, Short
Stewart Components 12103 Small Block Chevy Stage 1 Water Pump, Short

Click image to enlarge

Speeday Motors Logo
X
Stewart Components 12103 Small Block Chevy Stage 1 Water Pump, Short

Details

Reviews

Q & A

What's in the Box

Uses new, OEM cast iron castings precision machined and assembled by Stewart Components to their exacting standards. They feature higher flow and pressure for better cooling. They have a 3/4" bearing and 5/8" shaft.

  • Castings are internally modified for performance and reliability
  • Compatible with stock lines and brackets
  • Precision ground hub for perfect pully alignment
  • Equal flow to left and right cylinder heads
  • Recommended for stock, OEM, or mild performance applications
  • One year warranty

Note: If using a mechanical fan, we suggest using a 3/4" shaft water pump.

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump.
