Ididit 3000313449 Steering Coupler, 3/4 Inch-36 Spline to 3/4 Inch DD

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Drop:
.75
MFG. Part #:
3000313449
Garage Sale:
No

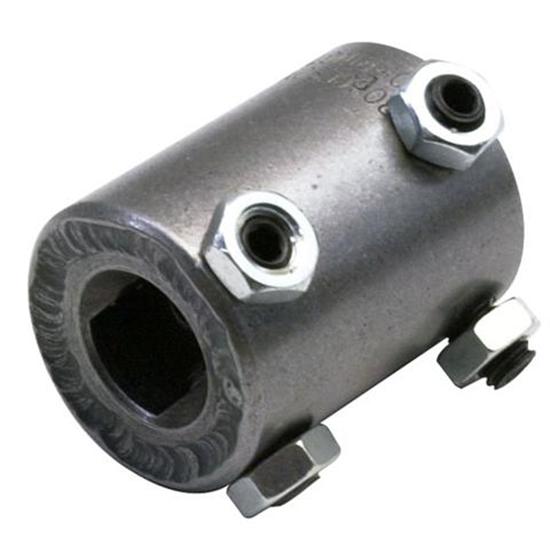

Ididit 3000313449 Steering Coupler, 3/4 Inch-36 Spline to 3/4 Inch DD
Ididit 3000313449 Steering Coupler, 3/4 Inch-36 Spline to 3/4 Inch DD

Click image to enlarge

Speeday Motors Logo
X
Ididit 3000313449 Steering Coupler, 3/4 Inch-36 Spline to 3/4 Inch DD

Details

Reviews

Q & A

What's in the Box

No-shift columns use 1" DD u-joints, while shift columns use 3/4"-36 spline u-joints. When using the original steering box, the input shaft will need to be cut and modified into a 3/4" DD.

Steering U-Joints and Couplers Application Chart (GIF)

Steering Box/Rack/Spline Chart (Link)

Spline Size (Link)
