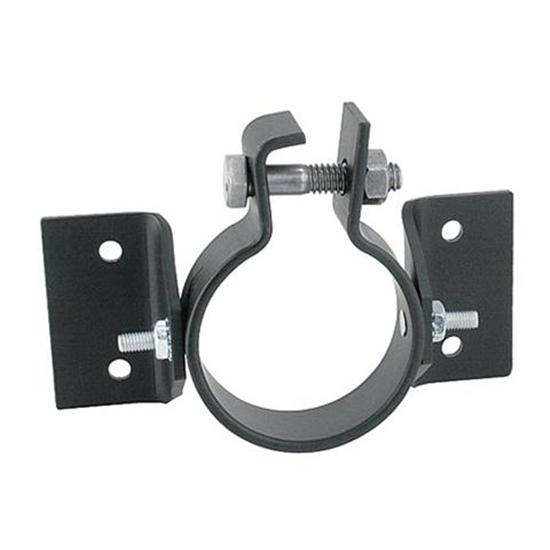

Ididit 2401300010 Steering Column Band Swivel Lower Mount, 2 Inch
Click image to enlarge
Q & A
What's in the Box
Mounting your steering column to the firewall or floor can be a real challenge. Ididit's steel band swivels are an easy and inexpensive solution.
446-4030 Instructions (PDF)
- Overall length of the flange is 5-7/8"
- Distance between flanges 2-1/4"
- Assembled Height is 1-1/2"
- Flange is 1/8" thick
- Each mounting surface is 1" x 2"
You may also be interested in:
Ididit 2401800010 Adjustable Steering Column Floor Mount, 2 InchMore Info
Ididit 2401500040 Steering Column Ball Swivel Lower Mount, 2 InchMore Info
Universal Steering Column Floor Mount PlatePrice: $49.99More Info
Speedway Universal Steering Column Mount, 2 InchMore Info
Lokar ACA-1804 Cable Column Shift Linkage, 2 Inch Aftermarket GM$169.95More Info
Lokar ACA-1800 Billet Adjustable Column Arm Kit, GM Transmissions$75.95More Info
This kit from Ididit offers security and a handsome appearance as well. Floor mount portion includes an adjustable mount with a polished aluminum trim ring with hardware. Then choose what color boot, part # 4462405-color you want and you have everything you need to complete the look. Black, Bone, Brown or Grey boots available.
446-2401 Instructions (PDF)
- Select (1) column mount diameter needed.
- Select (1) boot color needed, part # 4462405-color.
Mounting your steering column to the firewall or floor can be a real challenge. Ididit's billet aluminum ball swivel style mounts make this task much easier.
Note: This mount may require slight modification to the I.D. of the ball or O.D. of the column end due to variation between manufacturers. It is not for chrome columns.
446-4150 Instructions (PDF)
Universal lower floor mount plate works on all 1-3/4", 2", or 2-1/4" diameter steering columns by simply removing the locking inter rings to the size of your column. Made out of chrome-plated aluminum for a clean finish.
Measures 4-1/2" O.D.
- 2-1/4" column can make it to about 10 degrees
- 2" column can make it to about 17 degress
- 1-3/4" column can make it to about 30 degrees
These versatile mounts install at any angle to solidly mount your steering column.
- Available in 2" diameter
- Choose from black or stainless steel
Simplify connecting your column shift to your transmission with a Lokar Cable Column Shift Linkage Kit. This is the ultimate answer to interference issues when you are unable to use factory or Lokar's hard column linkage. The cable allows you to route the cable around transmission, exhaust, cross-members and brake pedals. It can also be used in conjunction with the Back-Up Light or Neutral Safety Switch Kit # 491-1400 for most GM transmissions. Features black housing, designed with specially extruded liner for extended life of the cable, and stainless inner wire measuring 6 feet in length. Ready-to-install hardware and brackets included in kit - no cutting or measuring - simply bolts on. The rigid, clean line design allows the proper ratio adjustment between the transmission and the indicator on the column.
Works with 2" aftermarket GM style columns and most GM factory columns. Works with all GM transmissions however it does not work with a Powerglide, Ford, or Chrysler transmission.
Tech Tip: If you have a direct line of sight from column shift arm to transmission shift arm, we suggest using the adjustable column shift linkage # 491-1800. To determine column diameter, measure the lower outer column tube.
Simplify connecting your column shift to your transmission with a Lokar machined billet aluminum Adjustable Column Shift Linkage Kit. Works with all aftermarket GM style columns and most GM factory columns. Our rigid, clean line design allows the proper ratio adjustment between the transmission and the indicator on the column.
- Billet aluminum offers rigidity
- 3/4-48 spline designed for 3600 rotation allowing proper ratio
- Both 3/8-16NC and metric 10-1.50mm threaded nuts for mounting electrical accessories
- Kit includes all hardware, including column bushing and rod ends
- "U-Cut-to-Fit" Stainless Connecting Rod
- No threading necessary
- Fits GM TH-350, TH-400, 700-R4, TH-200, 200-4R, 4L60, 4L60E and 4L80E transmissions
Ordering Idea: You can use the Backup Light or Neutral Safety Switch Kit # 491-1400 with GM Column Shift Linkage, except for 4L60E and 4L80E transmissions.
Tech Tip: If you don't have a direct line of sight between the column shift arm and the transmission shift arm, consider using column cable shift linkage # 491-1804 or # 491-1805
