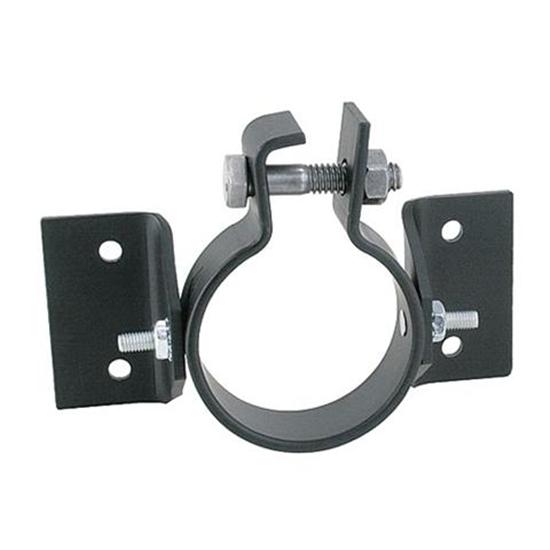

Ididit 2400300010 Steering Column Band Swivel Lower Mount, 1-3/4 Inch

SAME DAY SHIPPING! Order within the next 2 hours 40 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
1.50
Overall Length:
5.88
Sold in Quantity:
Each
Material Thickness:
.125
MFG. Part #:
2400300010
Garage Sale:
No
Ididit 2400300010 Steering Column Band Swivel Lower Mount, 1-3/4 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Mounting your steering column to the firewall or floor can be a real challenge. Ididit's steel band swivels are an easy and inexpensive solution.

446-4030 Instructions (PDF)

Specs

  • Overall length of the flange is 5-7/8"
  • Distance between flanges 2-1/4"
  • Assembled Height is 1-1/2"
  • Flange is 1/8" thick
  • Each mounting surface is 1" x 2"

Customer Reviews

Rated 4.9 out of 5 by 7 reviewers.
RATING BREAKDOWN
7 reviews
5 Stars
6
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Rufus
Verified Purchaser
Verified Reviewer
Fort worth TX

Worked perfect on slanted firewall.

June 29, 2015
I used the column support on a slanted firewall, it was perfect.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rusty3
Eagle Point, OR 97524, USA

The right product for the right job.

October 20, 2014
Received the steering column swivel mount in a timely manner and as described. Had to add an extra rubber bushing to ensure snug fit around steering column; however, it was easy to install and fit-up went well.
Pros:
  • met my needs
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jackie27
Verified Purchaser

This product has great features

July 12, 2014
Great product! Works very well. Would buy again. Worth every penny. Thanks again Speedway!
Pros:
  • Easy Installation
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jim
Verified Purchaser
Ohio

As always an outstanding product

April 03, 2011
The best supplier in America
Pros:
  • Lightweight
  • The best
  • Easy To Use
  • High-Performance
  • Versatile
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jim
Verified Purchaser
Ohio

As always an outstanding product

April 03, 2011
The best supplier in America
Pros:
  • Versatile
  • Durable
  • The best
  • Easy To Use
  • High-Performance
  • Lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

doozcoop
norcal

did the job had a steep angel it worked

May 16, 2010
it worked it was strong job done
Pros:
  • Strong
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Red
Bowling Green KY

Just what I needed

April 22, 2010
Secured my column with out wasting space or costing a fortune
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Maximum angle? What's the maximum angle of the column that can be achieved at the point where the swiveling band hits the firewall or floor?

bigmurf
May 03, 2014

Maximum angle? What's the maximum angle of the column that can be achieved at the point where the swiveling band hits the firewall or floor?

Answers

May 06, 2014
EricM
The maximum angle capability is 17 degrees if tilted toward the clamp bolt or 34 degrees if tilted away from the clamp bolt.
1 answers

What is the inside diameter of the band ? Thanks

None
Virginia
February 14, 2011

What is the inside diameter of the band ? Thanks

Answers

February 17, 2011
John W
You inquired about our lower column mounts under part numbers 4464030, 4464130, and 4464230. The mounts are designed to firmly hold a specific diameter column. The first number is for a 1 ¾” column, second for a 2” column, and the third for a 2 ¼” column. For a secure isolated mount some customers use a this strip of rubber around the column. They will expand over those dimensions for particular applications if needed.
1 answers

what is distance from mounting flange to mounting flange.overall width of mounting flange

gary
murphysboro IL
September 22, 2011

what is distance from mounting flange to mounting flange.overall width of mounting flange

Answers

September 23, 2011
QC
Overall length of the flange is 5 7/8" Distance between flanges 2 1/4" Assembled Height is 1 1/2" Flange is 1/8" thick Each mounting surface is 1" x 2"
Page 1 of 1

You may also be interested in:

Ididit 2400500040 Steering Column Ball Swivel Lower Mount, 1-3/4 Inch
(Part #4464050)


Mounting your steering column to the firewall or floor can be a real challenge. Ididit's billet aluminum ball swivel style mounts make this task much easier.

Note: This mount may require slight modification to the I.D. of the ball or O.D. of the column end due to variation between manufacturers. It is not for chrome columns.

446-4050 Instructions (PDF)

Ididit 2400800010 Adjustable Steering Column Floor Mount, 1-3/4 Inch
(Part #4462400)


This kit from Ididit offers security and a handsome appearance as well. Floor mount portion includes an adjustable mount with a polished aluminum trim ring with hardware. Then choose what color boot, part # 4462405-color you want and you have everything you need to complete the look. Black, Bone, Brown or Grey boots available.

  1. Select (1) column mount diameter needed.
  2. Select (1) boot color needed, part # 4462405-color.
446-2400 Instructions (PDF)
Universal Steering Column Floor Mount Plate
(Part #91032612)


Universal lower floor mount plate works on all 1-3/4", 2", or 2-1/4" diameter steering columns by simply removing the locking inter rings to the size of your column. Made out of chrome-plated aluminum for a clean finish.

Measures 4-1/2" O.D.

  • 2-1/4" column can make it to about 10 degrees
  • 2" column can make it to about 17 degress
  • 1-3/4" column can make it to about 30 degrees



Speedway Universal Steering Column Mount, 1-3/4 Inch
(Part #91032630)
                        These versatile mounts install at any angle to solidly mount your steering column.
  • Available in 1.75" diameter
  • Choose from black or stainless steel
