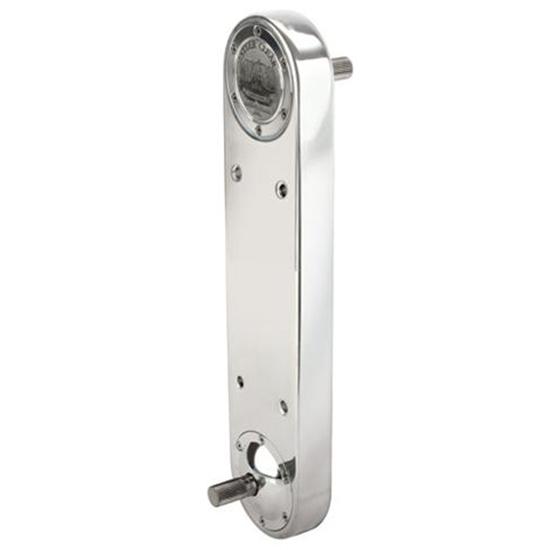

Steer Clear Steering Box Drop, Brushed Finish

SAME DAY SHIPPING! Order within the next 5 hours 45 minutes and receive same day shipping

Free Shipping Free Shipping
Steer Clear Steering Box Drop, Brushed Finish
Steer Clear Steering Box Drop, Brushed Finish
Product Video
Steer Clear Steering Box Drop, Brushed Finish

Click image to enlarge



Details

Reviews

Q & A

What's in the Box

Finally, a solution to the age old steering column/pedals problem. This nifty box provides unlimited options for steering shaft clearance so a high performance engine and headers will fit. Allows you to safely reposition the steering column higher, giving you more room for your feet and pedals.

  • Chain driven action
  • Improved road feel versus typical U-joint setups
  • Mounts on the inside or outside of your firewall
  • Four reinforced through-holes assure a strong, secure installation
  • Uses common 3/4"-36 spline U-joints and couplers
  • 4-1/2" wide X 1-1/2" thick(less shafts) X 4" longer than offsets

Available in 8", 10", 12", 14" or 16" offsets.

2006 Best Engineered New Product at SEMA

Specs

  • 4-1/2" wide
  • 1-1/2" thick (less shafts)
  • 4" longer than the offset
  • Uses common 3/4"-36 spline u-joints and couplers

Warranties

This product carries a lifetime guarantee to be free of defects in material and workmanship by the manufacturer, Wizard Fabrication.

Customer Reviews

Rated 5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

RonK
Casper, WY, USA

Great product, clean look and saves foot

April 11, 2015
This is the second street rod i've used the Steer Clear in. It solves most of my steering and leg room problems. The Steer Clear keeps everything simple and a great clean look.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

franks35
Verified Purchaser

keeping it simple

January 12, 2013
the steer clear box is a very well built product, easy to install , no maintance once installed, it solves all clearance problems in the frame rails
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Lloyd
Lake Geneva, WI

This product is outstanding!

March 27, 2012
Wizard Fabrications stands behind their product. I had purchased a Steer Clear back in 2007. Then the product was designed with a small amount of backlash. Now they are not. The company updated mine for free of charge. Now it works perfectly.
Pros:
  • The steer Clear WORKS
  • Versatile
  • Durable
  • Easy To Use
  • Lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Lloyd
Lake Geneva, WI

This product is outstanding!

March 27, 2012
Wizard Fabrications stands behind their product. I had purchased a Steer Clear back in 2007. Then the product was designed with a small amount of backlash. Now they are not. The company updated mine for free of charge. Now it works perfectly.
Pros:
  • Versatile
  • The steer Clear WORKS
  • Easy To Use
  • Durable
  • Lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 9 answers

1 answers

do they make a shorter steer clear? i need a 6in unit for a 26 t-bucket i dont have the room for the 8in unit. i think a 6in would fit.

geneo
Sussex, NJ 07461, USA
September 12, 2014

do they make a shorter steer clear? i need a 6in unit for a 26 t-bucket i dont have the room for the 8in unit. i think a 6in would fit.

Answers

September 12, 2014
EricM
Sorry the shortest these are offered is 8"
1 answers

Are there any installation instructions on a steer clear steering box?

Hudson
February 22, 2014

Are there any installation instructions on a steer clear steering box?

Answers

February 24, 2014
EricM
Sorry there are not any installation instructions with this unit. It will need to be mounted to the vehicle with the four bolt holes in the case of the unit and a steering shaft connected from the bottom spline to the steering box as well as one from the top spline to the steering column.
1 answers

Will this product be ok with manual rack and pinion 99 S10 496 bbc have abosolutly no room left for anything would this be able to be used with manual rack and pinion My firewall has been modified along with everything else

496S10
SNJ
March 04, 2013

Will this product be ok with manual rack and pinion 99 S10 496 bbc have abosolutly no room left for anything would this be able to be used with manual rack and pinion My firewall has been modified along with everything else

Answers

March 04, 2013
Jason
Steer clear number 8451000 can be used with any steering gear or rack in manual or power without issues. It is a 1 to 1 ration so steering gear or rack ratio will not be changed.
1 answers

What steering column do you use with this set up?

Toyrcr
Las Vegas
January 31, 2013

What steering column do you use with this set up?

Answers

February 01, 2013
Jason
The steer clear box normally uses a shorty column such as number 4461216 is used along with the appropriate U-joint but other length columns could be used depending on your application requirements.
1 answers

Is this box certified & street legal? Please respond! Thanks, Roy R, Boston, NY

Buster
Boston, NY
June 18, 2011

Is this box certified & street legal? Please respond! Thanks, Roy R, Boston, NY

Answers

June 21, 2011
John
These steer clear box are the answer to many hot rodders needs. They have been used for years to give the needed steering clearance needed on modern day hot rods. The product received the product of the year award in 2006 at SEMA. They are NOT however DOT approved or meet NSRA tech requirements.
1 answers

is this clear steer box DOT certified. nsra tells me it is not alloud on street rods and will not pass nsra safety inspection?

jesse (LONG TIME STREET RODDER)
wake forest n c
May 23, 2011

is this clear steer box DOT certified. nsra tells me it is not alloud on street rods and will not pass nsra safety inspection?

Answers

May 25, 2011
John
These steer clear boxes have been proven for years in street rod use and received rewards from organizations such as SEMA for best product reward. However, they are not DOT approved and they do not meet NSRA tech.
2 answers

What is the thickness?

Blackfoot Idaho
January 13, 2012

What is the thickness?

Answers

January 13, 2013
franks35
1 1/2 inchs
January 13, 2012
Jason
This is 1-1/2" thick
1 answers

Can this be used with a Vega steering box and pitman arm on a 1930 Ford Model A with drop axle set up? I imagine a rod being connected from the bottom shaft of this to another vega type steering box and pit man arm for a cross steering set up. Can't find any directions for usage.

Gremyen Reaper
Wichita Ks
July 17, 2015

Can this be used with a Vega steering box and pitman arm on a 1930 Ford Model A with drop axle set up? I imagine a rod being connected from the bottom shaft of this to another vega type steering box and pit man arm for a cross steering set up. Can't find any directions for usage.

Answers

July 20, 2015
Eric
Expert
This steer clear is intended for use on hot rods with cross steering such as your Model A with a Vega box. This steer clear is mounted just in front of the firewall. A shaft or steering column is connected to the top and allows for leveling out the steering column. The bottom connection will have a U-joint and steering shaft connected to it and routed to the input shaft of your Vega steering box.
Page 1 of 1
