Steel Weld Bung for 1 Inch I.D. Tube, 11/16-18 RH

Specs
Material Type:
Steel
Overall Length:
1.75
Sold in Quantity:
Each
Diameter Small End :
1.00
Diameter Big End:
1.375
Thread Length:
1.00
Thread Pitch:
11/16"-18
Threads:
RH Female

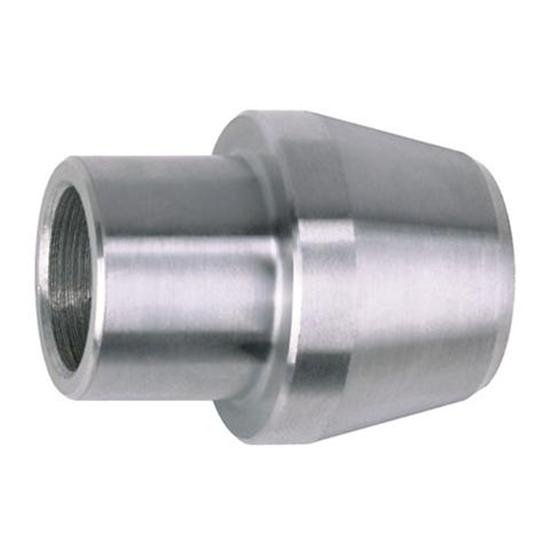

Steel Weld Bung for 1 Inch I.D. Tube, 11/16-18 RH

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Heavy duty steel weld bungs for splitting wishbones, custom tie rods or custom suspension control arms. These weld bungs are 1” O.D. where they slide into the steel 1" I.D. tubing.

Customer Reviews

Rated 4.9 out of 5 by 7 reviewers.
RATING BREAKDOWN
7 reviews
5 Stars
6
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

bostonbill
Verified Purchaser
Grant, NE 69140, USA
Product Rating

Previously Purchased Many

November 01, 2014
Absolutely perfect for the purpose. High quality. Will purchase again when needed.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

vintagecarguy
Verified Purchaser
Kentucky
Product Rating

Good quality

February 07, 2011
I am using this bung for a drag link and a panhard bar on home built 1931 Chevy coupe. I had one that I needed to run a tap through. The machining is good.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Matt
Verified Purchaser
Michigan
Product Rating

Worked Great!!

April 03, 2012
The first one I received had some damaged threads on it, but I had to order more anyways I just let them know what was going on and they sent me another free of charge!! This place is amazing never had a company do this. I will be purchasing alot more from this site in the future!
Pros:
  • Threads where good
  • Overall Design
  • Worked Perfect
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Antny
Verified Purchaser
Westchester County, NY
Product Rating

excellent product

October 27, 2011
i used these to fabricate steering tie rods
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Eugene the Jeep
Verified Purchaser
OHIO* buckeyes blow
Product Rating

Excellent product

April 21, 2011
I needed this part for my stock jeep tie rod. [...] great quality. Pricing is great [...]
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Chooseanickname
Verified Purchaser
Product Rating

Great quality and value

October 02, 2014
I used these for my jeep wrangler steering. They are great quality and an awesome price.
Pros:
  • Quality
  • Price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

mockie
Verified Purchaser
Product Rating

quality product

April 07, 2015
Good quality product. Easy thick surface to weld to.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0
