Steel Lower Ball Joint Sleeve, K6117 Style

Specs
Material Type:
Steel
Overall Height:
1.00
Sold in Quantity:
Each
Overall Thickness:
.11
Inside Diameter:
1.99
Outside Diameter:
2.20

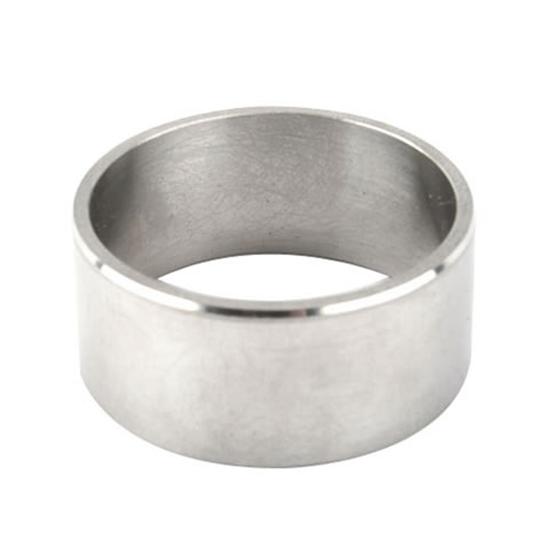

Steel Lower Ball Joint Sleeve, K6117 Style
Steel Lower Ball Joint Sleeve, K6117 Style

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This steel ball joint sleeve is used to build or repair control arms. Slide-in style.


Item Details

Fits 917-20038-1 lower ball joint
2.198" O.D.
1.989" I.D.
1" Height

You may also be interested in:

Howe 22419 1971-Up GM Truck K6117 Style Lower Ball Joint / Alum Cap
(Part #91722419)


Howe precision ball joints offer the precision of a spherical bearing with the misalignment range of a ball joint.  They are easily rebuildable and adjustable. The alloy steel ball studs are process coated for low friction and long wear.  You can feel the difference in smooth travel and easy steering effort.

These are press-in style and cross reference Speedway part #91720038-1 and MOOG #K6117.

  1. These ball joint use a 1973-95 GM Truck taper, but they have a longer (taller) stud than the stock GM part. The taller stud changes the pivot point due to its length, which in turn raises the car's roll center. Very common ball joint on IMCA Modifieds.
  2. Lower ball joint fits most stut cars, 1971-1976 Impala and most wide-type dirt cars. Press-In.
  3. Fits most popular racing and passenger car spindles.

Precision Ball Joints Illustration (GIF)

Speedway 1973-95 Truck K6117 Style Repl Lower Ball Joint
(Part #91720038-1)


These ball joint use a 1973-1995 GM Truck taper, but they have a longer (taller) stud than the stock GM part. The taller stud changes the pivot point due to its length, which in turn raises the car's roll center. Very common ball joint on IMCA Modifieds.

This ball joint is equivalent to Moog K6117. It has an outside diameter of 1.975" and can be used with our sleeve 910-34818 to replace the 1971-1976 Impala lower ball joint 917-20038 when a taller ball joint is desired.

Lower ball joint fits most stut cars, 1971-1976 Impala and most wide-type dirt cars. Press-In.



AFCO 20038-1LF Low Friction 1973-95 Truck-Style Lower Ball Joint, Long
(Part #106200381LF)


AFCO Low Friction Ball Joints are designed with 2 ft. lbs. of resistance, the force required to move the stud of the ball joint.  Compare this with standard replacement joints, with as high as 50 ft. lbs. of resistance.  A difference you can feel!

It is critical to handling that suspension components be as free as possible to move.  Low friction ball joints allow the suspension to give rather than allowing the tire to bounce over rough surfaces.  Low tire pressures magnify the need to minimize friction in the suspension.

These are NOT a direct fit in the stock pickup A-frames. Used on IMCA cars to raise roll center (raised pivot point).

  1. These ball joint use a 1973-95 GM Truck taper, but they have a longer (taller) stud than the stock GM part. The taller stud changes the pivot point due to its length, which in turn raises the car's roll center. Very common ball joint on IMCA Modifieds.
  2. Lower ball joint fits most stut cars, 1971-1976 Impala and most wide-type dirt cars. Press-In.
  3. Fits most popular racing and passenger car spindles.



AFCO 20038-1 Standard 1973-95 Truck-Style Lower Ball Joint
(Part #106200381)


Not all ball joints are created equal.  That's why AFCO uses the best components from the top manufacturers.  There are many different design characteristics and manufacturing processes that account for the quality and performance of ball joints.  These joints will give you the AFCO advantage!

Used on IMCA cars to raise roll center (raised pivot point).

  1. These ball joints use a 1973-95 GM Truck taper, but they have a longer (taller) stud than the stock GM part. The taller stud changes the pivot point due to its length, which in turn raises the car's roll center. Very common ball joint on IMCA Modifieds.
  2. Lower ball joint fits most stut cars, 1971-1976 Impala and most wide-type dirt cars. Press-In.
  3. Fits most popular racing and passenger car spindles.
QA1 1210-108 K6117 Style Lower Ball Joint
(Part #72110108)


QA1 also offers its Ultimate Ball Joint in a Press-In Style for a variety of racing applications. A 100% owner rebuildable design, the Ultimate Ball Joint is a QA1 exclusive. This ball joint is self-lubricating.

  •  73-95 Chevy Pickup
Howe 22419S 1971-Up GM Truck K6117 Style Lower Ball Joint/Steel Cap
(Part #917224191)


Howe Precision Ball Joints offer the precision of a spherical bearing with the misalignment range of a ball joint. Their rugged steel housings will withstand impacts that can destroy other ball joints. Plus, even if you manage to damage the joint, they are fully rebuildable. The alloy steel ball studs are process coated for low friction and long wear. You will feel the difference in smooth travel and easy steering effort.

These are NOT a direct fit in the stock pickup A-frames. Used on IMCA cars to raise roll center (raised pivot point).

  1. These ball joint use a 1973-95 GM Truck taper, but they have a longer (taller) stud than the stock GM part. The taller stud changes the pivot point due to its length, which in turn raises the car's roll center. Very common ball joint on IMCA Modifieds.
  2. Lower ball joint fits most stut cars, 1971-1976 Impala and most wide-type dirt cars. Press-In.
  3. Fits most popular racing and passenger car spindles.

Precision Ball Joint Illustration (GIF)

QA1 1210-108 K6117 Style Lower Ball Joint Kit w/ Extended Length Stud
(Part #721101081)

Speedway Motors now offers QA1 Ultimate Ball Joints with extended length studs to optimize your front end. Various ball stud lengths are available for easy geometry changes to fine tune your roll center.

QA1 also offers its Ultimate Ball Joint in a Press-In Style for a variety of racing applications. A 100% owner rebuildable design, the Ultimate Ball Joint is a QA1 exclusive. This ball joint is self-lubricating.

  • 73-95 Chevy Pickup
  • Choose your stud length: Standard, +.100", or .500"
  • Ultimate Low Friction Operation -Infinite preload adjustment allows breakaway torque to be set as low as 0 ft. lbs.  Completely smooth, bin-free operation.
  • Wear Resistant Design - Precision tolerance ball to race conformity results in even load distribution for unsurpassed wear resistance.  Precision ground 52100 bearing steel race ensures long life and ultra-smooth operation.
  • On-the-Car Adjustability - Infinite preload adjustment. No need to remove the ball joint from the car for adjustment.
  • Self-Lubricating - Fully greasable enhanced by self-lubricating components to ensure smooth operation.
  • Owner Rebuildable - Rebuilding is simple.  All parts replaceable at economical prices.
