Steel Upper Ball Joint Sleeve, K772 Style

Specs
Material Type:
Steel
Overall Height:
1.000
Sold in Quantity:
Each
Overall Thickness:
.265
Outside Diameter:
2.365
Notes
Accepts ball joint # 91034323 or Moog # K772.

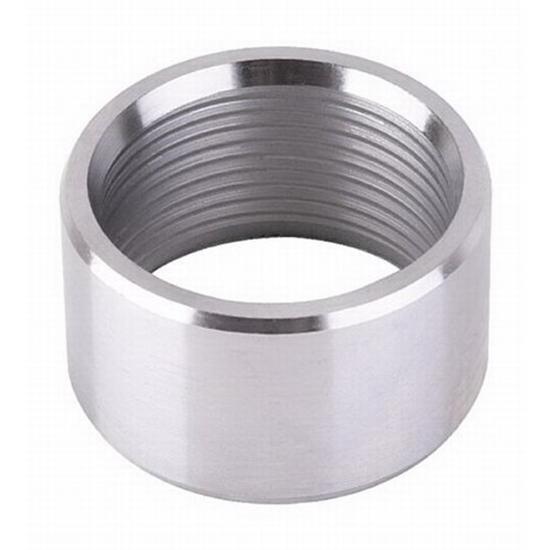

Steel Upper Ball Joint Sleeve, K772 Style

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This plain finish, mild steel ball joint sleeve is used to build or repair control arms. Screw in style.

Item Details

Fits 910-34323 upper ball joint
2.365" O.D.
0.265" Thickness
1" Height

Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

zooterincostamesa
Verified Purchaser
Costa Mesa, CA, USA
Product Rating

solve your ball joint problems

February 08, 2013
Being a low buck racer I bought some very nice, high dollar, ball joints that came from a race team. $6.00 each! The things had to fit my Lincoln upper arms? Speedway has an answer with their ball joint sleeves. At first I thought they were a little sloppy, however, when welded they shrink to a perfect fit. Thanks for a great little helper item that would have taken me all day to make myself and would have been too tight after I welded them. Good stuff Speedway!
Pros:
  • ready to weld
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dave
Verified Purchaser
Kempner, TX
Product Rating

Perfect for fabricating..

December 24, 2011
One of the easiest ways to custom build control arms.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

J B fab shop
Verified Purchaser
Sheridan, CA
Product Rating

Decent part at a decent price

May 17, 2011
They use a little bit thicker material than others i have used so you have more durability and a bit more wieght. the threads are slightly to big so the balljoint will fit just a bit sloppy, but when you weld on it it doesnt warp enough to have issues threading the balljoint on and off, like others that have seased up on me. Overall i have been happy with these.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

tiny
Sf Sd
Product Rating

Great for the price.

January 23, 2010
Very usefull in building forunt suspension part .
Pros:
  • Worked Perfect
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 5 answers

Will this fit a Moog mp1002 ball joint? The moog mp1002 is a nascar, arca etc. ball joint, and will that joint screw into this sleeve?

1 answers
hahs18
March 21, 2015

Will this fit a Moog mp1002 ball joint? The moog mp1002 is a nascar, arca etc. ball joint, and will that joint screw into this sleeve?

Answers

March 24, 2015
EricM
Yes this sleeve will fit Moog MP1002 and K719 as well as the K772 ball joint.

Hi, Will this sleeve (91034816) fit a Moog K778 ball joint? Thanks!

1 answers
July 21, 2011

Hi, Will this sleeve (91034816) fit a Moog K778 ball joint? Thanks!

Answers

July 22, 2011
Jason
Sleeve part number 91034816 is for Moog ball joint number K727

What is the type of steel used in the product? In the photo it looks like perhaps a stainless alloy or a nichol steel. My main concern is welding to this sleeve when using mild steel for the control arms portion.

3 answers
Carlsbad, CA
May 22, 2011

What is the type of steel used in the product? In the photo it looks like perhaps a stainless alloy or a nichol steel. My main concern is welding to this sleeve when using mild steel for the control arms portion.

Answers

February 09, 2013
zooterincostamesa
I think they are mild steel and they did weld well with my mig welder using .035 70s steel wire and CO2 gas. They look to be machined from DOM tube and the nice shiney look is because they are machined on all sides. It's clean and ready to weld in a sealed pack.
June 01, 2011
BEn From Tunisia
It's already writtn: MILD STEEL. Then you can weld on
May 25, 2011
Tech
This is plain mild steel.
Page 1 of 1
