Standard Transmission Cooler

Price:$19.99
Standard Transmission Oil Cooler
Price:
$19.99
EA
In Stock
Item #:
91023101
Item Details:
5" x 16-3/4" x 3/4" 4-Pass

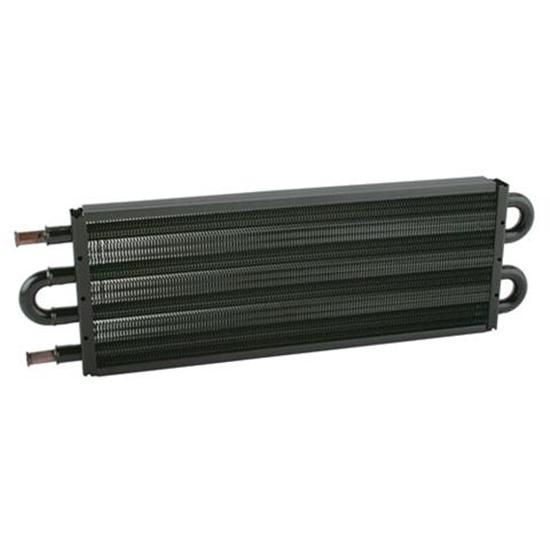

Standard Transmission Cooler
Click image to enlarge Click image to enlarge
No video at this time.


Use this 4-pass standard transmssion cooler in place of radiator lower tank cooler, or as a supplement to it.

  • 5" Tall x 16-3/4" Wide x 3/4" Thick
  • Includes 4 ft. rubber hose (3/8" I.D.), 4 stainless hose clamps and nylon mounting kit

Transmission Cooler Installation Instructions (PDF)

  • 91023101
    MFG. Part #
    13202
    Overall Length
    16.680"
    Overall Width
    5.190"
    Overall Thickness
    0.880"
    Core Width
    4.750" (4 3/4")
    Core Height
    13.000"
    Core Thickness
    0.750" (3/4")
    Inlet fitting
    0.460
    Outlet Fitting
    0.460
    Tube Size
    0.500" (1/2")
    Tube Count
    4
    Material Type
    Aluminum
    Finish
    Powder Coat
    Sold in Quantity
    Each
    Notes
    Includes 4 ft. of 3/8" I.D. rubber hose, (4) hose clamps, and mounting kit.
