Standard Steel RH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole

SAME DAY SHIPPING! Order within the next 13 hours 4 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Width:
1.5
Sold in Quantity:
Each
Overall Thickness:
0.75
Finish:
Natural
Hole Diameter:
0.6250
Inside Diameter:
0.625
Thread Pitch:
11/16"-18
Threads:
RH Male

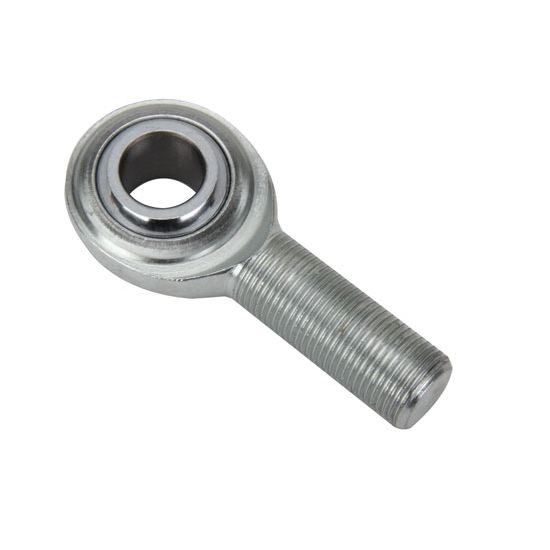

Standard Steel RH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Every once in a while someone wants to use a rod end in place of a 11/16" tie rod. We listened to the requests and built them with 11/16"-18 RH or LH thread and accept a 5/8" thru-bolt.  Center of hole to end of threads 2-5/8"  thead length is 1-1/2".

Customer Reviews

Rated 4.5 out of 5 by 6 reviewers.
RATING BREAKDOWN
6 reviews
5 Stars
4
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dirty Dave
Verified Purchaser
Southern Maryland
Product Rating

Too pretty for a Rat

December 02, 2011
I will use these but they are more modern looking than I would have hoped.
Pros:
  • Adjustable
  • Easy To Install
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Bruce
Kansas City, MO
Product Rating

I would buy this product again.

February 01, 2010
Used on my wish bone ends with bungs.
Pros:
  • Just a great piece
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dragster
Verified Purchaser
U.S.
Product Rating

heim joint

April 28, 2011
Decen piece for everyday driver. Wouldn't recommend for more than 350hp apps though, go with precision pieces for that.
Pros:
  • Easy To Install
  • Improves Launching
  • Adjustable
  • Improves Handling
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

cookie221
Verified Purchaser
alb. n.m.
Product Rating

just what i needed

May 01, 2011
you always have what i need
Pros:
  • Easy To Install
  • Just what I needed
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Texasboy112
Verified Purchaser
Product Rating

Standard Steel RH Heim Joint Rod Ends, 1

April 06, 2015
Well made, looks just fine. What can I say it works...
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Steve
Verified Purchaser
Verified Reviewer
Nampa, Idaho
Product Rating

excellent

May 12, 2015
Superb units. but make sure you order the jam nuts For them.
Pros:
  • Looks Great
  • Perfect Fit
  • Looks 8
  • Excellent Manufacturing
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
1750128

Product Q&A

1 questions : 1 answers

1 answers

What is the maximum misalignment angle on this rod end?

Russ
Spokane, WA
March 16, 2011

What is the maximum misalignment angle on this rod end?

Answers

March 21, 2011
Jason
The maximum misalignment angle is 24 degrees.
