Standard 1926-27 T Roadster Body w/o Doors and Floor

SAME DAY SHIPPING! Order within the next 59 minutes and receive same day shipping

Specs
Material Type:
Fiberglass
Overall Length:
90.00
Sold in Quantity:
Each
Garage Sale:
No
Body Width:
49.00
Body Height:
24.00
Firewall Width:
29.00
Notes
No floor.
Standard 1926-27 T Roadster Body w/o Doors and Floor
Standard 1926-27 T Roadster Body w/o Doors and Floor
Standard 1926-27 T Roadster Body w/o Doors and Floor
Standard 1926-27 T Roadster Body w/o Doors and Floor

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

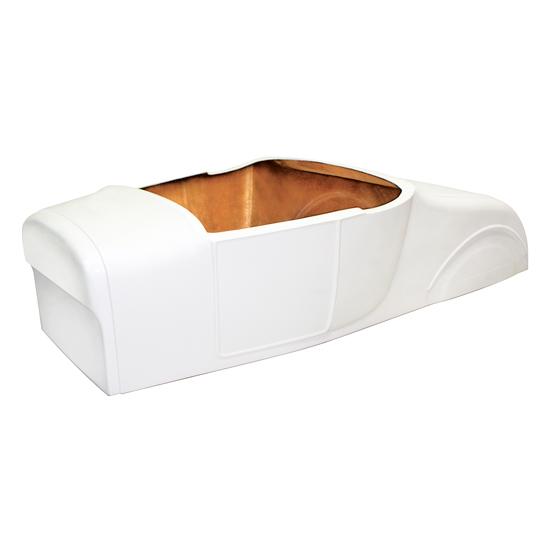

Our Standard '26-'27 T body is a rugged, one-piece design (no doors). It features a molded turtle deck and firewall, and no foor.

  • Total Length: 90"
  • Firewall Width: 29"
  • Firewall to Back of Dash: 16-1/2"
  • Firewall to Back of Seat: 55"
  • Firewall to Center Line of Rear Axle: 75"
  • Widest Point of Body: 49"
  • Overall Height of Body: 24"
  • Rear Width: 42"

This product is made to order.  Please allow three to four weeks for lead time.

Truck Freight Shipping Charges Apply - click here for details

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

John6
Verified Purchaser
Coralville, IA, USA

Best fiberglass body yet

October 05, 2014
I have built 5 other glass bodied car and this body is by far the best quality that I have used yet. I paid over $8000 for a Willys body that took 100 hours of body shop labor to get paint ready. This body is almost paint ready to start with, There are virtually no parting seams and the quality of fit between the other
Pros:
  • Excellent price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 6 answers

1 answers

floor your 1927 roadster body does it have flange on the inside of the body i want to channel the body over the frame thank you for your time

burt
5106 West Strong Street, Chicago, IL 60630, USA
January 14, 2015

floor your 1927 roadster body does it have flange on the inside of the body i want to channel the body over the frame thank you for your time

Answers

January 14, 2015
EricM
The 26/27 Roadster body does have a flange around the inside of the body about 1-1 ¼” wide for laying the floor on. If channeling the floor the flange will have to be partly removed.
1 answers

Does this body include an instrument panel/dash?

January 25, 2012

Does this body include an instrument panel/dash?

Answers

January 26, 2012
Jason
THIS BODY HAS A FLANGE AROUND THE BOTTOM THAT CAN BE USED TO ATTACH THE FLOOR. THE FLANGE IS APP.2"WIDE. THERE IS ALSO A FLANGE MOULDED-IN TO ATTACH A DASH, BUT THERE IS NO DASH.
1 answers

Are there any good insturctions on how to mount this body to the t bucket frame? The body is much wider than the frame. Would I have to fabricate extension brackets..

October 14, 2011

Are there any good insturctions on how to mount this body to the t bucket frame? The body is much wider than the frame. Would I have to fabricate extension brackets..

Answers

October 17, 2011
John
Part # 9002700 This body has NO floor and a floor will need to be installed to allow mounting to the frame. Depending on whether you are sitting on top of the frame or channeling it down over the frame would dictate location of the floor for fiberglassing into the body. We also offer 7152755 with a flat floor installed for your preference. With floor installed the body will sit flat on the frame and you can use expanding mounts or bolt directly to the frame.
1 answers

Does the trunk open? also will the 23 interior Item #7151100 fit with the seat back trunk blockoff panel Item #97327900?

brad
Lincoln, ne
October 08, 2011

Does the trunk open? also will the 23 interior Item #7151100 fit with the seat back trunk blockoff panel Item #97327900?

Answers

October 10, 2011
John
Part # 9002700 This 26-27 T roadster is a molded one piece body and the standard does NOT have opening doors or trunk lid. We do offer a deluxe kit with opening doors but the deck is stationary.
1 answers

Do you offer an opening door kit for the 27 roadster body?

Steve
October 09, 2012

Do you offer an opening door kit for the 27 roadster body?

Answers

October 10, 2012
Jason
Sorry, we currently do not offer a door kit for this body
1 answers

I am mounting the 27 body on a model A frame. It will be mounted on top of the frame. Will the lower rear roll pan hide some of the rear end and axle The rear spring has a six inch kick up with a spring over. Where can I get a dash panel? The lower rear roll panel is part no.900-2721. Thanks Steve

Steve
October 09, 2012

I am mounting the 27 body on a model A frame. It will be mounted on top of the frame. Will the lower rear roll pan hide some of the rear end and axle The rear spring has a six inch kick up with a spring over. Where can I get a dash panel? The lower rear roll panel is part no.900-2721. Thanks Steve

Answers

October 10, 2012
Jason
The rear roll pan can cover the end of the frame or the majority of it. So, the amount of the rear end visible from the rear will depend on how far the axle housing sits up into the kick up. With a 3 inch axle housing tube and the spring compressed so that the housing tube sits even with the bottom of the frame then the only thing visible from the rear would be the pumpkin portion of the housing. The dash is usually made from wood or other products per the customers preference and abiltities
