Stainless Tie Rod/Drag Link Kit with Plain 11/16 Tie Rod Ends

SAME DAY SHIPPING! Most orders ship within 24 hours.

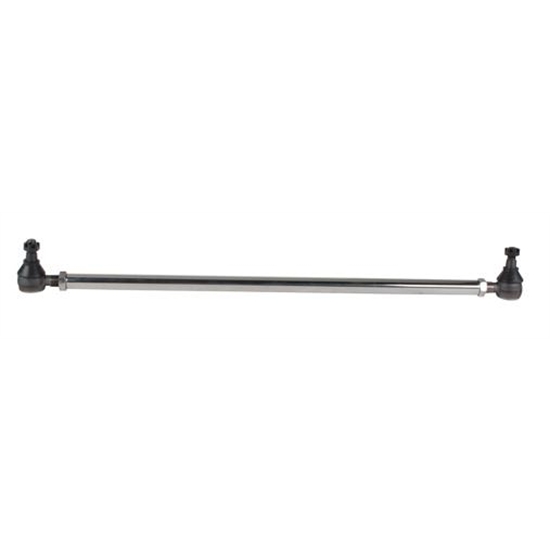

Stainless Tie Rod/Drag Link Kit with Plain 11/16 Tie Rod Ends

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box



These tie rod or drag link kits are pre-cut and tapped lengths of 7⁄8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.

Select your length based on the center-to-center of the tie rod ends, which will also be the eye-to-eye distance between the steering arms (the acutal tube will be 3" shorter than length selected). At selected length, the link will be adjustable from 1/2" shorter to 3/4" longer.

Measuring Tie Rod or Drag Links (GIF)

Tapered Steering Arm Illustration (GIF)

Note: Always use anti-seize to prevent galling the treads during final installation.



Item Details

w/ Plain tie rod ends

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

How do I purchase just the stainless tie rod (48") #91636 without the tie rod ends? I purchased the tie rod ends earlier. Thanks Doug

November 24, 2011

How do I purchase just the stainless tie rod (48") #91636 without the tie rod ends? I purchased the tie rod ends earlier. Thanks Doug

Answers

November 28, 2011
Jason
The tie rod is part #91636 and then specifiy length
Page 1 of 1
