Unisteer 8050230 Steering U-Joint, 9/16 Inch-26 Spline to 3/4 Inch DD
Click image to enlarge
Q & A (2)
What's in the Box

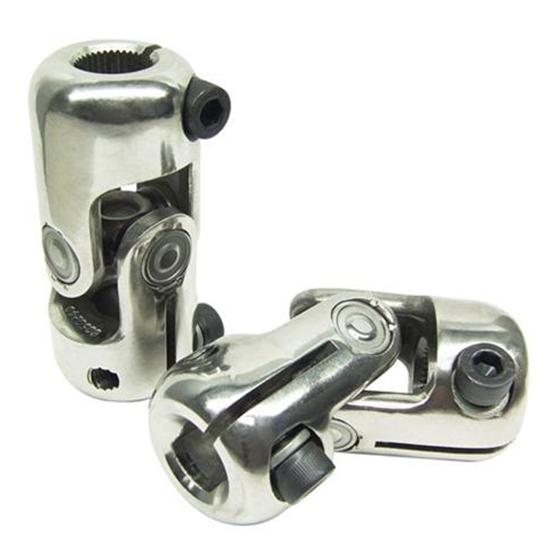

These polished stainless steel U-joints look great and use a pinch bolt on each end for easy installation. These universal joints are 3-3/4 inch in length and have a 1.650 inch outside diameter.
- The OD is 1.650" (41.90mm)
- 3-3/4" in total length
This size of spline works with Unisteers Cross Steer Rack & Pinion, Prostock Rack, and Manual Camaro Rack & Pinion and is also the size of manual Mustang Style Rack & Pinions.Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.
NOTE: These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.
Item Details9/16"-26 Spline to 3/4" DD
Polished Stainless Steel
ApplicationWhen purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.
Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.
Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.
