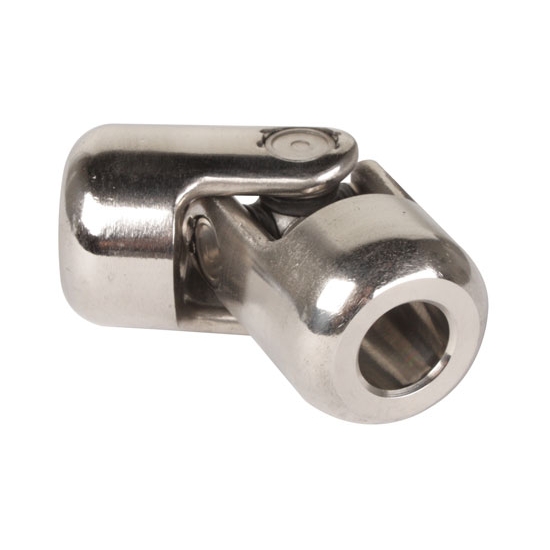

Unisteer 8050420 Steering U-Joint, 3/4 Inch Smooth to 3/4 Inch Smooth

Specs
Sold in Quantity:
Each
Finish:
Polished
Material Type:
Stainless Steel
End #2:
3/4 inch Round
End #1:
3/4 inch Round
MFG. Part #:
8050420
Set Screw Included:
Yes
Overall Length:
3.66
Outside Diameter:
1.70
Max Operating Angle:
30
Unisteer 8050420 Steering U-Joint, 3/4 Inch Smooth to 3/4 Inch Smooth
Unisteer 8050420 Steering U-Joint, 3/4 Inch Smooth to 3/4 Inch Smooth
Unisteer 8050420 Steering U-Joint, 3/4 Inch Smooth to 3/4 Inch Smooth

Click image to enlarge

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted. These steering universal joints are 3-3/4 inch in total length and have a 1.650 inch diameter.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Item Details

Stainless Steel
Not a pinch bolt style u-joint

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Notes

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

will the 3/4 shaft need to be groved for the pinch bolt to go thru

dons body shop
urbana, ohio
July 06, 2011

will the 3/4 shaft need to be groved for the pinch bolt to go thru

Answers

July 06, 2011
Jason
No, bolt is off to the side
