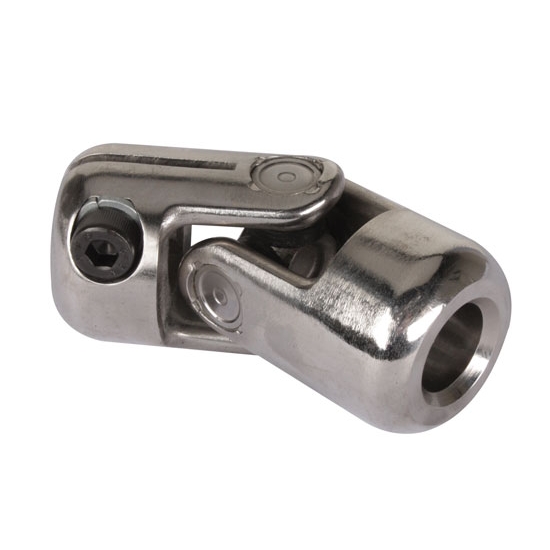

Unisteer 8050330 Steering U-Joint-3/4 Inch Double D to 3/4 Inch Smooth

SAME DAY SHIPPING! Order within the next 1 hour 47 minutes and receive same day shipping

Specs
Sold in Quantity:
Each
Finish:
Polished
Material Type:
Stainless Steel
End #2:
3/4 inch Round
End #1:
3/4 inch DD
MFG. Part #:
8050330
Set Screw Included:
Yes
Overall Length:
3.75
Outside Diameter:
1.650
Max Operating Angle:
30
Unisteer 8050330 Steering U-Joint-3/4 Inch Double D to 3/4 Inch Smooth
Unisteer 8050330 Steering U-Joint-3/4 Inch Double D to 3/4 Inch Smooth
Unisteer 8050330 Steering U-Joint-3/4 Inch Double D to 3/4 Inch Smooth

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These polished stainless steel U-joints look & function beautifully and use non-pinch bolts which will need to be either welded, cross-drilled and pinned or bolted. These steering universal joints are 3-3/4 inches in length and have an outside diameter of 1.650 inches.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Item Details

Stainless Steel
This u-joint contains a safety feature that requires the DD steeringshaft to be notched for pinch bolt clearance. Once notched, the pinchbolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Notes

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.
