Unisteer 8050880 Steering U-Joint, 3/4 Inch-36 Spline to 3/4 Inch DD

Specs
Sold in Quantity:
Each
Finish:
Polished
Material Type:
Stainless Steel
Spline Count:
36
End #1:
3/4 inch DD
MFG. Part #:
8050880
Set Screw Included:
Yes
Overall Length:
3.75
Outside Diameter:
1.650
Max Operating Angle:
38

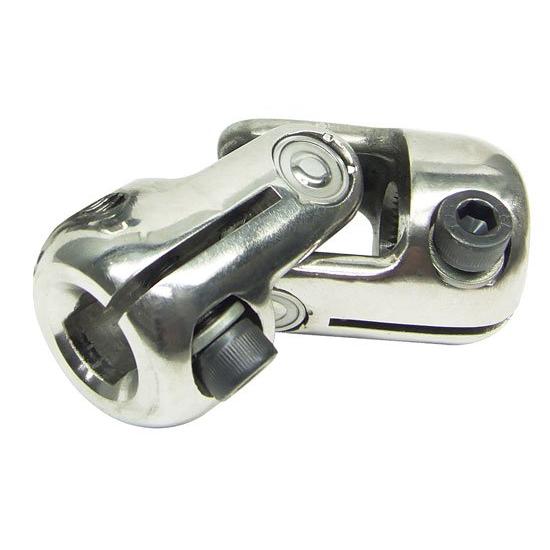

Unisteer 8050880 Steering U-Joint, 3/4 Inch-36 Spline to 3/4 Inch DD

Click image to enlarge

Details

Reviews (5)

Q & A (0)

What's in the Box

Info

These polished stainless steel steering U-joints look great and use a pinch bolt on each end for easy installation.

This particular steering universal joints Size is 3/4"-36 count spline by 3/4"DD. This is the size that is used on Ford Power rack & pinions such as the Mustangs. This U-joint uses pinch bolt fasteners on either side.

  • The OD is 1.650" (41.90mm)
  • 3-3/4" in total length
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

NOTE:  These u-joints contain a safety feature that requires the DD steering shaft to be notched for pinch bolt clearance. Once notched, the pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit.

Item Details

'This particular U-Joint''s Size is 3/4"-36 count
spline by 3/4"DD. This is the size that is used on
Ford Power rack & pinions such as the Mustangs.
This U-joint uses pinch bolt fasteners on either side.'

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2

Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Notes

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Customer Reviews

Rated 4 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
1
RECOMMEND THIS PRODUCT:

The Wiz
Verified Purchaser
Hugo MN

Shine on

April 12, 2016
Stainless steel is the only way to go
Pros:
  • 1
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

David
Verified Purchaser
Ocala, FL

POOR UNISTEER QUALITY

April 07, 2016
Clearance of .055 Thousants to DD shaft/Worthless and unsafe part Great shipping tho
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Hi David, thanks for your feedback. The pinch bolt MUST be torqued to 45 ft/lbs to ensure a tight fit / proper installation.
Macs Speed
Verified Purchaser
Verified Reviewer
Auckland New Zealand

Great product and a positive way to locate on the shaft.

August 03, 2015
I have used many other products and have found the Unisteer pinch bolt clamp system to be the best. This system ensures you machine the indexing groove in the shaft to correctly fit the pinch bolt. Other systems require only a tightened grub screw that many builders don't bother to drill there shafts to locate correctly.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

SIR
Verified Purchaser
SCROTUM PA.

SPLINES ARE NOT CENTERED FOR PROPER ENGA

July 21, 2012
NICE PRODUCT JUST THE SPLINES DONT SET WELL WITH ME .I WORK WITH THIS EVERYDAY.JUST SPLINE STRENGTH SUFFERS.WOULD U FLY IN AN AIRPLANE WITH ONE WING ?????
Pros:
  • Versatile
  • Durable
  • Lightweight
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rodney
Houston, TX

Stainless Steering UJoint

August 27, 2010
Used on 39 Chevy Street Rod, switching from manual Mustang II rack to power Mustang II steering rack, the slit joint make a great solid connection and allows the steering shaft assembleto be removed
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0
