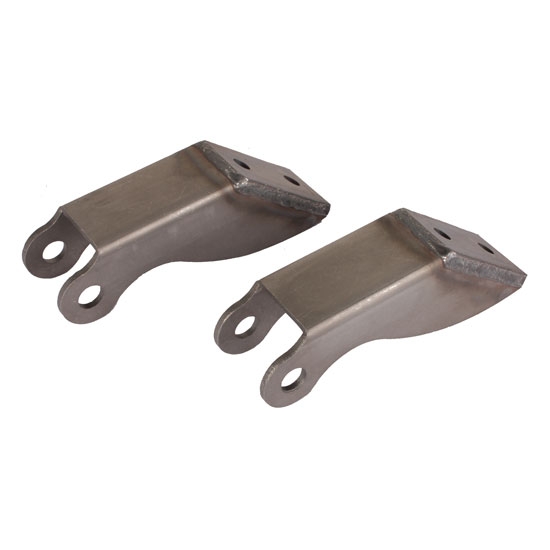

Stainless Steel Upper Front Shock Bracket, Unpolished

Specs
Material Type:
Stainless Steel
Overall Height:
6.23
Overall Width:
1.73
Overall Length:
2.05
Sold in Quantity:
Pair
Overall Thickness:
.16
Finish:
Natural
Hole Diameter:
.50
Center to Center:
1.57
Inside Width:
1.38
Garage Sale:
No
Notes
The perpendicular distance from the plane of the plate which contains the two frame mount holes to the centerline of the shock mount hole is 3-1/4.
Stainless Steel Upper Front Shock Bracket, Unpolished
Stainless Steel Upper Front Shock Bracket, Unpolished
Stainless Steel Upper Front Shock Bracket, Unpolished

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These trick & classy stainless steel brackets feature hidden mount bolt holes.

Customer Reviews

Rated 4.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

IowaMercMan
Cedar Rapids
Product Rating

Will not fit a Model A with fenders

August 18, 2012
This is a really nice part, well-made, sturdy. It will not fit a 30-31 model A with fenders, however. The angle/height at shock mounting point is all wrong for that.
Pros:
  • Very Well made
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

papataylor
Verified Purchaser
Oak Harbor, WA
Product Rating

Shock mount

March 04, 2011
Not sure who welds for Speedway but they do an outstanding job. Nice mounts. Beefy, quality American part. Gonna be so cool on my Hot Rod.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

lowrey
Verified Purchaser
Otho,Ia
Product Rating

[...]

February 21, 2011
[...]
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

8 questions : 9 answers

will this fit my 1931 model a ford with fenders will this bracket fit my 31 model a ford with fenders ??? if not which shock mount will fit my car thank you for youe time bill

1 answers
quest1946
kenosha
May 09, 2014

will this fit my 1931 model a ford with fenders will this bracket fit my 31 model a ford with fenders ??? if not which shock mount will fit my car thank you for youe time bill

Answers

May 12, 2014
EricM
These upper shock brackets are a nice mount for a model A or 32 running full fenders. The angle outward allows clearance for the fenders that bolt to the top of the frame rails. Be sure to position correctly by having the fenders installed when mocking up.

can I use these mounts as part of a conversion to tube shocks on my 46 chevy 1/2ton from the dual action factory shocks? im converting the front shocks on my 46 chevy pickup from knee action factory shocks to tube shocks and need upper shock mounts and was wondering if these would work as upper shock mounts

1 answers
hoozat
Southampton, PA 18966, USA
March 07, 2014

can I use these mounts as part of a conversion to tube shocks on my 46 chevy 1/2ton from the dual action factory shocks? im converting the front shocks on my 46 chevy pickup from knee action factory shocks to tube shocks and need upper shock mounts and was wondering if these would work as upper shock mounts

Answers

March 10, 2014
EricM
Shock brackets such as 91636004 are one of several that could be used on your 46 Chevy pickup to update the shock style. With a little homework you can determine which upper bracket will work the best. Try to use a bracket that will accept a common length shock to avoid additional expense. Shocks list the extended and compressed lengths or the mounted length which is mid way in the shock stroke. Other brackets to consider are 91036008, 91036009, 91636001,or even number 91636501.

1-total hight and width of mounting surface? 2-size of mounting holes and distance between them ?

1 answers
July 04, 2011

1-total hight and width of mounting surface? 2-size of mounting holes and distance between them ?

Answers

July 05, 2011
QC
THE SHOCK BOLT HOLE IS 1/2"I.D. The perpendicular distance from the plane of the plate which contains the two frame mount holes to the centerline of the shock mount hole is 3 1/4. The overall height of the shock mount is 5 1/4. And the inside width of the shock mount or the width of the shock bushing needed is 1 3/8.

what is the thickness of the metal or guage of material

2 answers
3 Deuces
tucson, az
May 09, 2011

what is the thickness of the metal or guage of material

Answers

June 21, 2011
QC
Made of 6 gauge steel
June 17, 2011
Jason
Top plate is .195" thick and side are .156" thick

Speedway, sorry to bother you with more questions regarding this part. What is the center to center measurement between the hidden frame mounting holes and frame surface area and will/can this part be used in place of Part# 91636001-CHR on front shock mou

1 answers
January 07, 2012

Speedway, sorry to bother you with more questions regarding this part. What is the center to center measurement between the hidden frame mounting holes and frame surface area and will/can this part be used in place of Part# 91636001-CHR on front shock mou

Answers

January 11, 2012
John
Part number 91636004 Several dimensions are listed on our website as follows in hopes to guide in shock mount selection. * Overall Length: 2.05 Inches * Overall Width: 1.73 Inches * Overall Height: 6.23 Inches * Inside Width: 1.38 Inches * Overall Thickness: .16 Inches * Hole Diameter: .50 Inches * Center to Center: 1.57 Inches * Material Type: 6 Gauge Steel Construction * Sold in Quantity: Pair * Notes: The perpendicular distance from the plane of the plate which contains the two frame mount holes to the center line of the shock mount hole is 3 1/4 These should fit in the confines of the Model A frame dimensions and an alternate number 91636001is also available and totally up to personal preference and needs. Headlight mount # 91061019 is designed to be used with the 91636001 shock mount but could be modified for use on the 91636004 if desired. Custom shock mounts and headlight mounts are not available and up to customer/builder fabrication.

Distance center to center for frame mounting holes.

1 answers
December 06, 2011

Distance center to center for frame mounting holes.

Answers

December 07, 2011
Zach
Speedway part number 91636004/91636005. The center to center measurement of the mounting holes is 3.25"

What is the distance center to center and ID of frame mounting holes on shock mount # 916-36004.

1 answers
December 05, 2011

What is the distance center to center and ID of frame mounting holes on shock mount # 916-36004.

Answers

December 06, 2011
Jason
THE SHOCK BOLT HOLE IS 1/2"I.D. The perpendicular distance from the plane of the plate which contains the two frame mount holes to the centerline of the shock mount hole is 3 1/4. The overall height of the shock mount is 5 1/4. And the inside width of the shock mount or the width of the shock bushing needed is 1 3/8.

hi what is the size of the two bolt holes that bolt the bracket to the frame and how far apart are the two bolt holes that bolt the bracket to the frame please answer both questions thanks

1 answers
February 23, 2012

hi what is the size of the two bolt holes that bolt the bracket to the frame and how far apart are the two bolt holes that bolt the bracket to the frame please answer both questions thanks

Answers

February 24, 2012
Jason
Overall Length : 2.05 " Overall Width : 1.73 " Inside Width : 1.38 " Overall Height : 6.23 " Overall Thickness : .16 " Center to Center : 1.57 " mount holes Hole Diameter : .50 " Mount holes are 3/8" Material Type : Steel Finish : Natural Sold in Quantity : Pair Notes : The perpendicular distance from the plane of the plate which contains the two frame mount holes to the center of the shock mount hole is 3 1/4.
Page 1 of 1
