Stainless Steel Tie Rod Ends, 11/16-18 LH

SAME DAY SHIPPING! Order within the next 8 hours 57 minutes and receive same day shipping

Specs
Material Type:
Stainless Steel
Overall Length:
4.00
Sold in Quantity:
Each
Finish:
Polished
Thread Length:
2.00
Stud Length:
.75
Stud Diameter:
.50
Thread Pitch:
11/16"-18
Center Hole to End of Shank:
3.00
Threads:
RH Female
Garage Sale:
No
Notes
Fit closer to tapered hole compared to our 91002919 which is.150" shorter. 1-1/8" from center of threaded shaft to the bottom of the taper.

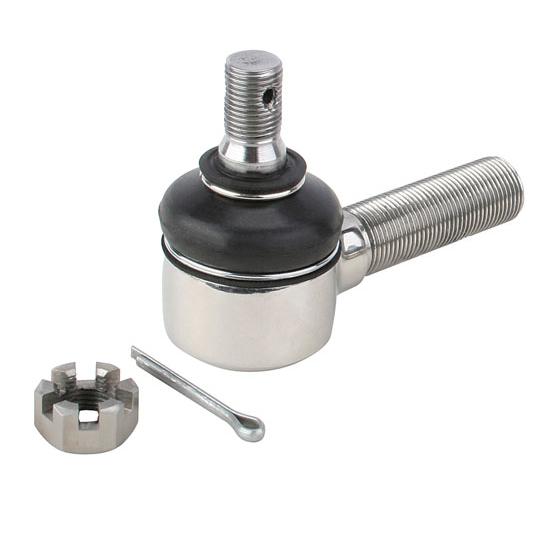

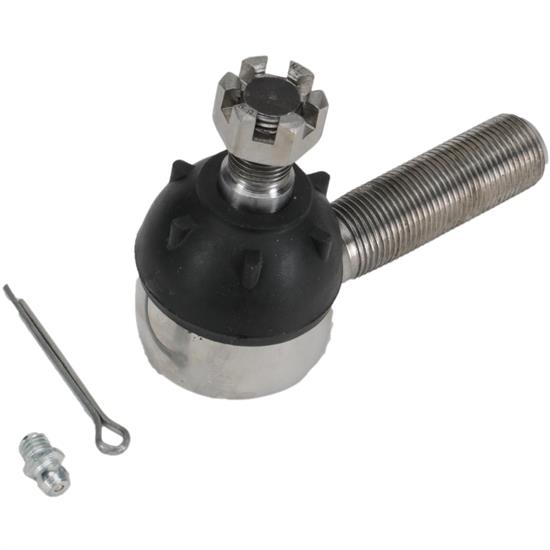

Stainless Steel Tie Rod Ends, 11/16-18 LH
Stainless Steel Tie Rod Ends, 11/16-18 LH

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These tie rod ends are just like our standard Ford tie rod ends except they are made of beautifully polished stainless steel. They have 11/16"-18 thread and include hardware. Make sure to use anti-seize on the threads.

You may also be interested in:

Plain Finish Cross Steering Tie Rod End, 11/16-18 LH Threads
SKU-91002999
                        Cross steering means the drag link reaches across the car and attaches to the passenger-side steering arm. If that steering arm has only one hole, you'll need to build the tie rod with this tie rod end on the RH side. Then the drag link attaches to the eyelet (which is tapered 1/2 way from both sides.)
  • Not for use with flat steering arms
  • Use only with Ford type steering arms with a tapered hole
  • Not normally used with Chevy spindles

Note: When using the cross steering end, the tube length will need to be 6" shorter than the eye-to-eye length. Example: A 46" kit will need 40" tube length.

Pro-Blend 1720 Anti-Seize Compound
SKU-91016009


Apply Pro-Blend anti-seize directly to any metal surface that may gall or seize due to heat, pressure, torque loading or shock. Excellent in environments of gas, alcohol, water, solvents, dirt, sand, and grit.

  • Defies contact of dissimilar or like metals
  • Not affected by heat, moisture, salt water, or corrosion

Learn why using anti-seize is so important in our tech article, Installing New Hardware.

Outer Tie Rod End, 11/16-18 LH
SKU-91002919
                        Replace those sloppy worn out tie rods with our new replacements. Original equipment on 1948-1964 Ford half-ton pickups, but these can be used on many other applications other than Ford trucks. Not for use with flat steering arms. Use only with Ford type steering arms with a tapered hole. Not normally used with Chevy spindles.

Chrome Tie Rod End, 11/16-18 LH
SKU-91002917
                        These tie rod ends are just like our standard Ford 7° taper tie rod ends except they are made of beautifully chrome plated steel. They have 11/16"-18 threads and include hardware. Make sure to use anti-seize on the threads.

Stainless Jam Nut, 11/16 Inch-18 LH NF Fine Thread
SKU-91001159


If you've got spherical rod ends on your vehicle, you'll probably need jam nuts. You might also need them for tie-rod ends or other types of fittings and connectors. Our jam nuts are made from premium stainless steel and they're available with left hand threads.

These stainless steel fine thread jam nuts are for use with rod ends, heim joints, and clevis.

  • 11/16 Inch-18 LH NF Fine Thread
  • Available in left hand thread.
Stainless Steel Tie Rod End, 11/16-18 RH
SKU-91002929
                        These tie rod ends are just like our standard Ford tie rod ends except they are made of beautifully polished stainless steel. They have 11/16"-18 thread and include hardware. Make sure to use anti-seize on the threads.
