Stainless Steel -3 AN Brake Line Kit, 4-Hose, 40 Ft. Tubing

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Overall Length:
40.00
Overall Diameter:
.19
Inside Diameter:
.12
Notes
Includes two 20.00' roll of stainless brake line, three 18.00" -4 AN stainless braided lines, and stainless fittings, tees, nuts, and bulkheads.
Stainless Steel -3 AN Brake Line Kit, 4-Hose, 40 Ft. Tubing
VIDEO

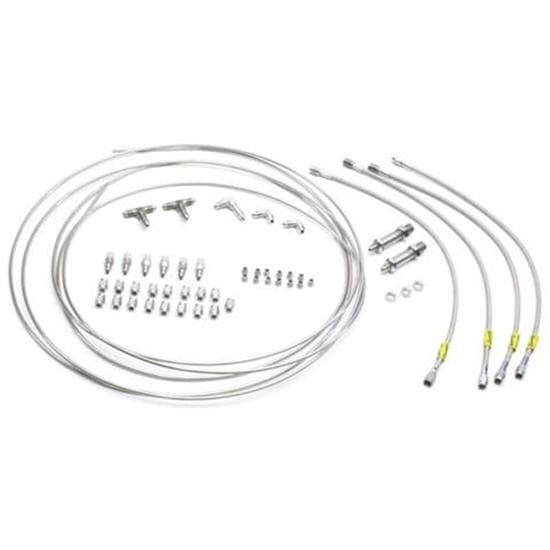

Stainless Steel -3 AN Brake Line Kit, 4-Hose, 40 Ft. Tubing

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (0)

Q & A (3)

What's in the Box

Info

Speedway Motors is again the industry leader by offering a 100% stainless steel brake line kit. We know you dont want to cut corners on something as important as the brake system. Brake fluid and moisture in the brake lines and fittings are highly corrosive and attack softer metals.

Why settle for the anodized aluminum fittings offered by other companies? We start with 3/16" stainless steel tubing of 304 grade (rated at 6000 psi) that is double annealed to allow easy flaring. Then, we offer a variety of fittings made of 303 grade semi-polished stainless for the most corrosion resistant line kit in the industry! Not all fittings are polished, but with a little elbow grease you can have beautiful brake lines.

Designed for for independent rear axles (IRS). Kit includes two 20 foot coils of 3/16" stainless steel line, seventeen -3 AN tube nuts, seventeen -3 AN tube sleeves, two -3 AN bulkhead tees, six -3 AN to 1/8"NPT adapters, two 90° -3 AN to 1/8" NPT adapters, one -3 AN straight bulkhead fitting, two -3 AN to 1/8" NPT female thru-frame fittings with stainless jam nuts, four -3 AN 18" braided stainless hoses, and three 3/8" bulkhead nuts.

617-8545 Instructions (PDF)

NOTE: These kits are designed to use 37 degree flares only. Do not attempt to use with standard inverted flare brake connectors, which are 45 degree.

Learn more about flaring lines and how to select proper automotive fittings by reading our tech article. The Principles of Automotive Fittings

Item Details

For independent rear axles.

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

Whats included? Do you get your choice of thru frame fittings, how many tube nuts? The notes section says 3) -4an braided lines, shouldn't it be 4) -3an lines. Thanks

Jammer
Lindenhurst, IL, USA
February 17, 2015

Whats included? Do you get your choice of thru frame fittings, how many tube nuts? The notes section says 3) -4an braided lines, shouldn't it be 4) -3an lines. Thanks

Answers

February 17, 2015
EricM
You are correct, this brake line kit includes four stainless braided -3 AN lines. It also includes two thru frame fittings 91031360.
1 answers

On a drag car round tube chassis,what else might be needed with this kit, Fittings or adapters?? I saw the instructions listed some other stuff but the part numbers would not pull up on your site. Thanks

rob
jackson ms
February 01, 2016

On a drag car round tube chassis,what else might be needed with this kit, Fittings or adapters?? I saw the instructions listed some other stuff but the part numbers would not pull up on your site. Thanks

Answers

February 02, 2016
Zach
Expert
You may need banjo or AN fittings for your brake calipers depending on what you have. This is generally a very complete kit unless you are making a specific change. If you would like to talk to a race tech about your particular brake system please give us a call at 800-979-0122
1 answers

I am building a 1978 Jeep CJ 5. I installed International Scout axles, using the scout front brake calipers, and I did a disc brake conversion on the back. Was told that they were eldorado calipers. will this kit work for what I am doing or what do you reccomend?

Erik
United States, Savannah, Mo.
August 24, 2016

I am building a 1978 Jeep CJ 5. I installed International Scout axles, using the scout front brake calipers, and I did a disc brake conversion on the back. Was told that they were eldorado calipers. will this kit work for what I am doing or what do you reccomend?

Answers

August 25, 2016
Eric
Expert
This kit includes four 18" long AN3 stainless braided hoses as well as a pair of thru frame fittings 91031360 which are for 1.5" to 2" frame width. In addition to this kit you will need AN3 adapters for the fluid inlet of your brake calipers. Once you determine the thread of the fluid inlet on your calipers we can get you the correct adapter fittings for them.
Page 1 of 1
