Stainless Spring Pivot

Specs
Material Type:
Stainless Steel
Overall Width:
1.75
Sold in Quantity:
Each
Finish:
Polished
Hole Diameter:
.75
Thread Length:
.80
Thread Pitch:
1/2" UNF

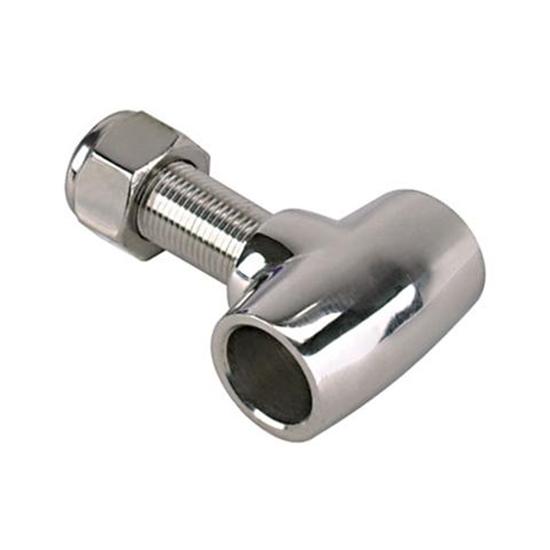

Stainless Spring Pivot

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Intended for T-bucket and other short cross-spring front suspensions. Use with 1-3/4" nylon shackle kit. .750 I.D. tube with 1/2" fine stud. We recommend that you run a die over the threads before assembly. Also be sure to apply anti-seize compund to both threaded surfaces before assembly.

Sold each.

Leaf Spring Measuring Guide (Link)

Customer Reviews

Rated 4.3 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
1
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

akzale
Alaska, usa
Product Rating

Easy to mount

September 04, 2013
Looks great installed. Easily scratched so be careful when installing the shackle.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

BadBart
Ohio, USA
Product Rating

Used with the SS dropped axle

April 25, 2013
Nice pieces that work well, but I needed to remove them for new shock mounts which ruined them. They both galled badly. Don't forget to use an anti-seize with assembly, which I did.
Pros:
  • work as intended
  • Nice Finish
Cons:
  • need a packed reminder to use an anti-seize lube
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

butch
Verified Purchaser
marysville wa
Product Rating

could not be bettter

October 18, 2011
i got the nylon shackles with the spring pivot and it worked perfectly.
Pros:
  • Easy To Use
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91633003

Product Q&A

1 questions : 1 answers

1 answers

what is the length of the threaded shaft?

don
pawcatuck ct.
April 10, 2011

what is the length of the threaded shaft?

Answers

April 12, 2011
Seth
This one has .800" of threads.
Page 1 of 1
