Stainless Front Tube Axle w/ Perch Bolt Holes, Ford Spindle

SAME DAY SHIPPING! Order within the next 17 hours 12 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Stainless Steel
Sold in Quantity:
Each
Diameter:
2.00
Drop:
3
Material Thickness:
.250
Perch Centers:
37.00
King Pin Centers:
48.00
Spindle Type:
Ford

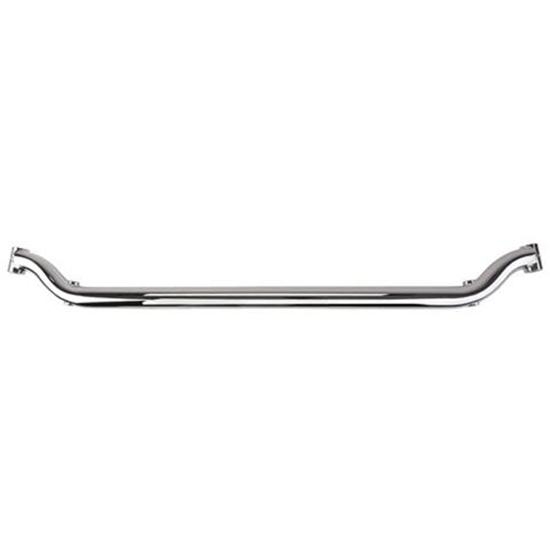

Stainless Front Tube Axle w/ Perch Bolt Holes, Ford Spindle

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Speedways 3" drop tube axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall stainless steel tubing. Use with 1937-48 Ford style spindles.

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Item Details

48" king pin centers, 37" perch centers

Notes

  1. Due to the design of this axle, batwings 916-35000 will NOT work without significant grinding on the edge of the bracket.

Specs

  • King Pin Center-to-Center:  48"
  • Spring Perch Center-to-Center:  37"
  • Spring Perch Hole O.D.:  1"
  • Spring Perch Hole I.D.:  11/16"
  • Spring Perch Hole Length:  2-1/4"

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Toyotaman
Verified Purchaser
Ferndale, WA, USA

Awesome Axle

March 25, 2015
Awesome product, would recommend to anyone looking for a nice tubular axle.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

What vehicle total weight is this axle suitable for ?

Hawke's Bay, New Zealand.
October 13, 2011

What vehicle total weight is this axle suitable for ?

Answers

October 14, 2011
John
Part # 91035123 These axles do not carry a specific weight rating but our standard axles are rated for the Model A thru 34 and in the 2500-2800 range. The stainless version offers more strength than the plain steel and all of the Speedway axles offered have been used on vehicles in the 3500+ weight range. If mated to a single cross leaf spring such as this axle some customers have actually added two spring leafs to carry the weight of their car with no axle problems.
Page 1 of 1
