Stainless Front Tube Axle w/ Perch Bolt Holes, Chevy Spindle

SAME DAY SHIPPING! Order within the next 4 hours 56 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Stainless Steel
Sold in Quantity:
Each
Diameter:
2.00
Drop:
3.00
Material Thickness:
.250
Perch Centers:
37.00
King Pin Centers:
48.00
Spindle Type:
Chevy

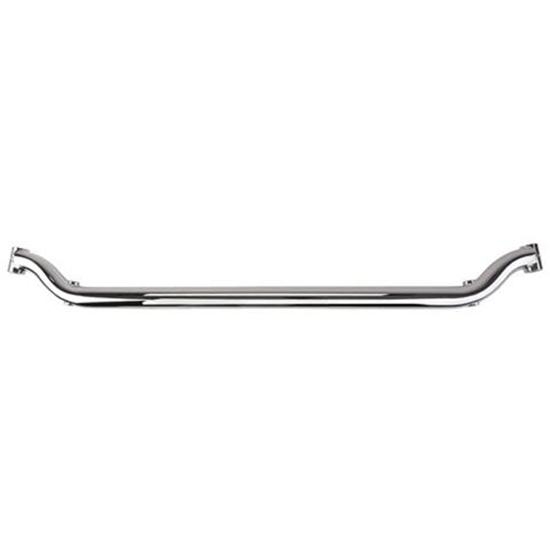

Stainless Front Tube Axle w/ Perch Bolt Holes, Chevy Spindle

Click image to enlarge

Please NOTE the following about this product:

  • Item 91035122 is made to order. We will ship it from our warehouse when it is produced.

Details

Reviews

Q & A

What's in the Box

Speedway 3" drop tube axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall steel tubing. Use with 1949-1954 Chevy-style spindles.

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Item Details

48" king pin centers, 37" perch centers

Notes

  1. Due to the design of this axle, batwings 916-35000 will NOT work without significant grinding on the edge of the bracket.

Specs

  • King Pin Center-to-Center:  48"
  • Spring Perch Center-to-Center:  37"
  • Spring Perch Hole O.D.:  1"
  • Spring Perch Hole I.D.:  11/16"
  • Spring Perch Hole Length:  2-1/4"
