Stainless Braided 19 Inch Front Brake Hoses, 10mm-1.5

Specs
Overall Length:
19.00
Sold in Quantity:
Pair
Thread Pitch:
3/8"-24
Outer Braid:
Stainless
Hose OD:
.31
Garage Sale:
No
Notes
These come with banjo bolts and crush washers.
Stainless Braided 19 Inch Front Brake Hoses, 10mm-1.5
Product Video
Stainless Braided 19 Inch Front Brake Hoses, 10mm-1.5

Click image to enlarge

Watch the video below to learn more about the differences in brake lines, flare types and fittings you may want to consider before plumbing away on your current chassis project.

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

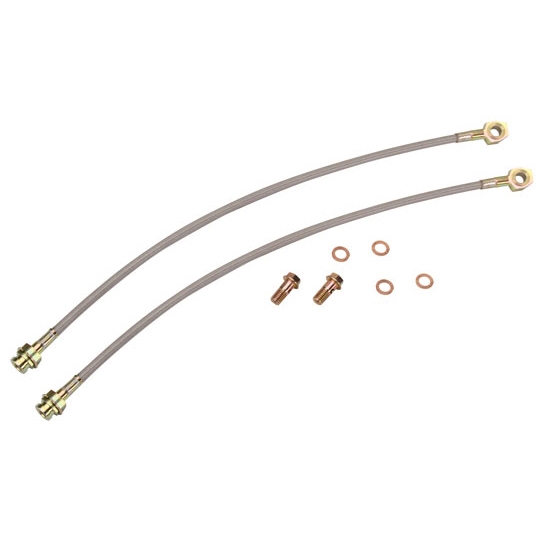

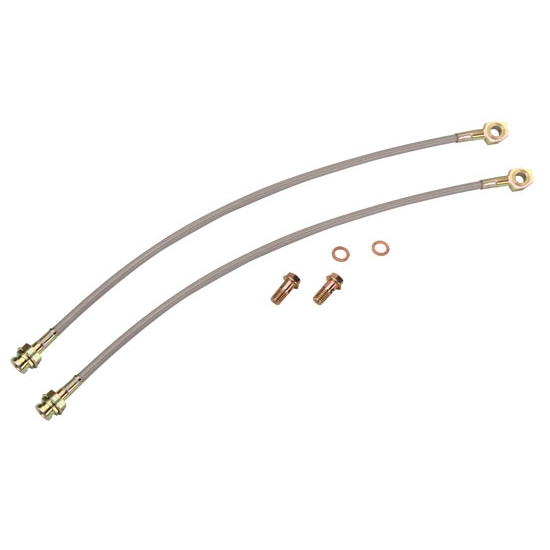

These steel braided front brake lines are 19" overall length. They are for common 1978-1988 GM metric style calipers and include 10mm x 1.5 banjo fittings for one end and have 3/8"-24 inverted flare female on the other. Stainless steel braid significantly reduces hose expansion under pressure, which results in a firmer pedal feel versus rubber hoses.

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 3 answers

Will this part work for a 72 chevy C10? I have a 72 chevy c10 that has air ride and my factory rubber hose will be to short to cycle up and down and this 19" brake line will work perfect if it will work for my application

2 answers
Arnold
NC
October 21, 2014

Will this part work for a 72 chevy C10? I have a 72 chevy c10 that has air ride and my factory rubber hose will be to short to cycle up and down and this 19" brake line will work perfect if it will work for my application

Answers

October 23, 2014
lightfoot111
Yes it should fit if you have front disc brake s
October 22, 2014
EricM
These are for the Metric calipers that utilize 10mmx1.5 thread for the banjo bolts. This is real close to 3/8" for bolt size. If you have larger 7/16" x 20 bolts you would need braided lines number 91031844-3 times 2, banjo kit number 6172930, and AN adapters number 6174129.

What adapter do I use with these to attach to a thru frame fitting?

1 answers
buds
August 21, 2014

What adapter do I use with these to attach to a thru frame fitting?

Answers

August 21, 2014
EricM
These lines can not be used with a thru frame fitting such as our 91031360. These have a frame fitting crimped on the end of the hose which can be mounted to your frame with a tab such as 91031309 or 91031310. If you can use a 16" hose then braided hose kit 6178561 will work with thru frame fittings such as 91031360.
