Square Top T Windshield Frame, 39 Inches Wide

Specs
Material Type:
Steel
Overall Height:
20.00
Overall Length:
39.63
Sold in Quantity:
Kit
Overall Thickness:
.90
Finish:
Chrome
Garage Sale:
No
Channel Depth:
.24
Channel Width:
.36
Notes

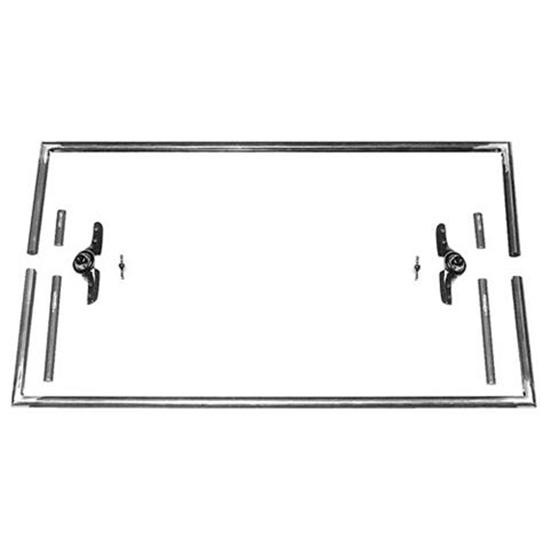

Includes frame, non-functional hinges, wing nuts, and slugs.
Square Top T Windshield Frame, 39 Inches Wide
Square Top T Windshield Frame, 39 Inches Wide
Square Top T Windshield Frame, 39 Inches Wide

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Mr. Roadsters square top 'T' windshield frames fit most fiberglass T-buckets. Triple chrome plated steel. Kit includes frame (approximately 20" tall), non-functional hinges and hardware. Designed for short style posts.

No glass or windshield rubber is included with our windshield frames.

Note: Speedway 1923-25 Model T Bodies use a 39-5/8" wide windshield frame when using short posts.

Builder's Tip: If using 1/4" glass or lexan, use urethane or setting tape (available from a glass shop) and do not use brass setting channel.

Item Details

39" Wide

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

how do i measure my fiberglass body to find out what size windshield frame i need with the short mounts

Tim
st cloud mn
September 27, 2011

how do i measure my fiberglass body to find out what size windshield frame i need with the short mounts

Answers

September 29, 2011
Zach
Speedway part number 55522012. To determine which windshield frame you will need, you need to first install the windshield post and then you can take the measurement for the frame. If you have a Speedway body the frame width will be 39 5/8". If you have another body, you will need to install the posts and measure first. Keep in mid that if it is not a Speedway body you might need to modify the post locations to fit the frame.
