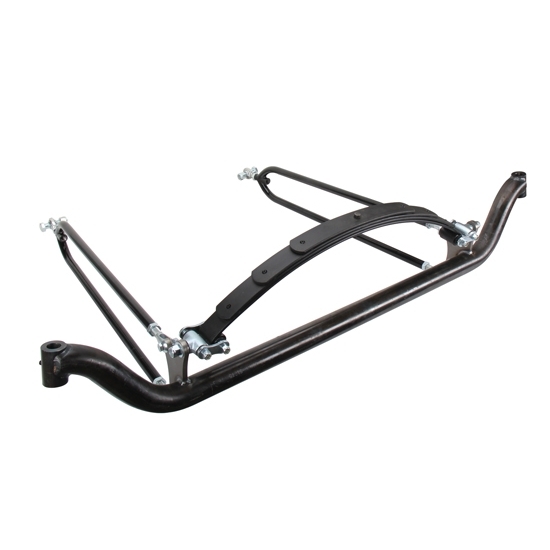

Spring-Over 6 Inch Drop Front End for Chevy Spindles, Plain

Spring-Over 6 Inch Drop Front End for Chevy Spindles, Plain
VIDEO
Spring-Over 6 Inch Drop Front End for Chevy Spindles, Plain

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (1)

Q & A (3)

What's in the Box

Info

For T's and early 1930's street rods using 1949-54 Chevy passenger car spindles. Maximum car weight 2500 lbs.

Kit includes:

  • Two 1-3/4" spring shackles with nylon bushings
  • Two spring pivots
  • 26" 4-leaf Super Glide™ spring, 1-3/4" wide (chrome spring used on stainless steel kit)
  • Two axle brackets
  • Tube axle, 48" eye-to-eye, 6" drop
  • Two 27" radius rods
  • Four clevises with jam nuts and bolts
  • Two 5/8" heims with jam nuts
  • Spring U-bolts sold separately

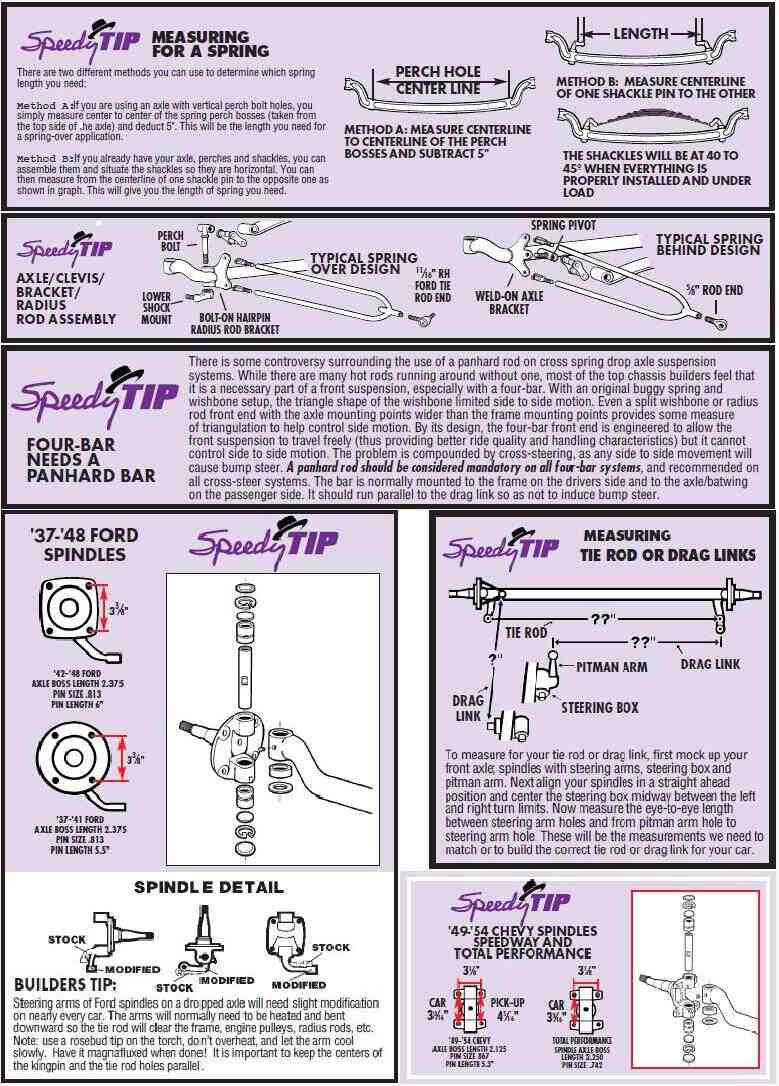

Front Axle/Suspension Tech Tips (GIF)

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

kingpins
franklinton nc

I have this kit on my model A pickup

March 19, 2016
this kit is awesome! do your self a favor and buy the steering/brake kit for this axle also. i have these two kits under my model A pickup and ive been driving it as a daily for 3 years now. this is a very high quality set up!!! but please put a pan hard bar on it. makes a world or difference and peace of mind.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

I have a 33 Ford Pickup I'm hoping to use this setup on mainly because I have a set of 49-54 Chevy spindles already setup with disc brakes. Any issues

BillyJoel89
Hampton, IL, USA
November 26, 2013

I have a 33 Ford Pickup I'm hoping to use this setup on mainly because I have a set of 49-54 Chevy spindles already setup with disc brakes. Any issues

Answers

November 27, 2013
EricM
If you have 49-54 passenger car spindles with disc brakes then our spring over axle for Chevy spindles should work. You inquired on the 6” drop and depending on engine height this puts the oil pan fairly low. The common drop on the 33/34 is 4”. You can lower it another inch with a reversed eye spring if desired.
1 answers

if i order this kit can i choose if the spring is reverse eye or standard?

anthony
United States
April 17, 2016

if i order this kit can i choose if the spring is reverse eye or standard?

Answers

April 18, 2016
Eric
Expert
This kit comes with a standard eye spring but we can substitute a reversed eye if you want. With a 6" drop axle you will be getting very low with a reverse eye spring however.
1 answers

What pan hard bar kit is recommended for this axle configuration?

Woodyrod
Mineville,NY
July 02, 2016

What pan hard bar kit is recommended for this axle configuration?

Answers

July 05, 2016
John
Expert
A panhard bar is not commonly used on front end kits with hairpins or radius rods as the heims or tie rod ends will absorb any side to side movement which is minimal. Kit number 91049801 has the bracket for the four bar only and has different dimensions. If desired you can modify this bracket for hairpin use or fabricate your own, or weld a bracket to the existing bracket on the axle to accept the heim end on the panhard bar.
Page 1 of 1
