Spike Chassis MS1716 Cage Mount Radiator

Specs
Material Type:
Aluminum
Overall Height:
12.25
Overall Width:
17.00
Transmission Cooler:
No
Tube Style:
Crossflow
Sold in Quantity:
Each
Overall Thickness:
1.50
Row Quantity:
Single
Finish:
Natural
Inlet Location:
Upper Right
Outlet Location:
Lower Right
Core Height:
12.00
Core Width:
14.00
Core Thickness:
1.25
Filler Neck Height:
1.00
Shroud:
No
Radiator Style:
Double Pass
Notes
Center to center of mounting pins is 8.38" Inlet and outlet fittings are both 3/4" NPT

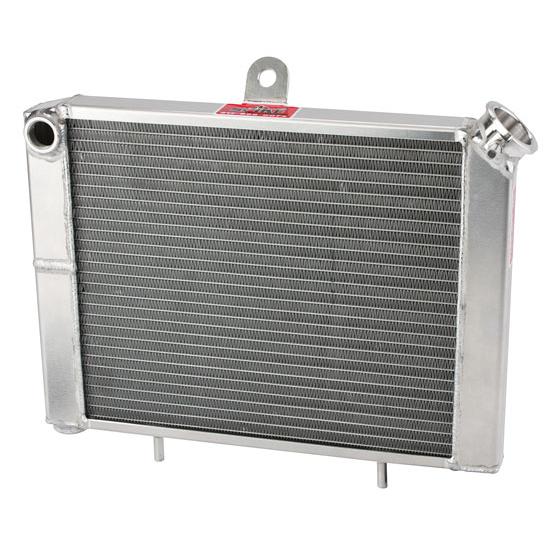

Spike Chassis MS1716 Cage Mount Radiator
Spike Chassis MS1716 Cage Mount Radiator

Click image to enlarge

Speeday Motors Logo
X
Spike Chassis MS1716 Cage Mount Radiator

Details

Reviews

Q & A

What's in the Box

Cross flow, double pass design allows maximum cooling efficiency. Inlet and outlet are 3/4" NPT.

  • 17" x 13" x 1.5" thick

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
