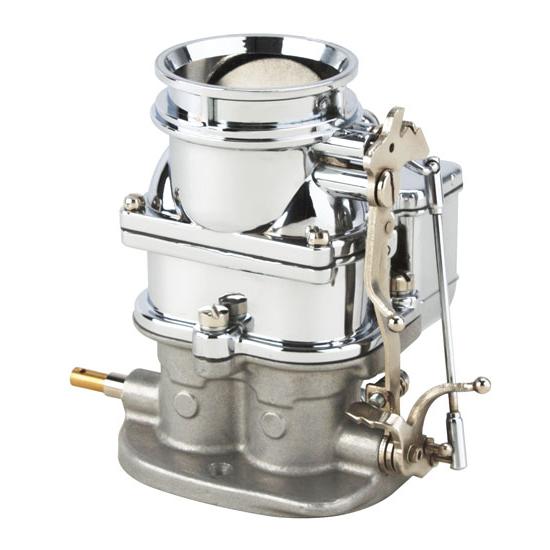

Primary 9 Super 7 3-Bolt 2-Barrel Carburetor, Chrome Finish

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Finish:
Chrome
Choke Type:
Manual
Fuel Type:
Gasoline
Carburetor Barrels:
2
CFM:
184
Gasket(s) Included:
Yes
Primary 9 Super 7 3-Bolt 2-Barrel Carburetor, Chrome Finish
Primary 9 Super 7 3-Bolt 2-Barrel Carburetor, Chrome Finish
Primary 9 Super 7 3-Bolt 2-Barrel Carburetor, Chrome Finish
VIDEO
Primary 9 Super 7 3-Bolt 2-Barrel Carburetor, Chrome Finish

Click image to enlarge

Details

Reviews (0)

Q & A (3)

What's in the Box

Info

Speedway Motors now offers a reproduction version of one of the most popular 2 barrel carburetors ever used, the original Stromberg 97! Original equipment on 30s and 40s cars and trucks, the Stromberg 97 has long been favored by Flathead builders, hot rodders and racers who realized the performance qualities of this timeless fuel supplier.

There have been numerous attempts to reproduce this two barrel carb, with little success. "Speedy" Bill Smith of Speedway Motors in Lincoln, Nebraska, took on the challenge to make a great product even better. The 9 Super 7 ® carb brings this reproduction of the original Stromberg 97 into the 21st Century!

Speedway Motors has incorporated all of the improvements shown above while maintaining the carburetors original look. Features such as the choke assembly, accelerator pumpmain jets and cosmetics have all been faithfully retained. Additionally, each carburetor is individually flow tested and inspected for leaks. Perfection is the result!

Aesthetically, the 9 Super 7 ® is nearly identical to the stock unit, minus the large 97 logo that appeared on the side and the patent numbers found on the float bowl area. Upgraded internal parts include; the float, needle, and seat. Jetting and power valve settings remain as they were for the original 97 carbs as well as the cfm and vacuum specs.

The other similarity that the 9Super7 ® shares with the original 97 is the setup and tuning necessary to yield a well-running machine. While perhaps not as simple as bolting on a single four-barrel, the 9 Super 7 makes setting up a multiple carburetor induction system easier than when Strombergs were available new. All thats required is an intake, a linkage system, a Uni-Syn syncing tool, and a little patience. Be sure to include the Secondary 9 Super 7 when installing multi-carb setups. Our 3 Carb kits come with one primary carburetor and two secondary carburetors while the 2 Carb kits are both primary carbs. See our Multiple Carburetor Tech Tip for more information on using the 9 Super 7 in a 2x2 or 3x2 carb set-up.

On the primary 9 super 7 carb the throttle shaft extends from carb body .983" and has the hole on the end to pin the linkage. There is a brass sleeve that the throttle shaft rotates in that extends from the carb body .400 and this leaves the useable throttle shaft length of .583. There is sufficient room for progressive linkage and the manual throttle linkage that rotates over the sleeve.

  • All-new tooling for crisp, flawless castings
  • New aluminum base assembly allows for cooler fuel temps and better fuel efficiency as compared to the original cast iron design
  • Stainless steel screws and hardware
  • Choke assembly, accelerator pump, and jets have all been faithfully retained and accept standard Stromberg parts
  • Features original Stromberg 0.97" venturi diameter
  • Modern Nitrophyl float and Neoprene gaskets
  • Original troublesome needle and seat replaced by a Grose-style fuel inlet valve to better cope with higher fuel pressures and improved high speed running
  • Will not stick or dribble like the old Viton-tipped needle and seat setups
  • Grose-style jet valve wont corrode in modern fuel, something the original needle and seat units cant do
  • Comes with a No. 65 power valve and 0.045" main jets, identical to the stock 97
  • Extended brass throttle shaft to simplify multi-carb linkage

915-11657 9 Super 7® Carb Instructions (PDF)

Note: Not recommended for use with Ethanol fuels.

Recipient of the NSRA 2009 Best New Product Award
Recipient of the Goodguys Best New Product Award - Engine and Transmission, Goodguys PPG Nationals 2009

Notes

  1. Features .045" main metering jets and a number 65 power valve, which is the same as a stock 97 carb.
  2. Replacement jet access plug gasket use # 91011542, replacement needle & seat gasket use # 91011543.
  3. Includes base gasket.
  4. The 9 Super 7® will operate suitably with fuel pressures ranging from 1-1/2 psi to 4 psi, with a desired setting of 2-1/2 psi to 3 psi. Fuel pressure from 4 psi to 7 psi will cause the carburetor to run excessively rich and may cause flooding. Flooding or leaks caused by excessive fuel pressure do not indicate a faulty carburetor.
  5. There are no provisions for a vacuum advance line. Ford & Mercury engines 1949-1953 using stock distributors will need an alternative place to connect the vacuum line.
  6. Our independent tests produced these flow numbers:
    • 3" of Vacuum - 60 CFM
    • 10" of Vacuum - 110 CFM
    • 15" of Vacuum - 136 1/2 CFM
    • 28" of Vacuum - 184 CFM
Learn more about setting up 3 x 2 carbs using the 9Super7® in Street Rodder Magazine's tech article, Speedway Motors Stromberg 97 - Tri-Power In Under An Hour.

See what other industry experts are saying about the 9 Super 7® here

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

Vacuum ports for auto tranny control? My auto tranny (TH350) is now connected to a manifold vacuum port on my EdelBrock 1406 4bbl carb for shift control. If I install the 3x2 4bbl to 3x2 adaptor kits with these carbs, where can I pick up the vacuum for auto tranny shifting control. It needs manifold vacuum to control shifting.

John
Sagle, ID 83860, USA
February 21, 2015

Vacuum ports for auto tranny control? My auto tranny (TH350) is now connected to a manifold vacuum port on my EdelBrock 1406 4bbl carb for shift control. If I install the 3x2 4bbl to 3x2 adaptor kits with these carbs, where can I pick up the vacuum for auto tranny shifting control. It needs manifold vacuum to control shifting.

Answers

February 21, 2015
EricM
This carb does not have any vacuum ports on it. You can either install an adapter such as 91611020 into your intake manifold if it has a vacuum port or you can drill and tap the carb adapter and use fitting 91611045 to connect your vacuum hose.
1 answers

I have a 1929 ford model a with a webber 3 bolt carb. The aftermarket one purchased from snyders or mac catalogue. Will the Super seven stromberg bolt onto my intake in place of the webber ???

Ironman
Michigan
May 09, 2012

I have a 1929 ford model a with a webber 3 bolt carb. The aftermarket one purchased from snyders or mac catalogue. Will the Super seven stromberg bolt onto my intake in place of the webber ???

Answers

May 14, 2012
John
For verification the three bolt pattern is 3 1/8” side to side on the two bolt side and from the center of the two bolts forward to the center of the front bolt is 1 7/8”.
1 answers

will this carb work on a V8-60?

veejaz
mantua,oh
October 27, 2011

will this carb work on a V8-60?

Answers

October 28, 2011
John
Part # 91511657 This carburetor will fit on many applications requiring a two barrel carburetor with 3 bolt mounting pattern and will work on the V8-60 on such intakes as our Eddie Meyer part number 91611006. Jetting will have to be made to match engine needs and elevation.
