Speedway Vega Style Steering Box Combo, All New Assembly

SAME DAY SHIPPING!

Specs
Overall Length:
5.75
Sold in Quantity:
Set
Spline OD:
.63
Spline Count:
36

Share by Email

From
To

Click image to enlarge

X

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

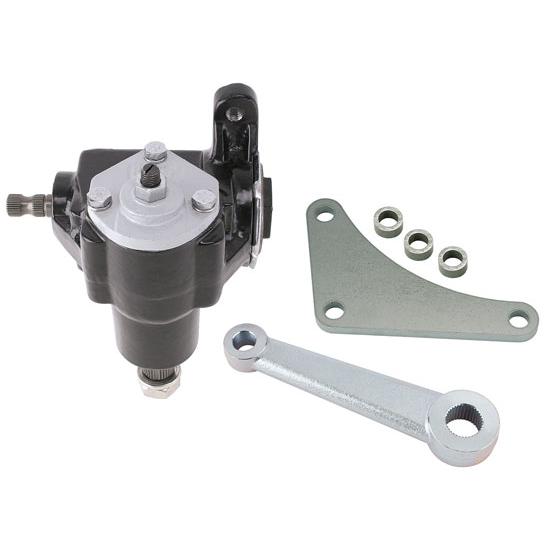

Speedway Motors makes it easy to bolt together a cross steering system with our Vega Steering Box Combo kit. Kit includes a Speedway Vega box, steel pitman arm, and a Ford Model T - 1934 frame mount. This steering box accepts a 5/8" 36-spline U-joint or coupler.

Kit includes:

  • Speedway Vega Steering Box
    • 20:1 steering ratio
    • 5 turns lock-to-lock
  • Steel Vega Pitman Steering Arm
    • Plain finish
    • Non-offset design
    • Double-tapered "Ford" tie rod end hole (lets you attach the drag link on the top or on the bottom)
  • Vega Steering Box Mount
    • Fits Model T thru 1934 Ford frames
    • Weld-on design

Application

  • Steering Box
    • Centerline through the output shaft to the front of the box is about 3"
    • Overall length of the box not including the input shaft is 5-3/4"
    • Input shaft extend rearward 1-3/16"
    • From adjust screw to end of output shaft is 8"
    • From outside of box to area on mounting surface is 4-1/2"
    • Box has a swell in the casting that extends past the mounting legs an additional 1/4"
    • Mounting pattern is 2-3/4" and 4-3/8" center to center of the three mounting holes
  • Steering Arm
    • Length center eye to center eye is 6-1/4"
    • Overall length is 6-7/8"
    • 5.5" inside length eye to eye
    • 0.60" diameter tapered end
    • Tie rod end is tapered on both sides

Notes

Features:

  • New castings and components
  • Faithful reproduction of size, shape, and mounting hole locations
  • Vega box is the popular standard of conventional cross steering boxes for hot rods
  • Bolts up to all normal Vega-type brackets and accepts Vega-spline U-joints, pitman arms, and accessories
  • Durable cast-iron construction with machined steel components
  • Provides years of trouble-free service

Notes:

  1. Recommended for vehicles under 2800 lbs.
  2. The Vega box is the best choice for Model T - 1934 Ford chassis. 1935-48 chassis can use this Vega box or, if you need power steering, use Saginaw box 910-32500.

Specs

  • Steering Box
    • Centerline through the output shaft to the front of the box is about 3"
    • Overall length of the box not including the input shaft is 5-3/4"
    • Input shaft extend rearward 1-3/16"
    • From adjust screw to end of output shaft is 8"
    • From outside of box to area on mounting surface is 4-1/2"
    • Box has a swell in the casting that extends past the mounting legs an additional 1/4"
    • Mounting pattern is 2-3/4" and 4-3/8" center to center of the three mounting holes
  • Steering Arm
    • Length center eye to center eye is 6-1/4"
    • Overall length is 6-7/8"
    • 5.5" inside length eye to eye
    • 0.60" diameter tapered end
    • Tie rod end is tapered on both sides

Item Details

Includes: Speedway vega box, plain pitman arm and box mount
