Speedway Tribute T-Bucket 9 Inch Ford Rear End Option

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Kit
Garage Sale:
No
Notes
9" Ford rear end. Includes shock eyes, swedge tubes, rod ends, leaf spring, u bolts, and bump stops.
Speedway Tribute T-Bucket 9 Inch Ford Rear End Option
Speedway Tribute T-Bucket 9 Inch Ford Rear End Option
Speedway Tribute T-Bucket 9 Inch Ford Rear End Option

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

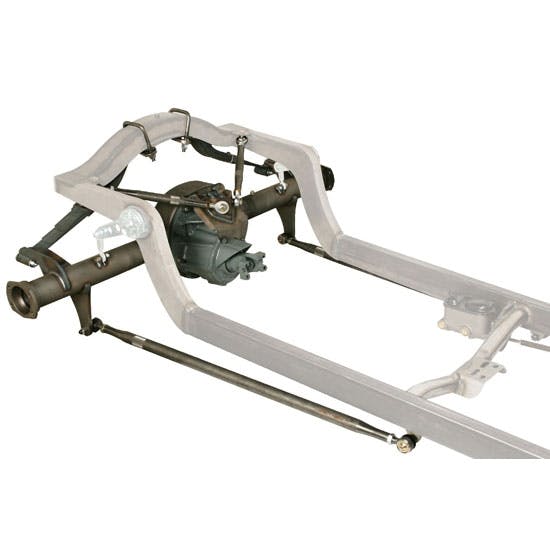

Finish off your Tribute T-bucket kit with this specifically-engineered rear axle and suspension kit. To accommodate the centered-pinion 9" Ford rear axle, the Tribute T frame features an extra-high rear kick-up and Model A rear crossmember. All suspension mounting brackets (both frame and axle) are fully welded, making this rear axle option a complete bolt-on addition to the Tribute T.

Read Street Rodder Magazine's article on the Tribute T in the February 2011 issue!

See the article Hot Rod Magazine wrote on the Tribute T in the June 2013 issue

For Rod & Custom Magazine's coverage on the Tribute T, check out articles here and here from the September 2013 issue!

  • Bolt-on option for Tribute T-bucket kit 7151800
  • Medium-arch rear leaf spring with specially designed 36" radius rods
  • Lower links have tie rod ends for a "period correct" appearance
  • Triangulated upper control arms attach to third member with a special bracket
  • Includes 9" Ford rear axle housing with new-style "big bearing" housing ends & 31-spline axle shafts
  • Rearend has a 2-1/2" axle flange/brake offset
  • Axles drilled for 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns
  • Third member not included (can be purchased separately)

No special handling fees. No extra crating charges.

Check out these awesome Tribute T Photos showing the variations of different styles that can be created with one of our popular Tribute T kit cars.

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

E Brake Option Is there an emergency brake option for this? If not which Wilwood disc brake kit should I use for this with the E Brake?

1 answers
hjleahyjr
January 01, 2015

E Brake Option Is there an emergency brake option for this? If not which Wilwood disc brake kit should I use for this with the E Brake?

Answers

January 02, 2015
EricM
We offer our Speedway bolt on disc brake kit with emergency brake calipers part number 91031921 or Wilwood disc brake kit 8351407140 which has a drum style emergency brake. If the cost difference isn't a big deal to you then we suggest the Wilwood kit since the emergency brake calipers are a not the easiest thing to work with. Bleeding them and keeping the emergency brake working properly can be a challenge at times. The Wilwood kit uses an emergency brake system typical of most modern day vehicles with rear disc brakes.

Tribute T rear end I noticed the updated rear suspension features locating links with heim joints. In the interest of being more period correct could a builder safely remove or replace these with something else? Suggestions? Also, could the medium arch spring be swapped for the high arch or would it be too wide for the crossmember? Thanks!

1 answers
Bill65
Massachusetts, USA
March 25, 2013

Tribute T rear end I noticed the updated rear suspension features locating links with heim joints. In the interest of being more period correct could a builder safely remove or replace these with something else? Suggestions? Also, could the medium arch spring be swapped for the high arch or would it be too wide for the crossmember? Thanks!

Answers

March 26, 2013
Jason
On the Tribute T kit 7151800 the lower links have tie rod ends for a more period correct appearance. The upper control links triangulate the system and do have heim joints. Once mounted with the fuel tank are not very noticeable. They could be swapped with tie rod ends but would require modification to the frame and mounts as the tie rod ends would require a tapered mount. To swap in the high arch spring would require changing the cross member to accommodate the wider spring and the ride height would dramatically change. Most customers desire the low ride height and a 5+” rear height increase would net a dramatic rake and stance.

Is there a special 3rd member to be used with this option in the tribute t kit?

1 answers
Cshannon
Fort Worth
March 21, 2013

Is there a special 3rd member to be used with this option in the tribute t kit?

Answers

March 21, 2013
Jason
7151809 is the Tribute T 9” rear end option and comes with the 31 spline axles. The Speedway third member number 91048345 in choice of ratios is the standard option and comes with a Currie limited slip unit and all set up ready to install. Add gasket number 9192300 and your preferred posi lube and the unit will be complete.
Page 1 of 1

You may also be interested in:

Ford 9 Inch Posi Traction Third Member Assembly
(Part #91048345)


If you’re looking for a complete third member for your Ford 9-inch rear end housing, but want the added performance of a limited slip differential, Speedway Motors now offers you a 9" Ford street 3rd member for your street rod. We start with reclaimed, genuine Ford 9-inch carrier housings and then clean and inspect them prior to installing all-new bearings, seals, a 1310-series yoke, and your choice of ring-and-pinion gears. The 1310-series yoke is the correct size for many Ford applications with cups 1-1/16 inch in outside diameter and a span of 3-7/32 inch across.

These Ford 9 inch third member assemblies feature a Currie 9-Plus limited slip differential available in 28 or 31 spline axle shaft configurations. This clutch-type differential is perfect for light-to-medium weight street vehicles where one wants posi-action and long clutch life, without the adverse handling effects or noise of a full locker. When coasting around turns, the clutches are disengaged to extend clutch life. When accelerating in a straight line on dry pavement, the clutches engage, sending equal power to both wheels for maximum traction. This makes them ideal for street use, with the occasional trip to the drag strip as well.

All third members are assembled by our team of professionals and are delivered to you in a handy plastic carrying case, for an overall value that can’t be beat

Available in your choice of 3.50, 3.70, 3.89, 4.11 or 4.56 gear ratio.

Gear lube recommendations :

  • 91044090 - for street and every day driving under normal conditions
  • 91044140 -  for extreme duty, towing, or very hot climates

Currie Differential Tech Bulletin (PDF)

Instructions (PDF)

Speedway 9 Inch Ford Pumpkin Gasket
(Part #9192300)
                        Our reuseable rear differential gaskets have a steel core and non-stick coating. Fits 9" Ford rear axle third member housings.

Speedway Tribute T-Bucket Kit Car
(Part #7151800)


If you thought all T-buckets were the same, think again! The all-new Speedway Motors Tribute T breaks the T-bucket mold. It offers the traditional look of classic, competition-influenced roadsters combined with modern components and refined engineering. All this in a comfortable package that's easy to assemble using basic hand tools.

The Tribute T frame has an extra-high rear kickup and Model A rear crossmember that will accept our medium-arch rear leaf spring. Rear axle options include our bolt-on Winters quick-change kit 7151801, bolt-on 9" Ford rear axle option 7151809, or a Ford-style banjo rear end of your choice (must be a centered-pinion rear axle). The front suspension uses a 4 inch drop I-beam axle, wishbone-style radius rods and traditional steering with a reversed Corvair steering box. All suspension, steering and brake pedal brackets are pre-welded to the frame and you can choose from flathead Ford V8 or small-block Chevy engine mounts. A special floor allows the Tribute T body to sit a low as possible, while still providing room for our Bomber Seats or cushions of your design.

Read Street Rodder Magazine's article on the Tribute T in the February 2011 issue!

See the article Hot Rod Magazine wrote on the Tribute T in the June 2013 issue!

For Rod & Custom Magazine's coverage on the Tribute T, check out articles here, here, here, here, and here from the September 2013 issue!

  • True old-school appearance
  • Extra-low ride height with maximum ground clearance
  • Easy to assemble using basic hand tools
  • Rugged fiberglass body with floor installed
  • Body finished in a white gelcoat (ready for paint preparations)
  • 1-1/2" x 3" rectangular steel tube frame
  • 3" O.D. round tube front crossmember
  • 106" wheelbase for improved ride and handling
  • Model A rear crossmember
  • Spring-behind front suspension with 4" drop axle and split wishbone radius rods
  • 1937-1948 Ford-style spindles will accept disc brakes or early-style drum brakes
  • Medium-arch transverse rear leaf spring with specially designed radius rods
  • Traditional steering with reversed Corvair steering box
  • Rear axle and suspension sold separately

No special handling fees. No extra crating charges.

Check out these awesome Tribute T Photos showing the variations of different styles that can be created with one of our popular Tribute T kit cars.

Speedway Tribute T-Bucket Quick Change Rear End Kit
(Part #7151801)


Finish off your Tribute T-bucket kit with this specifically-engineered rear axle and suspension kit. To accommodate the centered-pinion Winters Nostalgia V8 Quick Change rear axle, the Tribute T frame features an extra-high rear kick-up and Model A rear crossmember. All suspension mounting brackets (both frame and axle) are fully welded, making this rear axle option a complete bolt-on addition to the Tribute T.

Read Street Rodder Magazine's article on the Tribute T in the February 2011 issue!

See the article Hot Rod Magazine wrote on the Tribute T in the June 2013 issue

For Rod & Custom Magazine's coverage on the Tribute T, check out articles here and here from the September 2013 issue!

  • Bolt-on option for Tribute T-bucket kit 7151800
  • Medium-arch rear leaf spring with specially designed 36" radius rods
  • Lower links have tie rod ends for a "period correct" appearance
  • Triangulated upper control arms attach to axle with a special bracket
  • Includes rear axle housing with new-style "big bearing" housing ends
  • Rearend has a 2-1/2" axle flange/brake offset
  • Rearend features a 3.78:1 ratio and Wedgelock differential
  • Accepts common 6-spline quick change gears (not included)
  • Axle flanges drilled for 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns

No special handling fees. No extra crating charges.

Check out these awesome Tribute T Photos showing the variations of different styles that can be created with one of our popular Tribute T kit cars.
