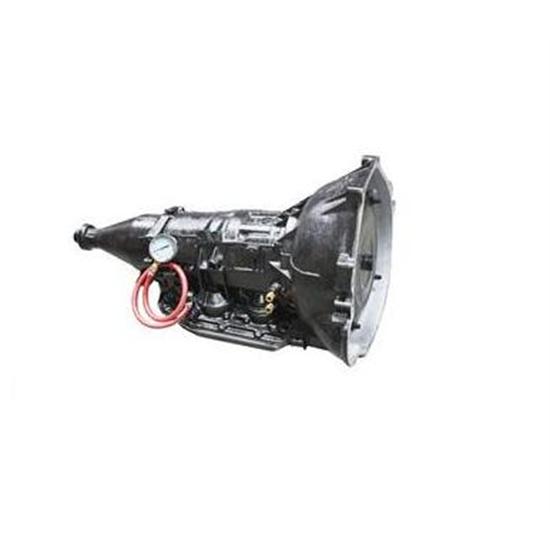

Speedway Street King Ford AOD Transmission

Speedway Street King Ford AOD Transmission

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Hook your 289-302-351W Ford V8 engine to a modern Ford AOD automatic overdrive transmission so you can keep those stump-pulling low rear end gears. This kit includes Speedway's Street King AOD Ford transmission compltely remanufactured with heavy duty clutches, special shift kit, and 12" torque converter. Street King units are perfect as a replacement on any Fox body Mustang, or as an upgrade for your restomod or Ford powered street rod.

Requires a 164-tooth flexplate (NOT included). Transmission has a one year warranty.

NOTE: Must also purchase block plate listed for proper torque converter engagement.

574-53103 Instructions (PDF)

Notes

  1. This transmission must be used with either an original 1965-Up 289/302/351W engine block plate or our 910-29012 block plate. Failure to install this plate may cause damage to transmission due to inadequate clearance between converter and front pump.
  2. Flexplate NOT included. Requires 164-tooth flexplate.

Speedway Street King AOD transmission features:

  • Handles up to 450 HP
  • 2200-2400 rpm stall 12" torque converter
  • Firm, crisp shifts from Kevlar bands & H.D. clutches
  • Extra wide overdrive band & extra 3-4 clutches to cushion downshifts
  • Street/Strip Valve Body - everyday street driving and weekend trips to the drag strip
  • Improved Lubrication Circuits - reduced heat/prolonged life
  • Chrome steel transmission pan

Specs

  • Block Plate Thickness:  .060"

Item Details

Includes TV pressure cable, dipstick, & fill tube

Customer Reviews

This product has no reviews.

Product Q&A

10 questions : 10 answers

1 answers

is there n adapter that will mate this unit to an 8BA flathead?

albuildingarod
Ontario, Canada
November 04, 2014

is there n adapter that will mate this unit to an 8BA flathead?

Answers

November 04, 2014
EricM
Yes we offer this transmission with a complete Flathead adapter kit as part number 91028907.
1 answers

Does the torque converter support a 11.5 inch bolt pattern on a 164 tooth flex plate

Sharkman
Tampa, FL, USA
October 08, 2014

Does the torque converter support a 11.5 inch bolt pattern on a 164 tooth flex plate

Answers

October 08, 2014
EricM
Yes the torque converter will work with your 164 tooth flex plate.
1 answers

will this bolt up directly to a 5.0 liter engine once I install correct flexplate Also I am interested if it will fit in the transmission mount of a 63 Mercury Meteor/Ford Fairlane.

Meteor
Huntsville, AL, USA
July 10, 2014

will this bolt up directly to a 5.0 liter engine once I install correct flexplate Also I am interested if it will fit in the transmission mount of a 63 Mercury Meteor/Ford Fairlane.

Answers

July 14, 2014
EricM
This transmission is a Ford AOD that will bolt up to your 5.0 but you will also need the 164 tooth flex plate and the block plate number 91029012 for proper converter engagement. Length and bolt up to your 63 Meteor is questionable. Sorry we do not have experience with that swap.
1 answers

1977 F100 2WD What additional parts will I need to install this in my 1977 F100? Engine is a 302 with mild build (0.448/0.448, 208@0.050") cam, 4bbl vacuum secondary, headers, HEI w/ multi-spark and 9.3:1 CR. Can the AOD be ordered with a different stall speed converter? Current rear gears are the stock Dana 44 3.07 set, but plan on changing to a 3.54 or 3.73 set. I expect the driveshaft will have to be shortened, and possibly a new front yoke.

AFCommGuy
March 18, 2014

1977 F100 2WD What additional parts will I need to install this in my 1977 F100? Engine is a 302 with mild build (0.448/0.448, 208@0.050") cam, 4bbl vacuum secondary, headers, HEI w/ multi-spark and 9.3:1 CR. Can the AOD be ordered with a different stall speed converter? Current rear gears are the stock Dana 44 3.07 set, but plan on changing to a 3.54 or 3.73 set. I expect the driveshaft will have to be shortened, and possibly a new front yoke.

Answers

March 19, 2014
EricM
To install the Street King AOD transmission you will need a factory block plate of .060" thickness or our Speedway 91029012 block plate. You will also need a 164 tooth flexplate that will accept a 12” converter, correct yoke for the output shaft, drive shaft length change if necessary, fluid, and the lines or alteration of the current cooler lines if available, and a shifter change to the AOD. We apologize but currently do not offer the 164 tooth flexplate.
1 answers

Will this AOD work with the 351 C engine? I would like to install an AOD transmission behind my 351C Ford engine. I know both the 289/302/351W have the same bolt pattern as a 351 C. Are there other differences that would keep this swap from happening? I would be replacing a C-6 Ford transmission.

sidevalve
Harrisonburg, VA, USA
January 28, 2014

Will this AOD work with the 351 C engine? I would like to install an AOD transmission behind my 351C Ford engine. I know both the 289/302/351W have the same bolt pattern as a 351 C. Are there other differences that would keep this swap from happening? I would be replacing a C-6 Ford transmission.

Answers

January 28, 2014
EricM
You can use the AOD on your 351c as it shares the same block mounting, however with this transmission # 57453103 you must either use a '65 and up original block plate or our block plate number 91029012 or internal damage may occur. It also requires a 164 tooth flexplate for the 12” converter.
1 answers

I currently am running a c4. Will this bolt in with out driveshaft modification or?

Mike
mike@rhelectronics.com
April 04, 2011

I currently am running a c4. Will this bolt in with out driveshaft modification or?

Answers

April 06, 2011
Bill
The AOD conversion from a C-4 Transmission is a great upgrade for you performance minded Ford vehicle. It would be up to the installer to determine if your drive shaft length will work as the C-4 and AOD transmission both used multiple tail housing lengths depending on vehicle applications they originated from. You may have to use a transmission yoke from an AOD or modify the C-4 yoke to fit the AOD. The swap will require a 164-tooth flex plate (NOT included). This transmission must be used with either an original 1965-Up 289/302/351W engine block plate or our 910-29012 block plate. Failure to install this plate may cause damage to transmission due to inadequate clearance between converter and front pump.
1 answers

What if any, modifications are needed to install this behind a ford small block with a non-factory fuel injection?

Tony
Corvallis,Oregon
August 23, 2012

What if any, modifications are needed to install this behind a ford small block with a non-factory fuel injection?

Answers

August 24, 2012
John
You will need an early block plate or our aftermarket block plate to space the transmission back for correct converter spacing, a 164 tooth flex plate to accept the 12” converter, hook up with the T/V cable as referenced in the included instructions or the instructions on our website to the throttle linkage, and at the rear the appropriate slip yoke to match the AOD splines and dimensions.
1 answers

Will the block kit and yoke work with the 255 V8 in a 1981 Fairmont?

Tiffiany's Dad
Dayton OH
January 02, 2011

Will the block kit and yoke work with the 255 V8 in a 1981 Fairmont?

Answers

January 05, 2011
Craig
From what I have found the 255 is a windsor based block and should work with our block kit and yoke and since the some of the fairmounts came from the factory with the 302 in it should work in the Fairmount. The case on this transmission is for a 164 tooth flex plate.
1 answers

1967 ford fairlane with 289, what will be needed for column shift

kevin
ventura iowa
January 01, 2011

1967 ford fairlane with 289, what will be needed for column shift

Answers

January 03, 2011
Ken
While the combination you suggest sounds appealing, we have almost no parts for that configuration. Our transmission will bolt to your engine of course, but you will need to adapt or source the shift linkage, driveshaft yoke, cooler lines, mount, etc. from places of your own choosing. The transmission will have a shaft extending out the drivers’ side, but that’s about it. I suggest that you consult a magazine that caters to the classic Mustangs (such as Mustang Monthly) as those enthusiasts have a vehicle that is mechanically similar to yours and will be more likely to have developed the parts for your type of update.
1 answers

1970 Cougar with a Stroked 351W. Do you know if the cross member mounting is in the same location as my original FMX?

Russ
Spokane, Wa.
January 04, 2012

1970 Cougar with a Stroked 351W. Do you know if the cross member mounting is in the same location as my original FMX?

Answers

January 10, 2012
John
Part number 57453103 From the front of the AOD transmission to the center of the mount cushion is 22 5/16” for comparison to your FMX transmission.
