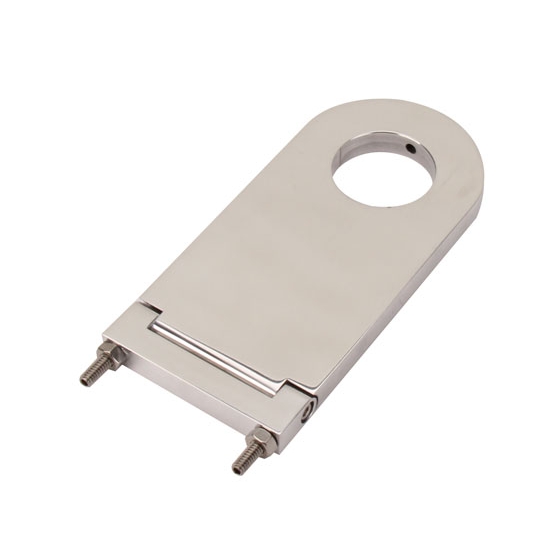

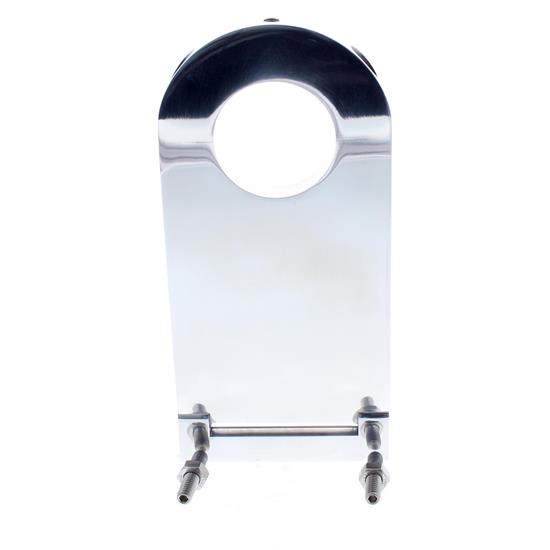

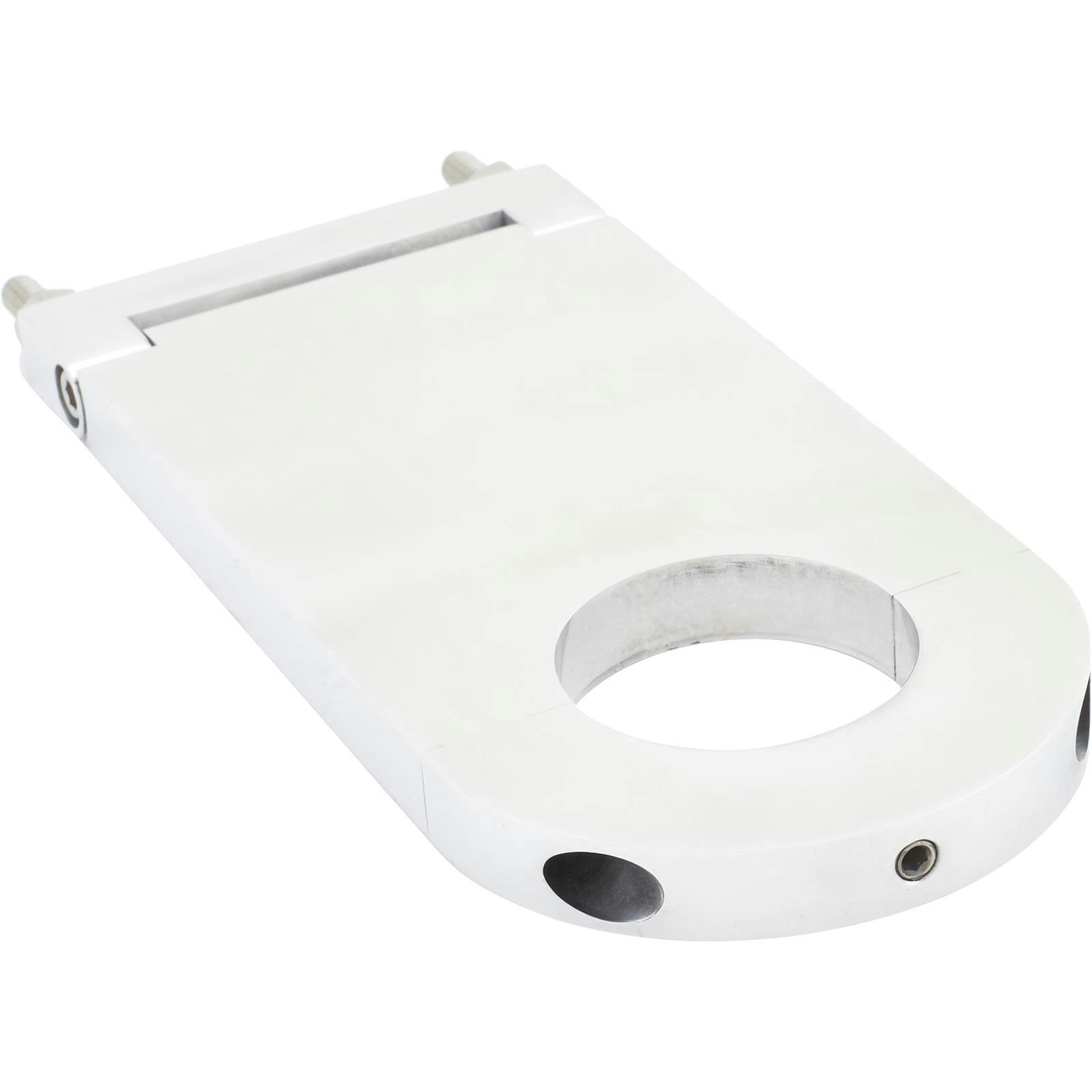

Speedway Steering Column Drop Mount, 1-3/4 Inch Hole, 5-1/2 Inch Drop

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Polished
Inside Diameter:
1.75
Drop:
5.50
Speedway Steering Column Drop Mount, 1-3/4 Inch Hole, 5-1/2 Inch Drop
Speedway Steering Column Drop Mount, 1-3/4 Inch Hole, 5-1/2 Inch Drop
Speedway Steering Column Drop Mount, 1-3/4 Inch Hole, 5-1/2 Inch Drop

Click image to enlarge

Details

Reviews (7)

Q & A (0)

What's in the Box

Info

These billet polished aluminum column drops fit Speedway Nostalgia columns, Hot Rod columns, our stainless steel columns, or your custom 1-3/4" O.D. column. Mount hole spacing is 2-7/8". For these swinger style drops, the underdash nuts & bolts are included. Each swinger drop has two hex screws on either side that when unscrewed will detach the lower half of the mount to slide your column through.  A hinge at the upper end allows multiple choices of mounting angles.

  • 1-3/4 Inch diameter hole
  • 5-1/2 Inch drop
  • 2-7/8" mount hole spacing
  • Two screws on either side will detach to slide your column through
  • Polished aluminum construction
  • Nuts & bolts are included

Note: Column drop lengths are measured from the centerline of the column to the column drop mount surface.
