Speedway Starter Switch Panel

Specs
Overall Height:
4.500
Overall Width:
2.625
Sold in Quantity:
Each
Positions:
Two
Amperage:
25
Voltage:
12
Notes
Includes 14 gauge wires.

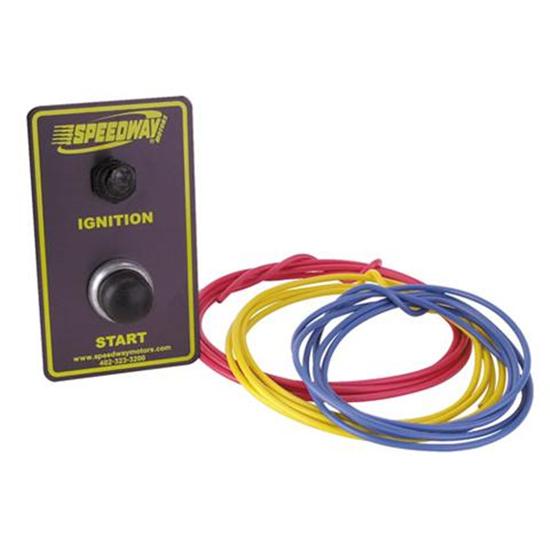

Speedway Starter Switch Panel
Speedway Starter Switch Panel

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Start your engine by flicking a switch and depressing a starter button. This starter switch panel is designed to stand up to rough racing conditions and is fully waterproof.

  • Panel measures 2-5/8" x 4-1/2"
  • Includes three 14 gauge wires (5 ft. each)

913-64385 Instructions (PDF)

You may also be interested in:

Painless Wiring 80529 Ignition Switch
SKU-91012209


Panel mount switch with Off/On/Start positions. Rated at 20 amps. Also features a waterproof outer lock nut.

  • Switch positions:
    • Accessory - Left
    • Lock/Off - Center
    • On - Right
    • Start - Far Right
  • Red lead = power-in
  • Pink lead = power to coil/ignition
  • Purple lead = power to starter soleniod
  • Brown lead = power to accessories/circuits

Ignition Switch Wiring Instructions (PDF)

AFCO 85010B Afco Starter Switch Panel, 3 x 4 Inch
SKU-10685010B


AFCO starter switch panels are for standard ignitions.

Wiring Instructions (PDF)

AFCO 85011B Starter Switch Panel with Light, 3 x 4 Inch
SKU-10685011B


AFCO switch panels are for standard ignitions.

Wiring Instructions (PDF)

AFCO 85053B Starter Switch Panel with Lights, 4-1/8 x 5-7/8 Inch
SKU-10685053B


AFCO starter switch panels are for standard ignitions.

Wiring Instructions (PDF)

Keep It Clean Switch Panel
SKU-91029085

  • Push button start
  • Battery kill switch
  • 3 Heavy duty accessory toggle switches with cover
  • Aluminum mounting plate
  • Indicator lights
  • Measures 7.5" x 2.5"
Longacre 44621 Composite Starter Switch Panel
SKU-47544621

This composite starter switch panel is made of lightweight molded ABS featuring a carbon fiber pattern that matches Longacre's new composite gauge panels. The starter panel features a high capacity ignition switch with a waterproof cover and pilot light. The starter button also includes a rubber switch boot to seal out moisture.
  • Great looking Composite Panel - Lightweight molded ABS with a carbon fiber pattern
  • Matches Longacre's new Composite Gauge Panels
  • High capacity ignition switch with weatherproof cover and pilot light
  • Starter button with rubber switch boot to seal out moisture
  • Assembled and wired, 40 amp @ 12v DC
  • Plugs into Longacre wiring harness (not included)
  • Pre-wired with high insulation 'Fat' wires and soldered terminals with heat shrink seals
Longacre 44623 Composite Carbon Fiber Starter Switch Panel w/ Cover
SKU-47544623

This composite starter switch panel is made of lightweight molded ABS featuring a carbon fiber pattern that matches Longacre's new composite gauge panels. The starter panel features a high capacity ignition switch with a aircraft style cover. The ignition switch is easy to turn off in an emergency but will not turn off from vibrations. Starter button has a rubber switch boot to seal out moisture.
  • Great looking Composite Panel - Lightweight molded ABS with a carbon fiber pattern
  • Matches our new Composite Gauge Panels
  • High capacity ignition switch with aircraft style cover - Easy to turn off in an emergency from any angle, even with gloves. Will not turn off from vibration.
  • Starter button with rubber switch boot to seal out moisture
  • Assembled and wired, 40 amp @ 12v DC
  • Plugs into Longacre wiring harness (not included)
  • Pre-wired with high insulation 'Fat' wires and soldered terminals with heat shrink seals
Longacre 44891 Carbon Fiber Starter Switch Panel w/ Acc Switches
SKU-47544891

This composite starter switch panel is made of lightweight molded ABS featuring a carbon fiber pattern that matches Longacre's new composite gauge panels. The starter panel features a high capacity ignition switch with a waterproof cover and pilot light. Panel also includes two accessory switches that also have rubber switch covers and pilot lights.
  • Great looking Composite Panel - Lightweight molded ABS with a carbon fiber pattern
  • Matches our new Composite Gauge Panels
  • High capacity ignition switch with weatherproof cover and pilot light
  • Starter button with rubber switch boot to seal out moisture
  • 2 accessory switches with rubber switch covers and pilot lights
  • Assembled and wired, 40 amp @ 12v DC
  • Plugs into Longacre wiring harness (not included)
  • Pre-wired with high insulation 'Fat' wires and soldered terminals with heat shrink seals
Longacre 44893 Carbon Fiber Starter Switch Panel w/ Cover & Switches
SKU-47544893


This composite panel is made of lightweight molded ABS featuring a carbon fiber pattern that matches Longacre's new composite gauge panels. The starter panel features a high capacity ignition switch with aircraft style cover. Ignition switch allows for easy turn off in case of in emergency as well as prevents turn off by vibrations. Panel also includes two accessory switches that also have rubber switch covers and pilot lights.

  • Great looking Composite Panel - Lightweight molded ABS with a carbon fiber pattern
  • Matches our new Composite Gauge Panels
  • High capacity ignition switch with aircraft style cover - Easy to turn off in an emergency from any angle, even with gloves. Will not turn off from vibration.
  • Starter button with rubber switch boot to seal out moisture
  • 2 accessory switches with rubber switch covers and pilot lights
  • Assembled and wired, 40 amp @ 12v DC
  • Plugs into Longacre wiring harness (not included)
  • Pre-wired with high insulation 'Fat' wires and soldered terminals with heat shrink seals
Longacre 44897 Carbon Fiber Starter Switch Panel, Cover/Master Switch
SKU-47544897


This composite panel is made of lightweight molded ABS featuring a carbon fiber pattern that matches Longacre's new composite gauge panels. The starter panel features a high capacity ignition switch with a aircraft style cover. The ignition switch is easy to turn off in an emergency but will not turn off from vibrations. Starter button has a rubber switch boot to seal out moisture. Manual battery disconnect switch features a bright red panel for easy disconnect during an emergency.

  • Great looking Composite Panel - Lightweight molded ABS with a carbon fiber pattern
  • Matches our new Composite Gauge Panels
  • High capacity ignition switch with weatherproof cover and pilot light
  • Starter button with rubber switch boot to seal out moisture
  • Assembled and wired, 40 amp @ 12v DC
  • Plugs into Longacre wiring harness (not included)
  • Pre-wired with high insulation 'Fat' wires and soldered terminals with heat shrink seals
  • Manual battery disconnect switch with a bright red handle
  • Easier to find in an emergency
  • Prevents battery drain
  • 175 amp continuous rating, 6-36 volt, 1000 peak
Longacre 44611 Flip-Up Start/Ignition Switch Panel w/Pilot Light
SKU-47544611
                        These high capacity (40 amp at 12 volts) ignition switch panels with aircraft style cover and pilot light are easy to turn off in an emergency from any angle, even with gloves. Will not turn off from vibration. They come pre-wired with high insulation "Fat" wires and soldered terminals with heat shrinked seals.
  • Starter button with weatherproof cover
  • Lightweight aluminum panel
  • Plugs into Longacre wiring harness P/N 44930
  • Ignition Switch:
    • Style:    Toggle
    • Cover:    Aircraft style flip
    • Pilot Light Included:   Yes
    • Rating:    40 amps @ 12 volts
  • Starter Switch:
    • Style:    Push button
    • Cover:    Weatherproof rubber
    • Rating:    15 amps @ 12 volts resistive
  • Panel:
    • Material:    Lightweight aluminum
    • Panel Dimensions:   3-1/2" x 3-1/2"
    • Wiring Included:    Yes
Longacre 44661 Flip-Up Start/Ignition Panel w/ 1 ACC and Pilot Light
SKU-47544661
                        These high capacity (40 amp at 12 volts) ignition switch panels with aircraft style cover and pilot light are easy to turn off in an emergency from any angle, even with gloves. Will not turn off from vibration. They come pre-wired with high insulation "Fat" wires and soldered terminals with heat shrinked seals.
  • Starter button with weatherproof cover
  • Lightweight aluminum panel
  • Plugs into Longacre wiring harness P/N 44930
  • Ignition Switch:
    • Style:    Toggle
    • Cover:    Aircraft style flip
    • Pilot Light Included:   Yes
    • Rating:    40 amps @ 12 volts
  • Starter Switch:
    • Style:    Push button
    • Cover:    Weatherproof rubber
    • Rating:    15 amps @ 12 volts resistive
  • Accessory Switch:
    • Quantity Included:    1
    • Style:    Toggle
    • Cover:    Silicon rubber
    • Pilot Lights Included:    Yes
    • Rating:    40 amps @ 12 volts
  • Panel:
    • Material:    Lightweight aluminum
    • Panel Dimensions:   3-1/2" x 3-1/2"
    • Wiring Included:    Yes
Longacre 44831 Start/Ignition Panel w/WP Switch Covers and Pilot Light
SKU-47544831
                        These high capacity (40 amp at 12 volts) ignition switch panels with weatherproof cover and pilot light are easy to turn off in an emergency from any angle, even with gloves. Will not turn off from vibration. They come pre-wired with high insulation "Fat" wires and soldered terminals with heat shrinked seals.
  • Starter button with weatherproof cover
  • Lightweight aluminum panel
  • Ignition Switch:
    • Style:    Toggle
    • Cover:    Silicon rubber
    • Pilot Light Included:   Yes
    • Rating:    40 amps @ 12 volts
  • Starter Switch:
    • Style:    Push button
    • Cover:    Weatherproof rubber
    • Rating:    15 amps @ 12 volts resistive
  • Panel:
    • Material:    Lightweight aluminum
    • Panel Dimensions:   3-1/2" x 3-1/2"
    • Wiring Included:    Yes
Longacre 48115 Deluxe Racing Battery Cable Kit
SKU-47548115
                        These kits are perfect for high output racing applications but will work with just about anything. They are designed for use with top post battery terminals and come complete with disconnect switch and heavy duty ground cable.  Installer must cut cable to desired lengths and then solder on the terminal ends provided.
  • 133 strand 1/0 pre-cut cables for entire system
  • Ends are factory soldered for a quick, simple installation
  • Includes solenoid and battery disconnect switch with panel
  • Starter cable is heat protected with Firebraid
  • Includes heavy duty 14" ground strap and all cables from battery to switch
  • Battery cable provided is 12.5 ft in length
