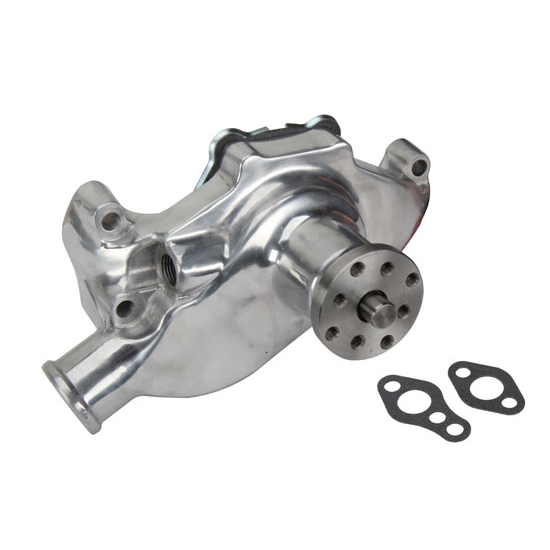

Speedway Small Block Chevy Short Aluminum Water Pump, Polished

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Polished
Water Pump Style:
Short
Water Pump Type:
Mechanical
Heater Inlet Size:
1/2" NPT
Gasket(s) Included:
Yes
Hardware Included:
No
Shaft Diameter:
0.63
Mounted Length:
6.13
Shaft Length:
0.53
Hose ID:
1.75
Weight:
5.65
Notes
Clearance from back of pump to engine block mount is .88"
Speedway Small Block Chevy Short Aluminum Water Pump, Polished
Speedway Small Block Chevy Short Aluminum Water Pump, Polished
Speedway Small Block Chevy Short Aluminum Water Pump, Polished

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Speedway Short Aluminum water pumps flow 35 gallons per minute at 4,000 RPM, with minimal cavitation and proportionally increased flow rates at 5,000 RPM and above. Equalized water flow distribution and pressure-balanced water passages minimize internal engine hot-spots making these pumps an excellent alternative for not only light duty racing, but also marine, trucks, towing, and motorhome applications. Cruisers and hot rodders will appreciate the improved cooling at low speeds.

"Short" style pumps came on all factory small block V8s from 1955 to 1968. However, this pump will fit all S/B Chevys up to 1985.

910-15545 Instructions (PDF)

Learn how to choose the correct water pump for your application by reading our tech article.  SBC - Short vs Long Water Pump.

Item Details

5/8" pilot

Notes

  1. Not to be used on engines that exceed 5500 rpm. It is better suited to street use than serious racing use.
  2. This pump does not have a set screw to positively retain the hub like a race pump.

Customer Reviews

Rated 4.3 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Wulf
Verified Purchaser
Verified Reviewer
TN

Packaging is not good

October 21, 2015
This pump looks pretty good. I have not finished my build yet so I cannot say how well it operates. I will say that the packaging from the manufacturer is terrible and leaves the pump very unprotected in the box. I had to send the forst one back as it incurred damage during shipping due to the lousy packaging. If you get one be sure to inspect very carefully!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

1957 Chevy Man
Verified Purchaser
West Virginia

A great product from Speedway, as usual.

October 04, 2015
Quick delivery and quality parts is why I keep coming back to Speedway.
Pros:
  • Beautiful Polished Finish
  • Great instructions
  • Reliable Performance
Cons:
  • None That I Can Think Of
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Allhands
Verified Purchaser
Danville, IL, USA

quality item

August 31, 2014
great fit , nice appearance , great price , super fast shipping , thank you
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 4 answers

2 answers

what are hole centers?

silverado
Poestenkill, NY, USA
April 01, 2013

what are hole centers?

Answers

September 01, 2014
Allhands
holes on the pump lines up with holes on the block
April 02, 2013
Jason
This small block chevy water pump has dual 4 bolt patterns for pulley. They are 1-1/4" and 1-1/2" center to center on mounting holes.
1 answers

pilot shaft size 1/2 or 5/8 inch? Need pump to fit stock 57 Chevy fan blade and water pump pulley both use 1/2 inch pilot shaft (snout).

gene
Houston Texas
December 16, 2012

pilot shaft size 1/2 or 5/8 inch? Need pump to fit stock 57 Chevy fan blade and water pump pulley both use 1/2 inch pilot shaft (snout).

Answers

December 17, 2012
Jason
This pump has a 5/8" shaft diameter. Sorry, we do not currently offer a pump with a 1/2" shaft.
1 answers

DO YOU HAVE A CRANK AND WATERPUMP PULLEY KIT FOR GEN I 350 SBC FOR THIS WATERPUMP, THIS IS FOR A GM 350/290 HP CRATE ENGINE

ALLEN
WARMINSTER, PA
February 23, 2011

DO YOU HAVE A CRANK AND WATERPUMP PULLEY KIT FOR GEN I 350 SBC FOR THIS WATERPUMP, THIS IS FOR A GM 350/290 HP CRATE ENGINE

Answers

February 28, 2011
Waymon
Yes we sell the 1-1 Pulley Combo - Short Pump, Item #: 91015464
Page 1 of 1
