Speedway Rear Disc Brake Kit with Emergency Brake, 1.94 Inch Backspace

SAME DAY SHIPPING! Order within the next 14 hours 7 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Caliper Finish:
Natural
Rotor Construction:
Vented
Rotor Diameter:
11.75
Rotor Hat Bolt Pattern:
8 x 7.00"
Bolt Pattern:
Multi: 5 on 5"/4.75"/4.50"
Caliper Pistons:
Single
Rotor Location:
Rear
Rotor Shape:
Round
Thread Pitch:
7/16"-20
Hardware Included:
Yes
Parking Brake Provision:
Yes
Garage Sale:
No
Drilled:
No
Slotted:
No
Centerline of Holes:
5.50
Rotor Thickness:
.81
Rotor Backspace:
1.94
Notes

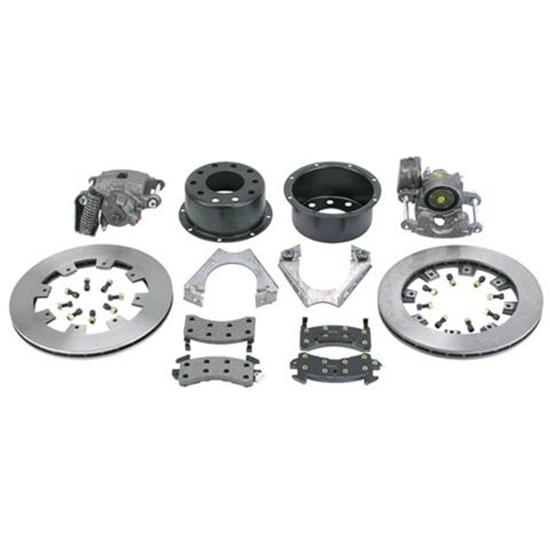

Includes rotors, rotor hats, caliper brackets, calipers, pads, and hardware.
Speedway Rear Disc Brake Kit with Emergency Brake, 1.94 Inch Backspace

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Replace those old drum brakes with modern rear disc brakes. This affordable rear disc brake kit conversion gives you an emergency brake just like your family car has. The steel caliper bracket welds to your 3" axle tube, so it will fit virtually any application. The calipers accept either GM or Lokar type E-brake cables and are tapped to accept the common 7/16"- 20 banjo fittings. The 11-3/4" x .81" vented iron rotors will give you plenty of stopping power.

Wilwood aluminum rotor hat fits 5 on 4-1/2", 5 on 4-3/4", and 5 on 5" bolt patterns and has a 1.94" backspace.

NSRA Legal

910-31934 Instructions (PDF)

Customer Reviews

This product has no reviews.

Product Q&A

5 questions : 5 answers

1 answers

is there an option for big ford flange in addition to welded i have a 9" ford rear in my chevelle i am converting to disc brakes i see you offer a two piece rotor with steel brake rotor hats which i assume is lighter then an all iron rotor? I was wondering if you sell this kit with bolt on big ford flanges instead of weld on flanges any more details on the system would be much appreciated

Joe68
Perth Amboy, NJ 08861, USA
February 15, 2015

is there an option for big ford flange in addition to welded i have a 9" ford rear in my chevelle i am converting to disc brakes i see you offer a two piece rotor with steel brake rotor hats which i assume is lighter then an all iron rotor? I was wondering if you sell this kit with bolt on big ford flanges instead of weld on flanges any more details on the system would be much appreciated

Answers

February 16, 2015
Tech
Yes you can use part number 910-31921 which is a bolt on kit for the 9" Ford big bearing housing.
1 answers

Will this fit a stock 12 bolt diff. 57 chevy 3100 truck?

stuniska
Canada
August 26, 2014

Will this fit a stock 12 bolt diff. 57 chevy 3100 truck?

Answers

August 26, 2014
EricM
This brake kit is for axles with 5 bolt lug patterns and if your pickup has not been altered it would have a 6 lug pattern, therefore the kit will not work. We apologize that currently we do not have a 6 lug brake kit for your application.
1 answers

Will this fit an 8" ford with 3" between housing flange and buggy spring mount? I have read that some kits will not fit if the buggy spring mount is too close to the flange. Also, is 1.94" the minimum axle offset? It looks like mine is 2.25".

JScott30A
Iowa
May 02, 2014

Will this fit an 8" ford with 3" between housing flange and buggy spring mount? I have read that some kits will not fit if the buggy spring mount is too close to the flange. Also, is 1.94" the minimum axle offset? It looks like mine is 2.25".

Answers

May 05, 2014
EricM
The rotor hat itself has 1.94 offset and is the common one used for housings of 2 1/4" to 2 1/2" axle offset. The steel hat version has a deeper offset of 3” and will have problems with caliper clearance with your buggy spring mount.
1 answers

will this fit a 85 c10 truck?

Pres-10
joplin, mo
June 04, 2015

will this fit a 85 c10 truck?

Answers

June 04, 2015
Eric
Expert
This is a universal weld on brake kit. It will fit any vehicle that the brake hat offset of 1.94" is appropriate for. Also the axle flange can be no larger than 6.14" as well as the axle register can be no larger than 3.06"
1 answers

Will this kit fit 72 nova 10 bolt 8.5 with staggered shocks and can I reuse factory brake cables

Stephen
knoxville tn
June 09, 2015

Will this kit fit 72 nova 10 bolt 8.5 with staggered shocks and can I reuse factory brake cables

Answers

June 09, 2015
Eric
Expert
This brake kit uses 1.94" backspace brake hats. Take some measurements for clearance on your Nova to be sure it will fit. You should be able to reuse your factory emergency brake cables as long as they can be routed correctly to meet up with the caliper.
Page 1 of 1
