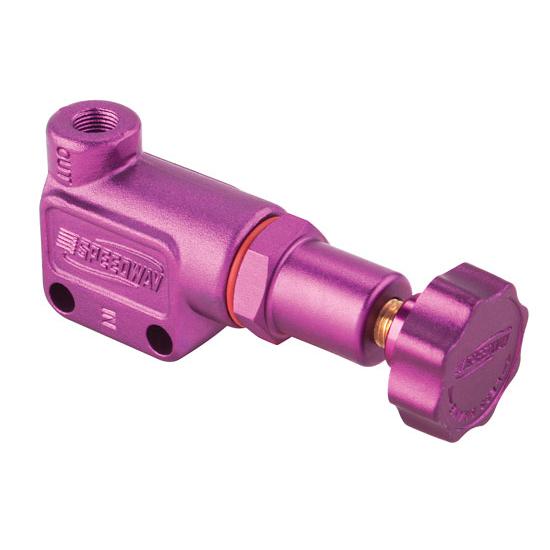

Speedway Purple Proportioning Valve

SAME DAY SHIPPING! Order within the next 16 hours 20 minutes and receive same day shipping

Specs
Centerline of Holes:
1.00
Material Type:
Aluminum
Overall Width:
1.25
Overall Length:
4.25
Sold in Quantity:
Each
Overall Thickness:
1.64
Finish:
Anodized
Outlet Fitting:
1/8" NPT
Garage Sale:
No
Notes

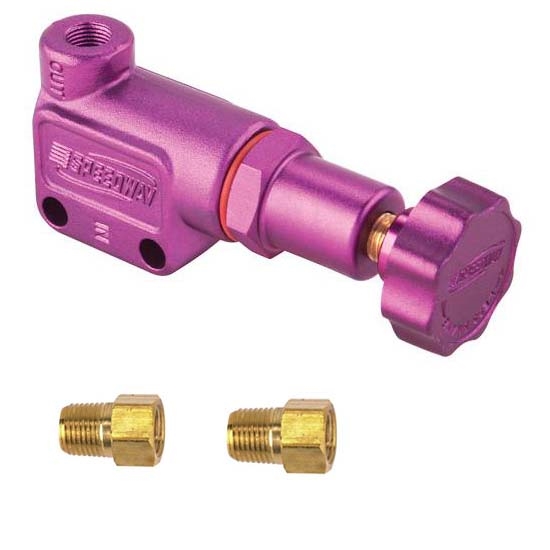

Includes (2) 1/8" NPT to 3/8"-24 IFF adapters.
Speedway Purple Proportioning Valve
Speedway Purple Proportioning Valve
Speedway Purple Proportioning Valve
Product Video
Speedway Purple Proportioning Valve

Click image to enlarge

Watch the video below to learn more about the differences in brake lines, flare types and fittings you may want to consider before plumbing away on your current chassis project.

Details

Reviews

Q & A

What's in the Box

Allows easy adjustment of front-to-rear brake bias. Universal design works on all race cars. Has a 100 to 1500 psi range with up to 57 percent pressure reduction.

Includes two 1/8"-27 NPT to 3/8"-24 inverted flare fittings.

Brake System Builder's Tip (Link)

Customer Reviews

Rated 4.9 out of 5 by 10 reviewers.
RATING BREAKDOWN
10 reviews
5 Stars
9
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Kdorfner
Verified Purchaser
Verified Reviewer
DeBary, Fl.

A must have

May 31, 2015
I use this on my cars when installing disc/drum brakes to keep the rears from locking up before the fronts. I have used this valve on a few cars I have built without a problem.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

henry23t
Sunnyvale Ca. USA

speedway proportioning valve

October 01, 2014
if you add a 4 way dish brake system on your car. then you will need a adjustable proportioning valve like the speedway proportioning valve. or changing a front drum to a dish brake. thenn you will need it..
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ford84stepside
Berry, AL 35546, USA

Seems to do the trick

July 19, 2014
Installed easy, seems to do what it's supposed to do.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

tweaty2
Citrus Heights, CA, USA

Great product at a Speedway great price.

January 05, 2014
I have used the Speedway proportioning valve on over a dozen streetrod brake systems. Easy installation and adjustment.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

tweaty2
Citrus Heights, CA, USA

Great product at a Speedway great price.

January 05, 2014
I have used the Speedway proportioning valve on over a dozen streetrod brake systems. Easy installation and adjustment.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Gerard

Great Quality!

October 01, 2013
Top notch quality and less expensive than the similar Wilwood prop valve!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

dawg
Honey Brook, PA 19344, USA

great product

September 26, 2013
i got one for my tbucket it worked just how they said it would in the product discription and was very easy to install
Pros:
  • Easy To Install
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Modelacruzer
Verified Purchaser
Porterville, CA

Looks to be a quality piece.

June 20, 2012
Easy brake adjustment with little effort.
Pros:
  • Easy To Install
  • Lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

JT
Verified Purchaser
Northport NY

Well made and did the job at 25% less $

February 27, 2011
Easy install
Pros:
  • Lightweight
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dave
Madison, SD

Great product!!!

March 15, 2010
Works great and very reasonably priced!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 9 answers

1 answers

Running a proportioning valve My master cylinder is mounted on the fire wall the high point of my braking system. Do I still need to run a proportioning valve when changing from front drum to disc brakes? Do I need to run the pressure residual valves also?

leeslakehouse
lakehead
January 19, 2015

Running a proportioning valve My master cylinder is mounted on the fire wall the high point of my braking system. Do I still need to run a proportioning valve when changing from front drum to disc brakes? Do I need to run the pressure residual valves also?

Answers

January 20, 2015
EricM
Since your master cylinder is mounted up high you will not need residual valves. A proportioning valve such as this one should be used in the brake line going to the rear brakes so that you can reduce the amount of braking at the rear and have a balanced braking system. When adjusted correctly the car will stop straight (no fish tailing) and all four wheels will lock up at a similar time.
1 answers

Putting two proportioning valves in the brake system. Had the brake lines done by someone else and he recommended to put a valve in both front and rear brake lines. Was this a good idea or not? I see in your example only one in rear.

Odies27
Tucson, AZ
May 28, 2014

Putting two proportioning valves in the brake system. Had the brake lines done by someone else and he recommended to put a valve in both front and rear brake lines. Was this a good idea or not? I see in your example only one in rear.

Answers

May 29, 2014
EricM
There is no need, nor do we recommend installing a proportioning valve in the front line.
1 answers

Can I mount the valve in the cab of my truck (56 chevy) above the brake lines and master cylinder will the brakes bleed above the brake lins

rbo77
ohio
December 31, 2013

Can I mount the valve in the cab of my truck (56 chevy) above the brake lines and master cylinder will the brakes bleed above the brake lins

Answers

December 31, 2013
EricM
You can mount the proportioning valve higher than the master cylinder but it may be tougher to bleed the air out of the lines. In extreme cases you may need to add a bleeder at the highest point if you mount the valve considerably higher than the master cylinder or brake calipers/drums.
1 answers

Bleeding brakes with this valve? Any special procedure to bleeding brakes with this valve in the system? All the way open, all the way closed, or doesn't it matter?

smckelvey
MD
October 09, 2013

Bleeding brakes with this valve? Any special procedure to bleeding brakes with this valve in the system? All the way open, all the way closed, or doesn't it matter?

Answers

October 09, 2013
Jason
The Speedway proportioning valve is not a full shut off, only up to 57% pressure reduction. Brakes can be bleed with valve in any position but we have found it works best with knob screwed all the way in, this has valve free flowing without restriction of line pressure.
3 answers

do you install this valve before or after the stop light switch?

Flying Bum
Huntingtown, Md
December 14, 2011

do you install this valve before or after the stop light switch?

Answers

January 06, 2014
tweaty2
Install the valve after the stop light switch. That way you have full pressure to the switch.
September 27, 2013
dawg
after
December 15, 2011
John
Part number 91031353 Normally the stop light switch is installed close to the master cylinder but not a definite requirement. The proportioning valve can be installed before or after and in either case will still allow the switch to operate properly.
2 answers

Writing on the adjustment knob refers to "Less Brake", is this referring to the rear drum brakes ?

DrBee
February 07, 2011

Writing on the adjustment knob refers to "Less Brake", is this referring to the rear drum brakes ?

Answers

September 27, 2013
dawg
yes
February 10, 2011
Jason
Yes, turning counter clockwise will reduce line pressure.
Page 1 of 1
